PENETRATION WITH FLANGE - (868.140.125FS)
×
![]()
Part Of the Series: Penetration-welding flange-steel
Type no.: 868.140.125FS
EAN no.: 5705499139648

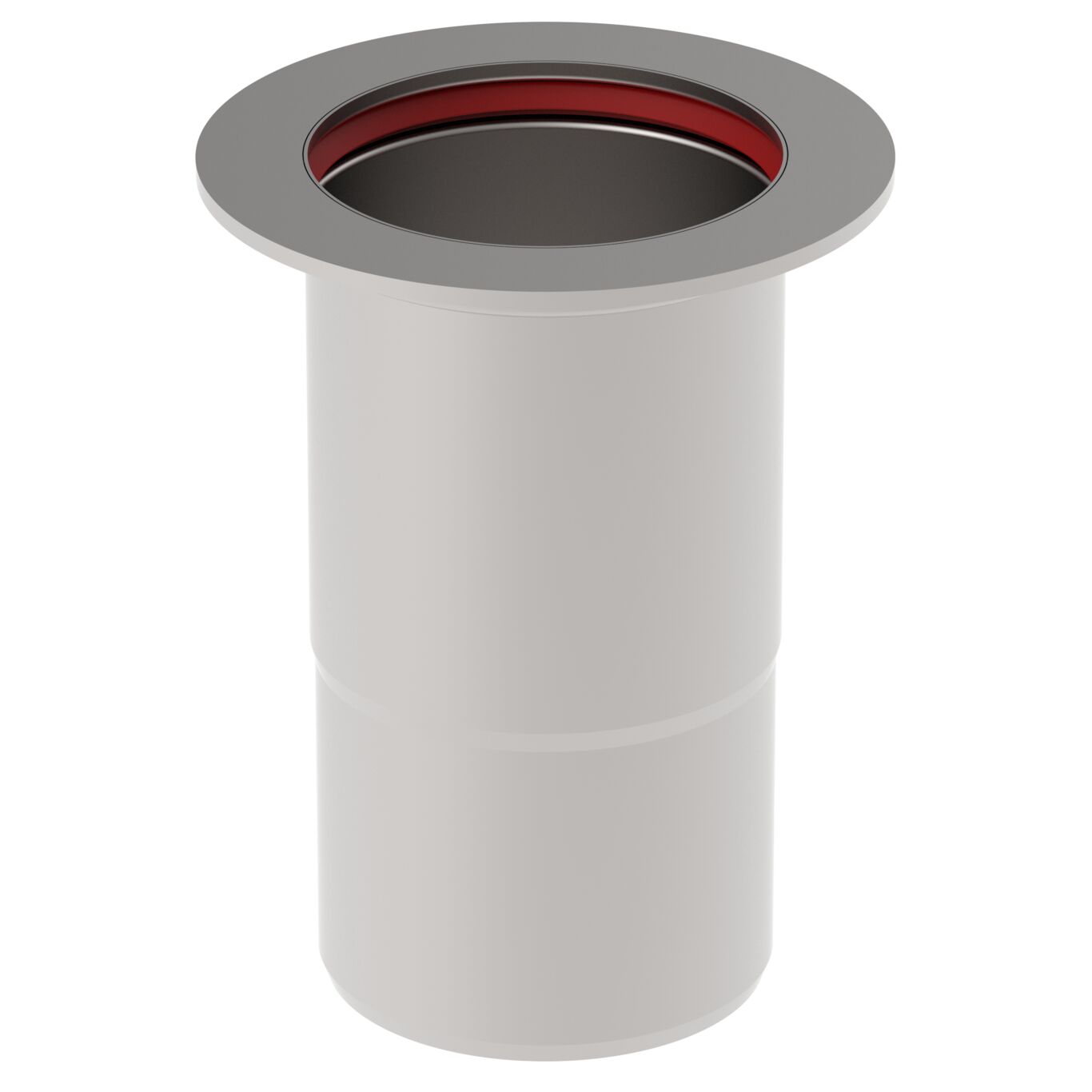

PENETRATION WITH FLANGE
-Diameter: Ø125mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI316L/EN1.4404

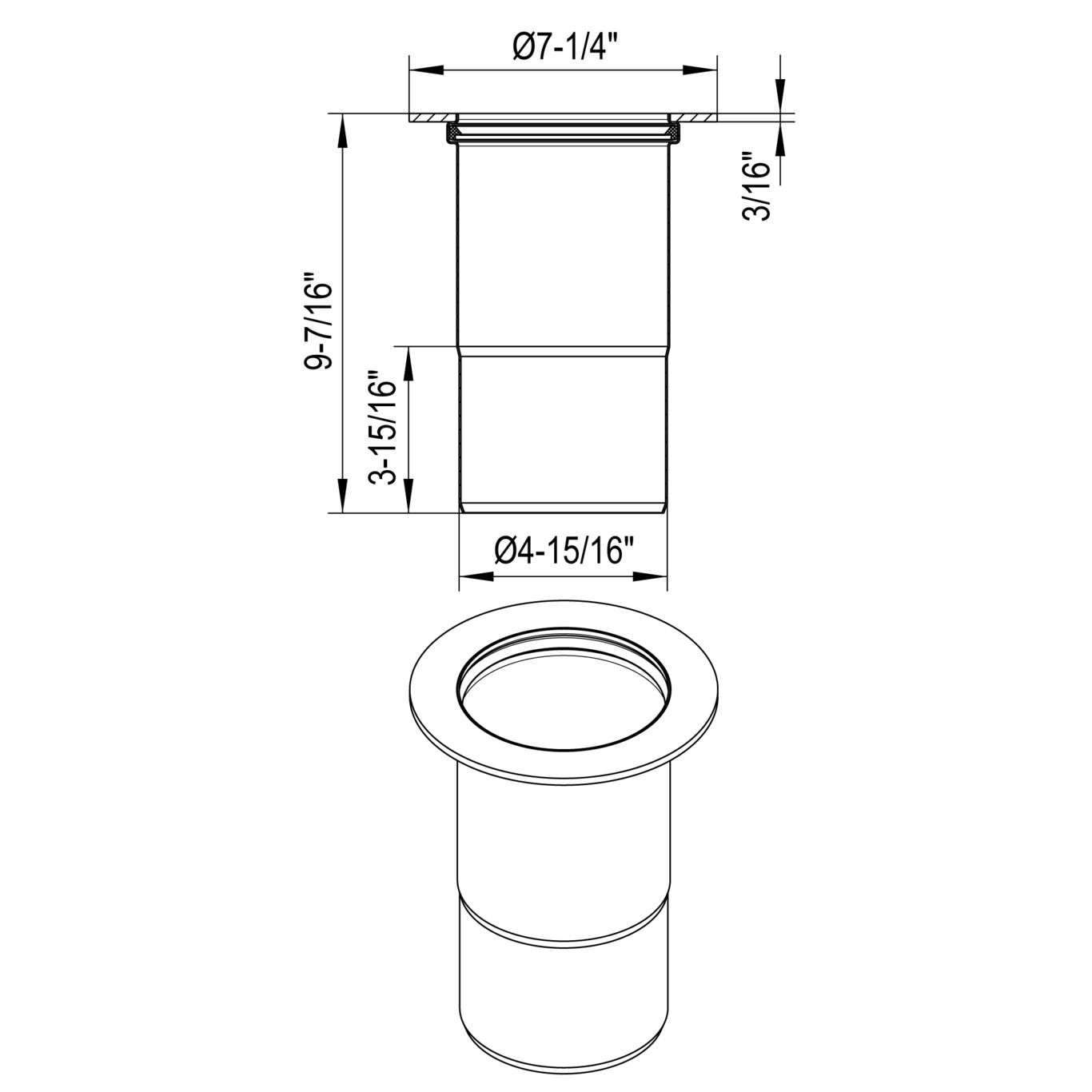

| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 100 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 240 |
| Outlet dia. (mm) | 125 |
| Outlet Diameter (Inch) | 5 |
| Weight (kg) | 1.36 |
| Weight (lbs) | 3 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB000016W, Rev8, Penetrations with SI sealing
BLÜCHER® EuroPipe EPD
HACCP Food Safety Programme - Australasia
DK - VA 2.42/19617-23
