PENETRATION WITH FLANGE - (868.115.075FS)
×
![]()
Part Of the Series: Penetration-welding flange-steel
Type no.: 868.115.075FS
EAN no.: 5705499411218
NRF no.: 2172784

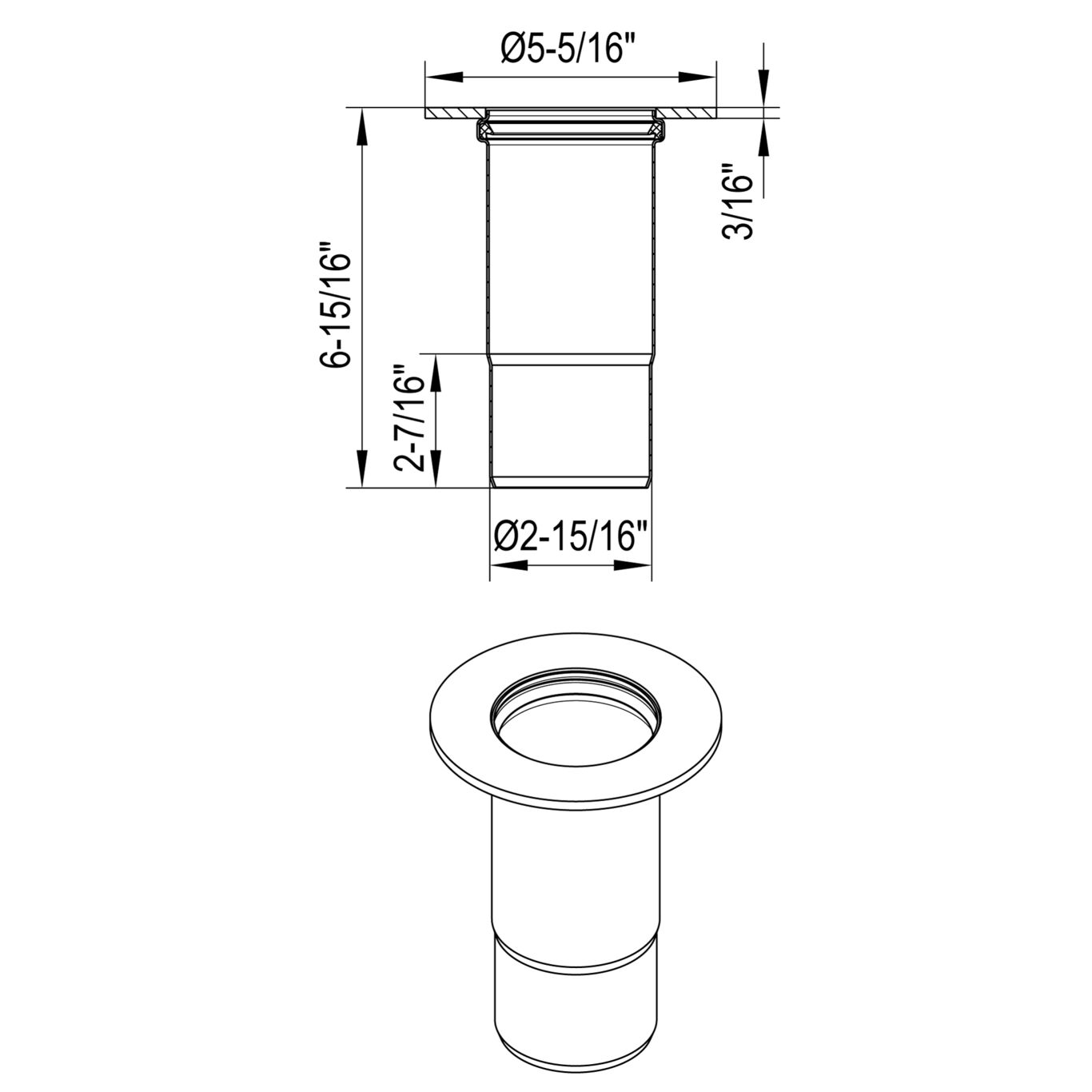

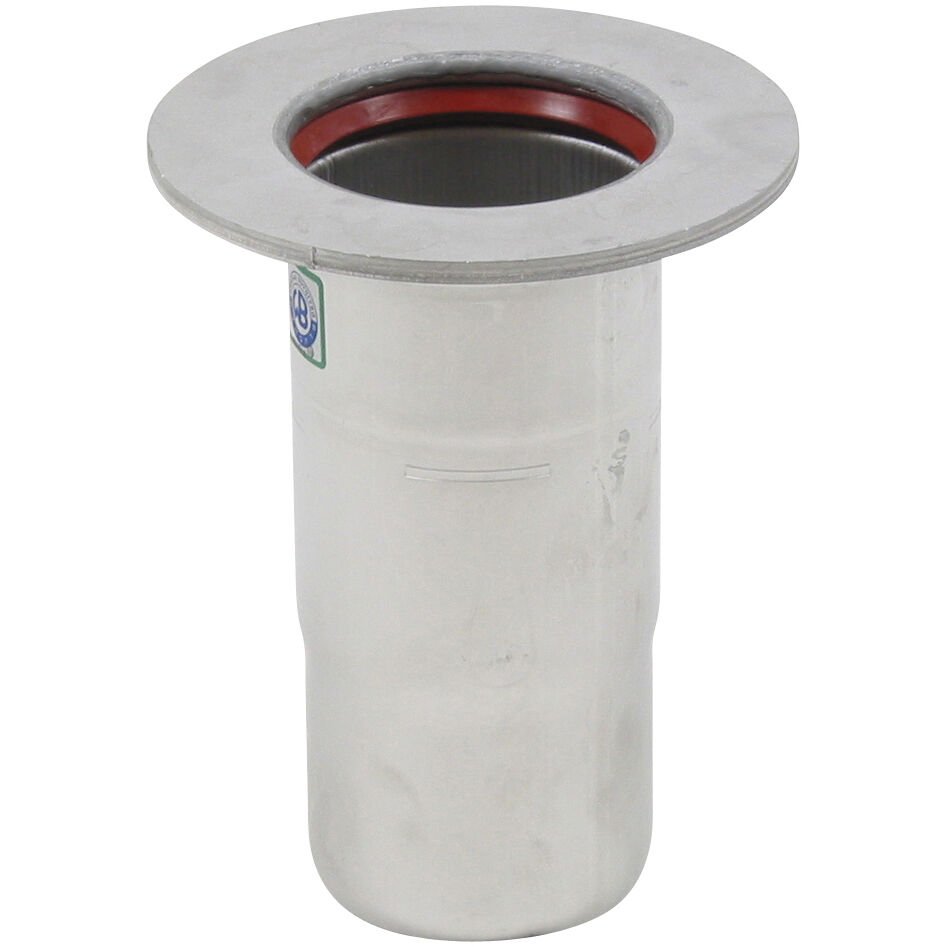

PENETRATION WITH FLANGE
-Diameter: Ø75mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 62 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 176 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Weight (kg) | 0.7 |
| Weight (lbs) | 1.54 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
Declaration of Conformity Welded penetrations
BLÜCHER® EuroPipe EPD
DK - VA 2.42/19617-23 DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings TÜRK LOYDU - 25041616077231247 ABS - LD1716353-PDA ClassNK - Type868, TA21160E(N)_21FPA12DA MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA KR - Type Approval CPH42135-PE001 RINA -MAC320524XG EuroPipe Achilles Certificate - 46702
