UPPER PART MARINE - (471.300.110 S)
×
![]()
Part Of the Series: Marine-upper part-155
Type no.: 471.300.110 S
EAN no.: 5705499106367
NRF no.: 3397032
Size: 155x155

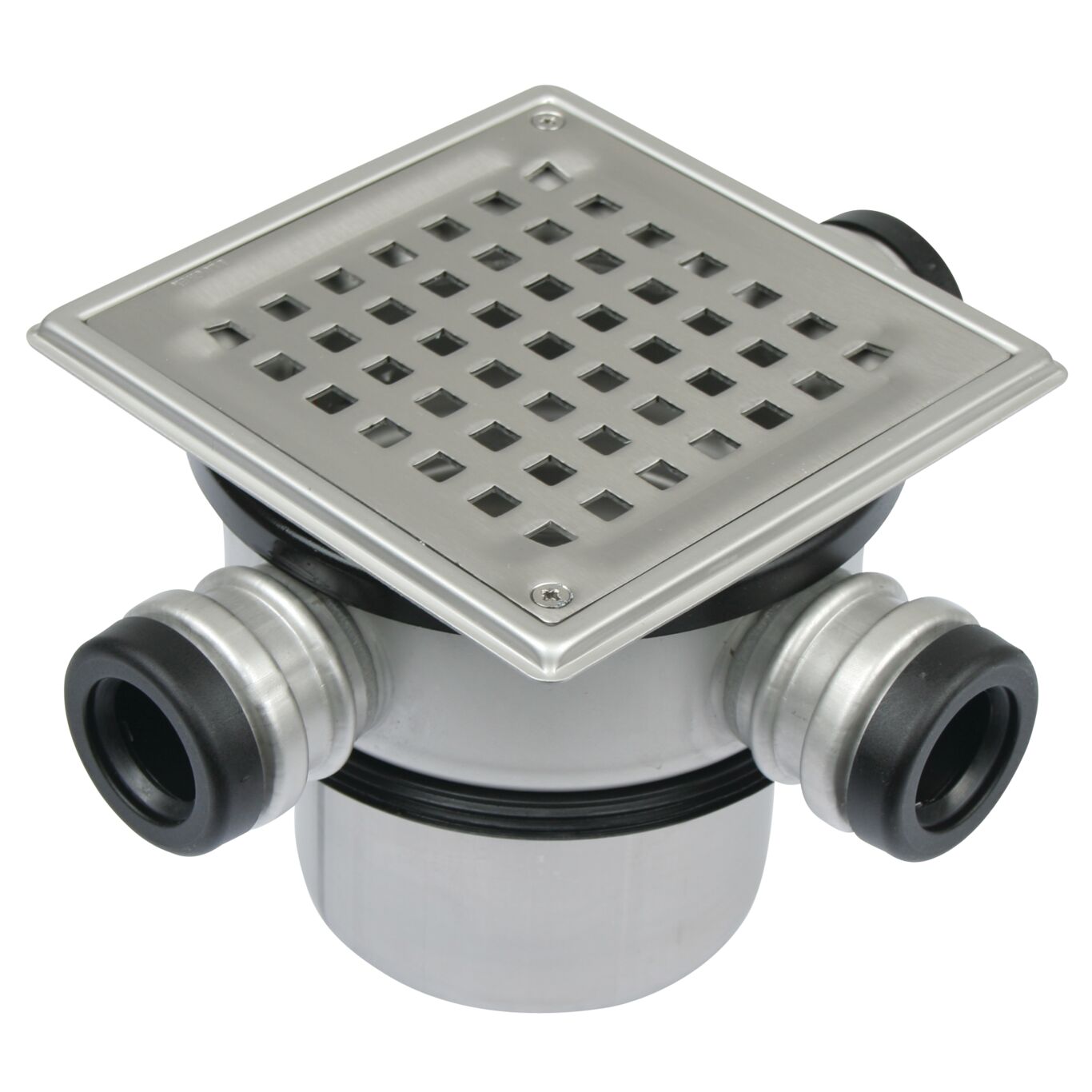

UPPER PART MARINE
-With side inlets
-Floor: tiled and wooden

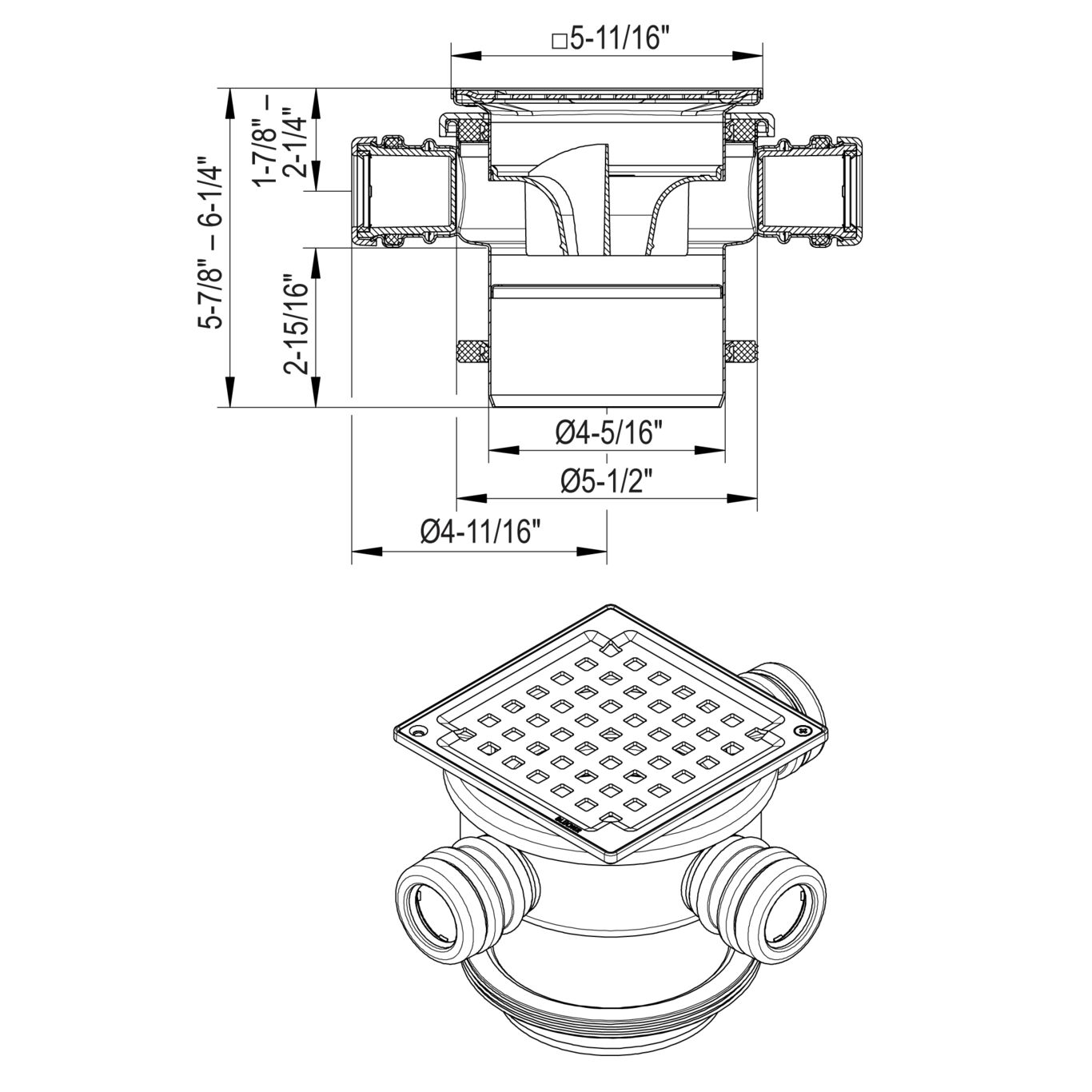

-Frame: 6-1/8 x 6-1/8 inch
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Tiled / Wooden |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Maximum Height (mm) | 160 |
| Minimum Height (mm) | 150 |
| Number of Inlets | 3 (Ø32/40mm) |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Shape | Square |
| Size (mm) | 155x155 |
| Size of Frame (Inch) | 6-1/8 x 6-1/8 |
| Weight (kg) | 3 |
| Weight (lbs) | 6.61 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB00000MA, Rev3 RINA -MAC320524XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas - 03456-H0 Achilles Certificate - 46702 KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA TÜRK LOYDU - 25041616077231247 ABS - LD1716353-PDA MARINE - R4547 NATO CODIFICATION SYSTEM
