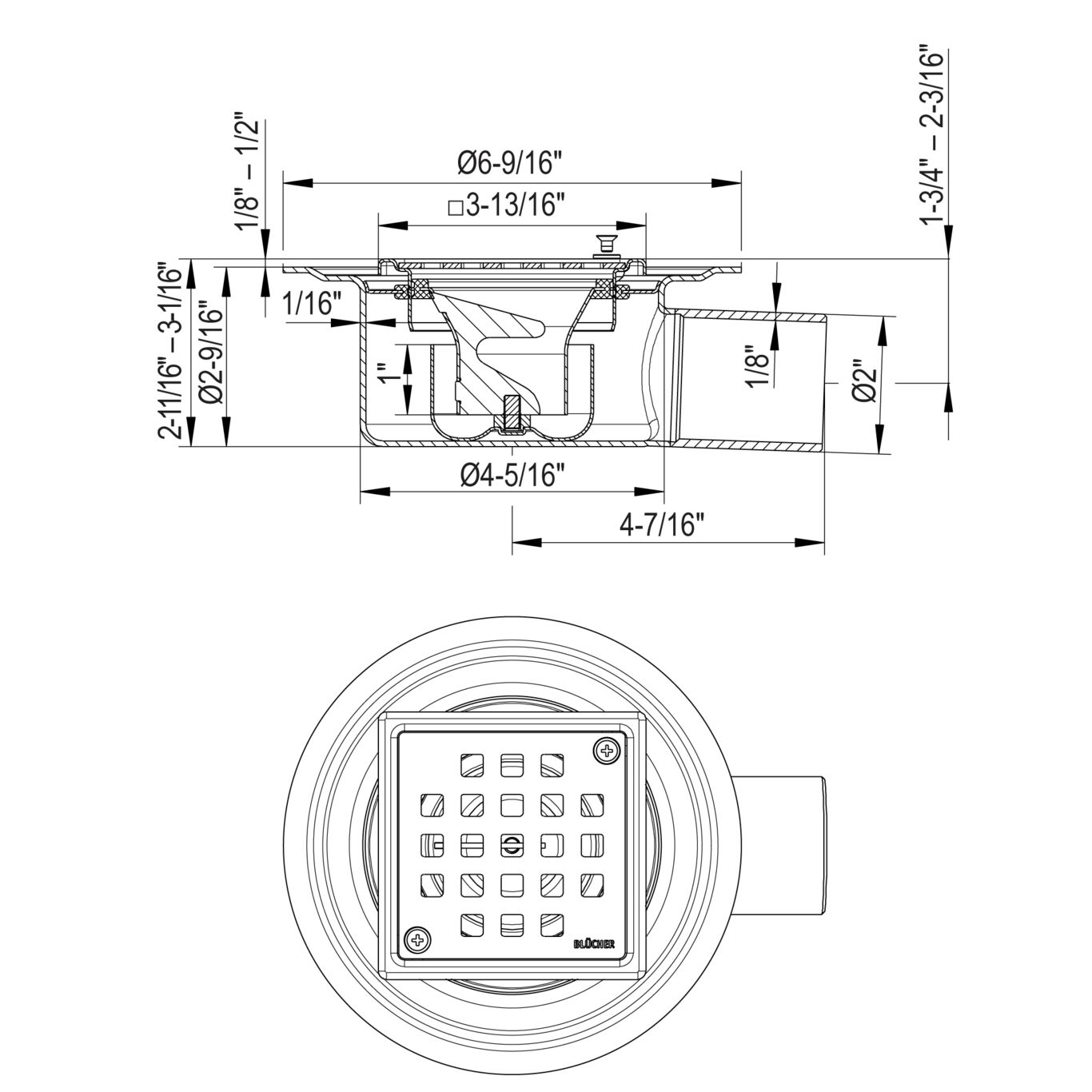

ADJUSTABLE CABIN DRAIN SQUARE - (491.200.050 VS)
×
![]()
Part Of the Series: Marine cabin drain-97
Type no.: 491.200.050 VS
EAN no.: 5705499131857
Size: 100x100
ADJUSTABLE CABIN DRAIN SQUARE
-With removable water trap
-Deck: steel & floor: tiled
-Outlet: Ø2 inch, horizontal
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Floor | Tiled |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Maximum Height (mm) | 78 |
| Minimum Height (mm) | 68 |
| Number of Inlets | 0 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Outlet Direction | Horizontal |
| Shape | Square |
| Size (mm) | 100x100 |
| Size of Frame (Inch) | 3-7/8 x 3-7/8 |
| Weight (kg) | 1.24 |
| Weight (lbs) | 2.73 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
BLÜCHER® Drains EPD
DNV - MEDB000016X, Rev1
