P-TRAP 87,5° - (525.090.125 S)
×
![]()
Part Of the Series: Water trap-p
Type no.: 525.090.125 S
EAN no.: 5705499117974
VVS no.: 160381425

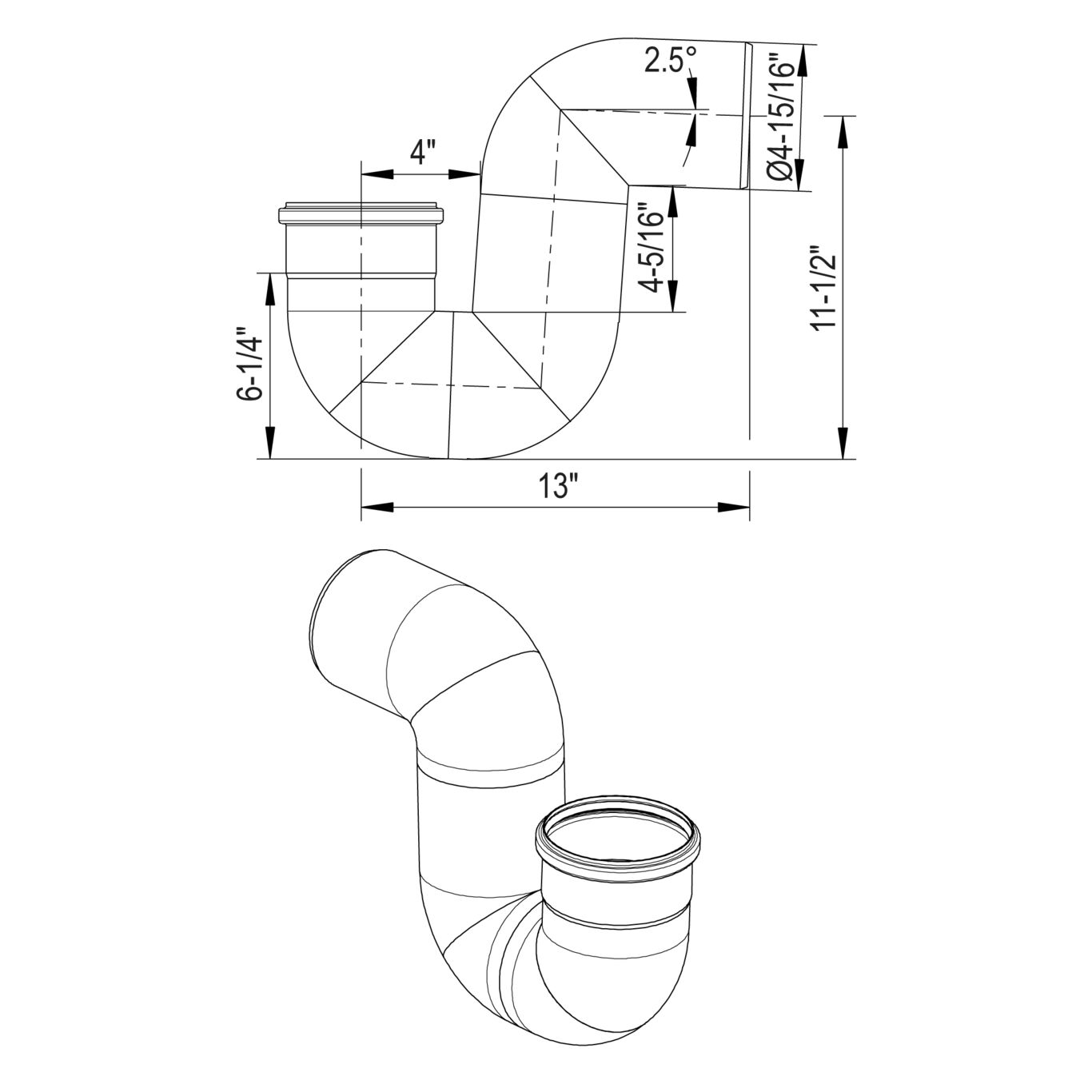

P-TRAP 87,5°
-Diameter: Ø5 inch
-Water seal height = 4 inch
-Stainless steel: AISI316L/EN1.4404
US order number: PT-5
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 158 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Max Flow (l/s) | 15.0 |
| Minimum Flow (l/s) | 4.4 |
| Outlet dia. (mm) | 125 |
| Outlet Diameter (Inch) | 5 |
| Water Seal Height (mm) | 110 |
| Weight (kg) | 1.88 |
| Weight (lbs) | 4.14 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.41/19631-22
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Europe
BLÜCHER® EuroPipe EPD
NO - 0692-22 EuroPipe
DE - TÜV Rheinland R 60178453 0001 Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC320524XG EuroPipe Lloyds Register LR22419510TA Bureau Veritas - 03456-H0 KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM ABS - LD1716353-PDA TÜRK LOYDU - 25041616077231247 PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes
