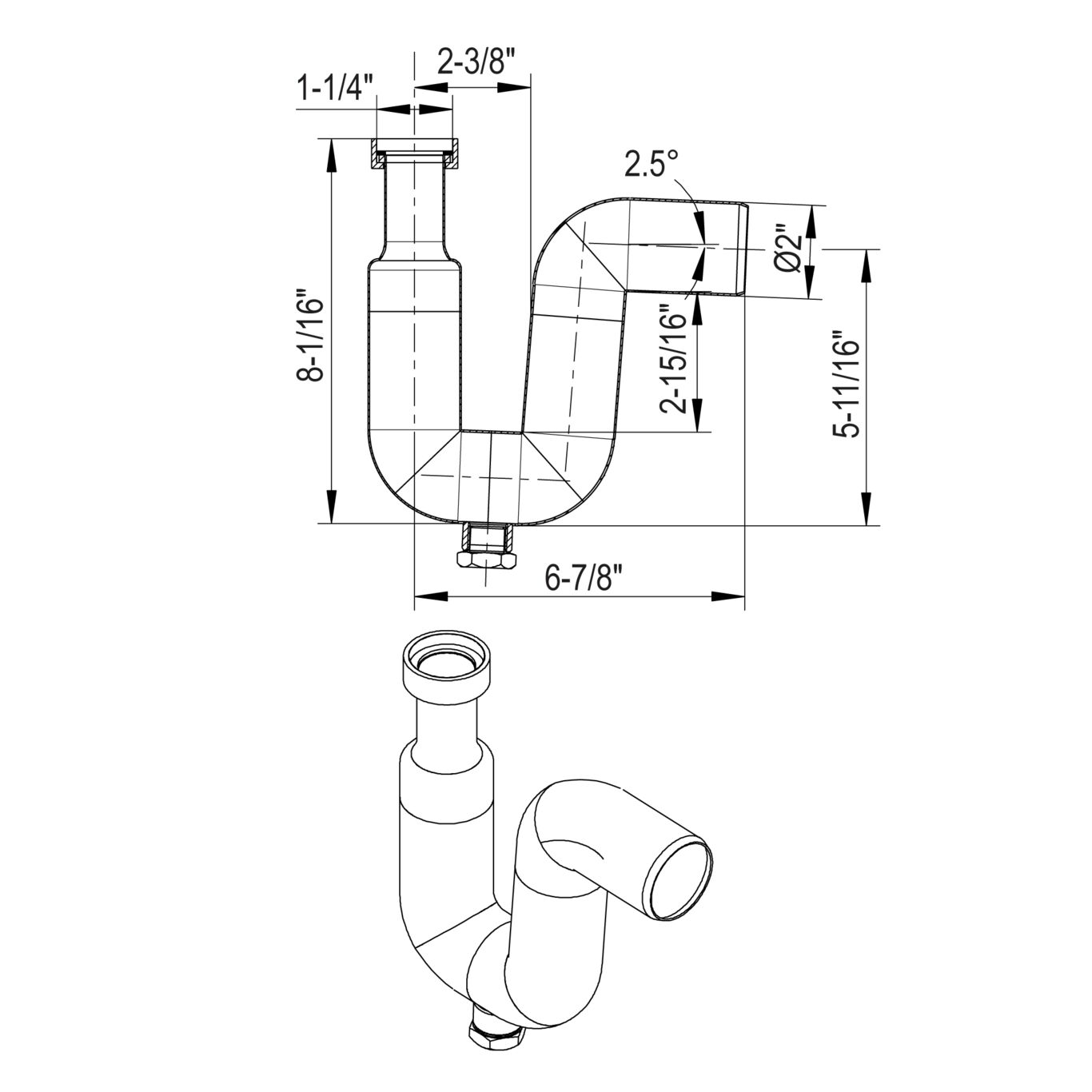

P-TRAP WITH COUPLING AND DRAIN PLUG - (525.032.050 S)
×
![]()
Part Of the Series: Water trap-hand wash
Type no.: 525.032.050 S
EAN no.: 5705499114065
RSK no.: 1551564
P-TRAP WITH COUPLING AND DRAIN PLUG
-Diameter: Ø1¼"/50mm
-Water seal height = 3 inch
-Stainless steel: AISI316L/EN1.4404
US order number: PTC-2x1-1/4-316
| Product Specification | |
|---|---|
| Field of Application | Domestic / Industrial |
| Length (mm) | 209 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Water Seal Height (mm) | 76 |
| Weight (kg) | 0.95 |
| Weight (lbs) | 2.09 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
BLÜCHER® EuroPipe EPD
