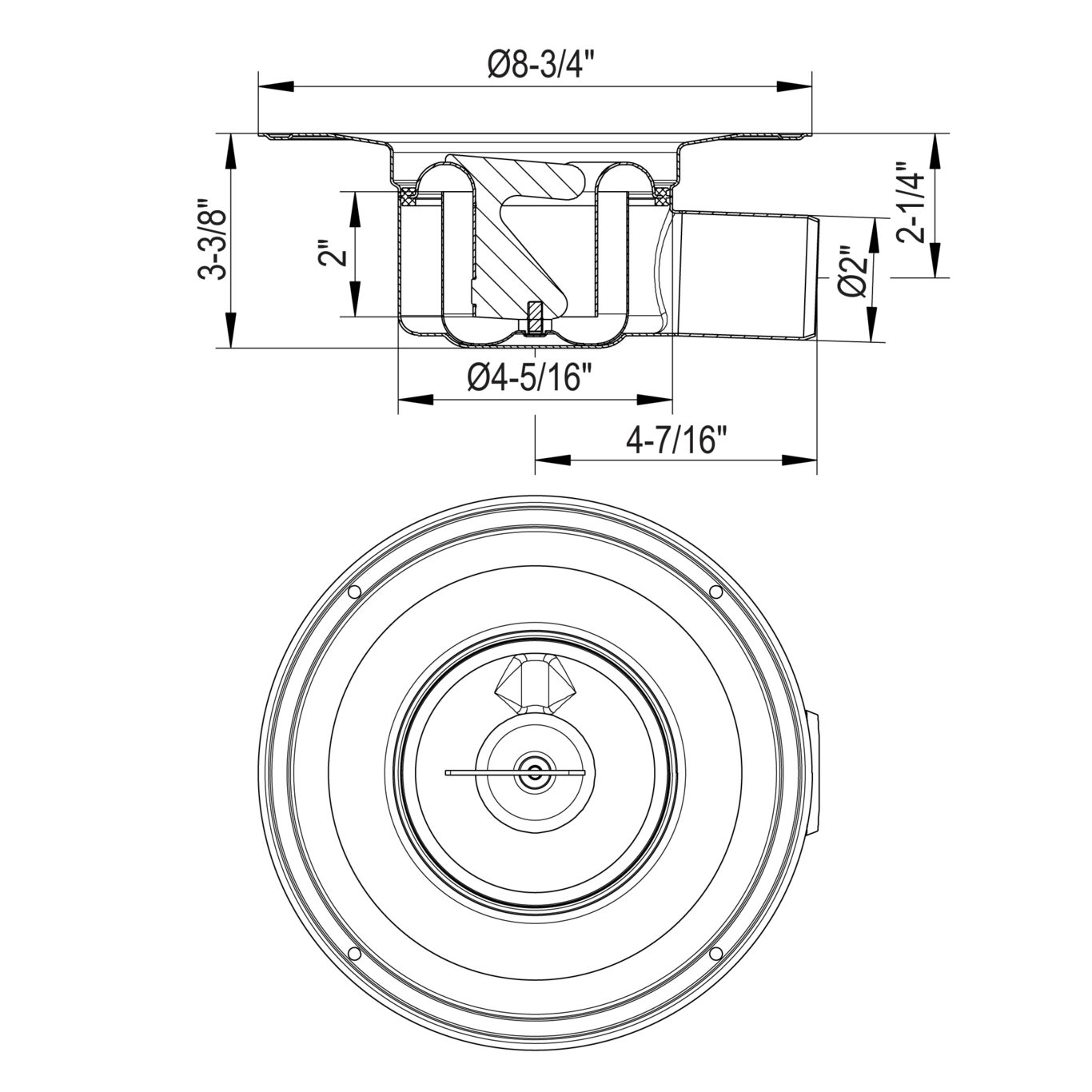

LOWER PART MULTI, LOW - (382.200.050 V)
×
![]()
Part Of the Series: MULTI lower part
Type no.: 382.200.050 V
EAN no.: 5705499133295
LOWER PART MULTI, LOW
-With removable water trap
-Liquid membrane
-Outlet: Ø2 inch, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 86 |
| Number of Inlets | 0 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Outlet Direction | Horizontal |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 1.21 |
| Weight (lbs) | 2.67 |
-
Approval Information
For approval information, please refer to the below approval certificates.
