GRATING LINE VIENNA 700 - (697.003.070 M)
×
![]()
Part Of the Series: Grating-Shower channel
Type no.: 697.003.070 M
EAN no.: 5705499139297
VVS no.: 155072307
Size: 50x700

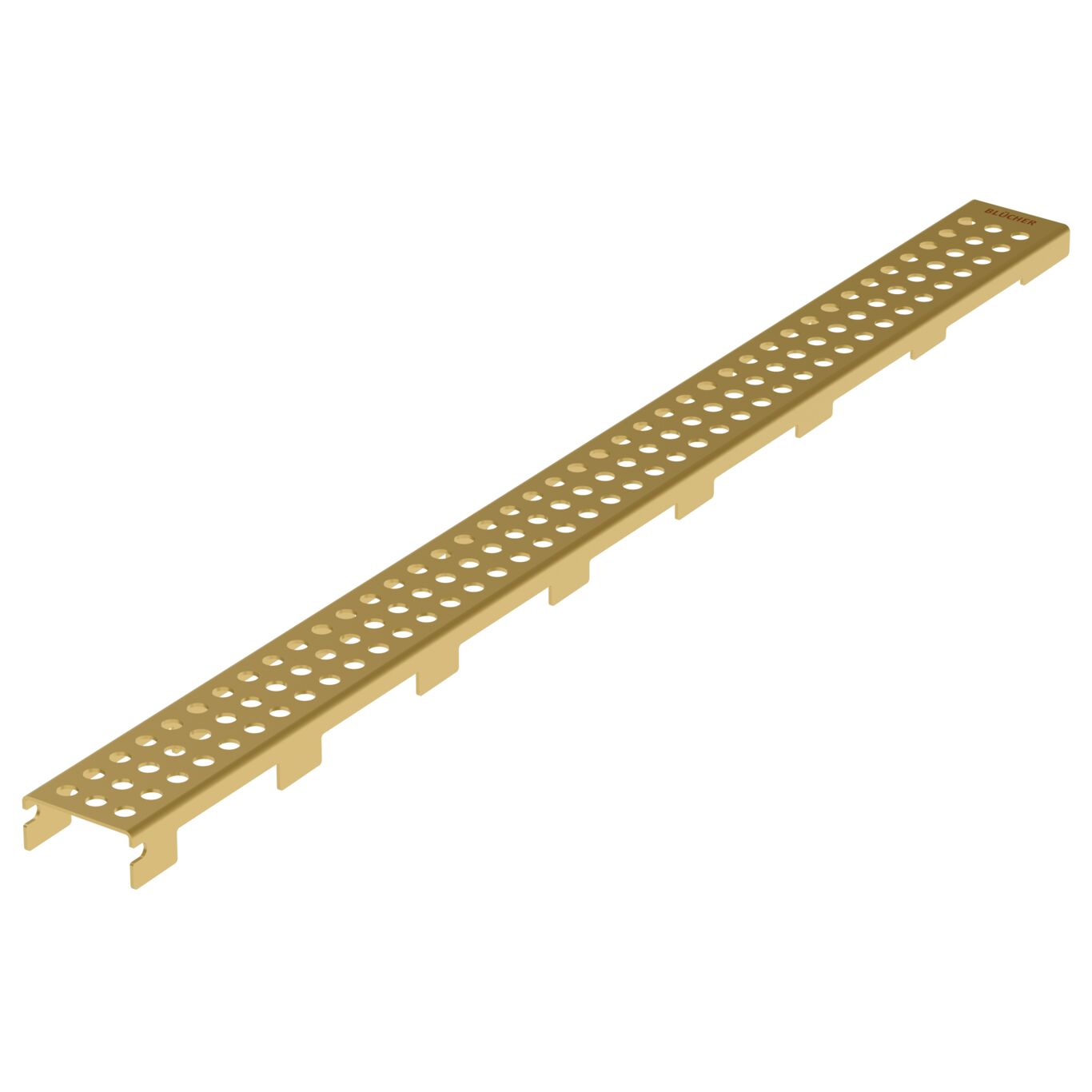

GRATING LINE VIENNA 700
- Grating: 2 x 24-7/8 inch
- Colour: Brass
- Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Load Class EN1253 | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 0.9 |
| Product Family | WaterLine |
| Shape | Rectangular |
| Size (mm) | 50x700 |
| Size of Frame (Inch) | 2 x 27-1/2 |
| Weight (kg) | 0.45 |
| Weight (lbs) | 0.99 |
-
Approval Information
For approval information, please refer to the below approval certificates.
