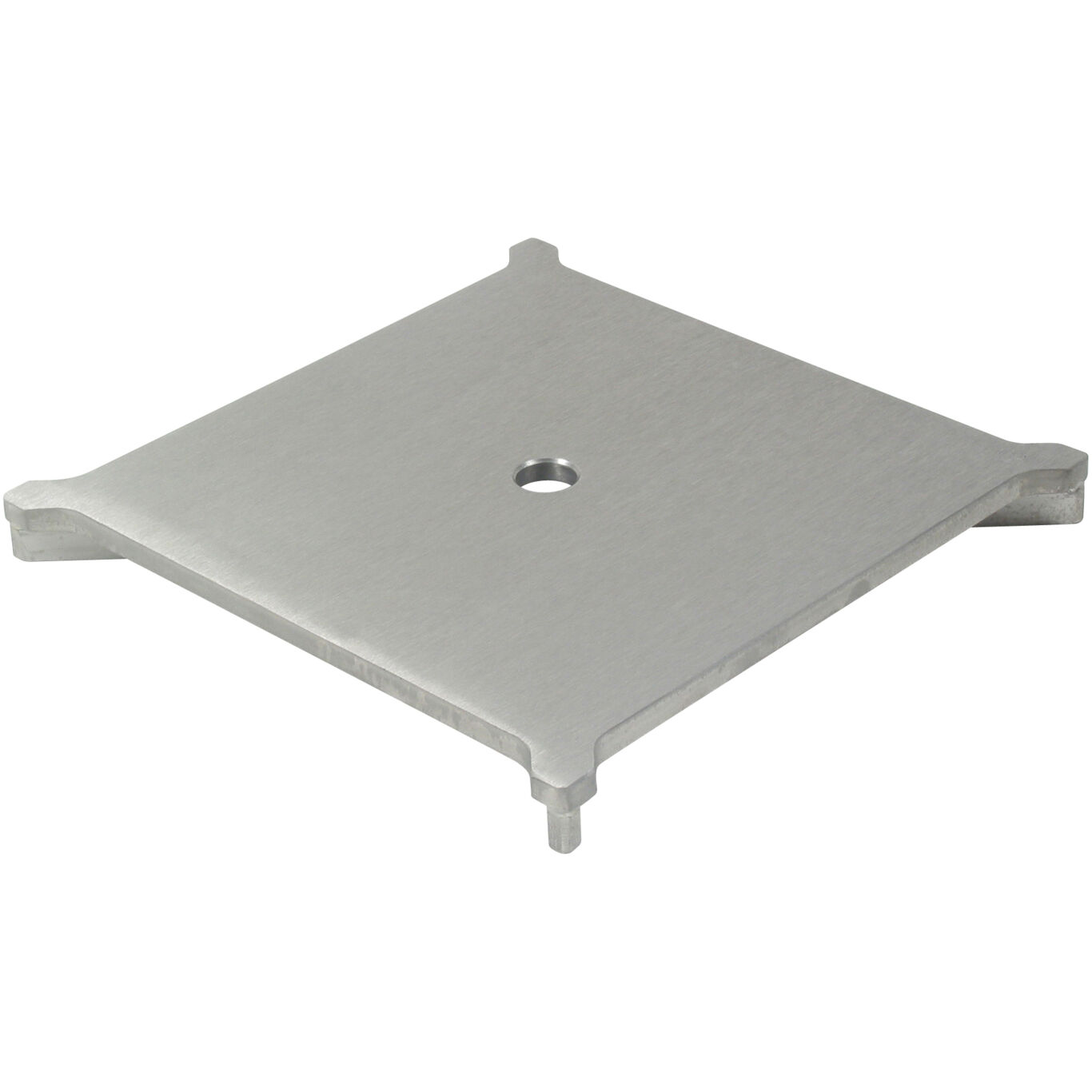

SLOT GRATING SQUARE - (790.268.000.10 S)

Part Of the Series: Grating-Drain-300

Type no.: 790.268.000.10 S

EAN no.: 5705499104660

VVS no.: 153539120

LVI no.: 3304038

Size: 300x300

Download CAD Collections

2d DWG files

3d STP files

Download MasterSpec Documents


Product Specification
Field of Application Industrial
Load Class EN1253 R50
Load class EN1253(kg) R50 (6000)
Load class EN1253(lbs) R50 (13228)
Material AISI 316L
Material (EN) EN 1.4404
Minimum Height (mm) 25
Non slip R10
Number of Screws 0
Shape Square
Size (mm) 300x300
Size of Frame (Inch) 11-3/4 x 11-3/4
Weight (kg) 5.11
Weight (lbs) 11.27
