SHOWER GRATING CHANNEL - (697.015.200.99 S)
×
![]()
Part Of the Series: Grating-Channel-200
Type no.: 697.015.200.99 S
EAN no.: 5705499124545
Size: 200x1000

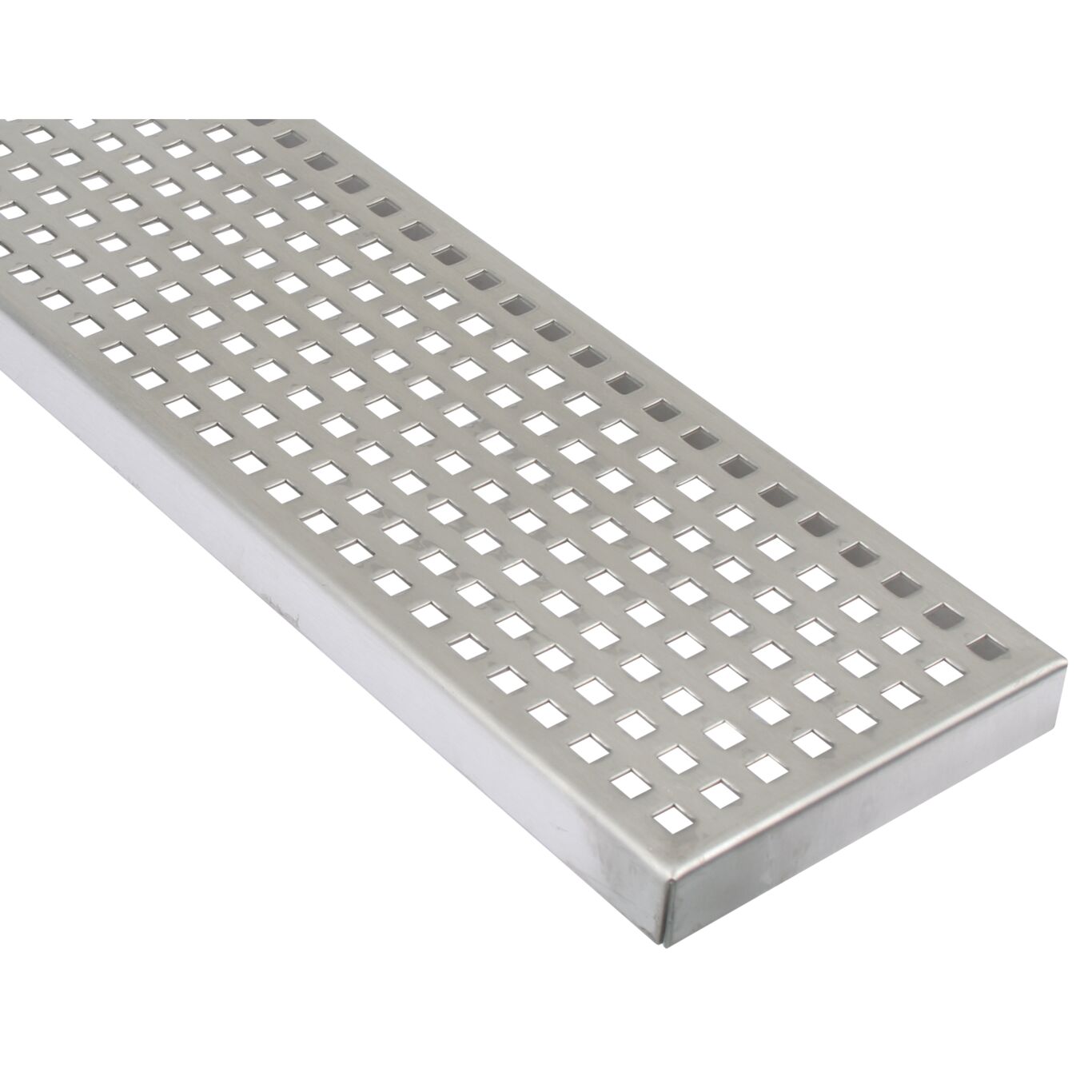

SHOWER GRATING CHANNEL

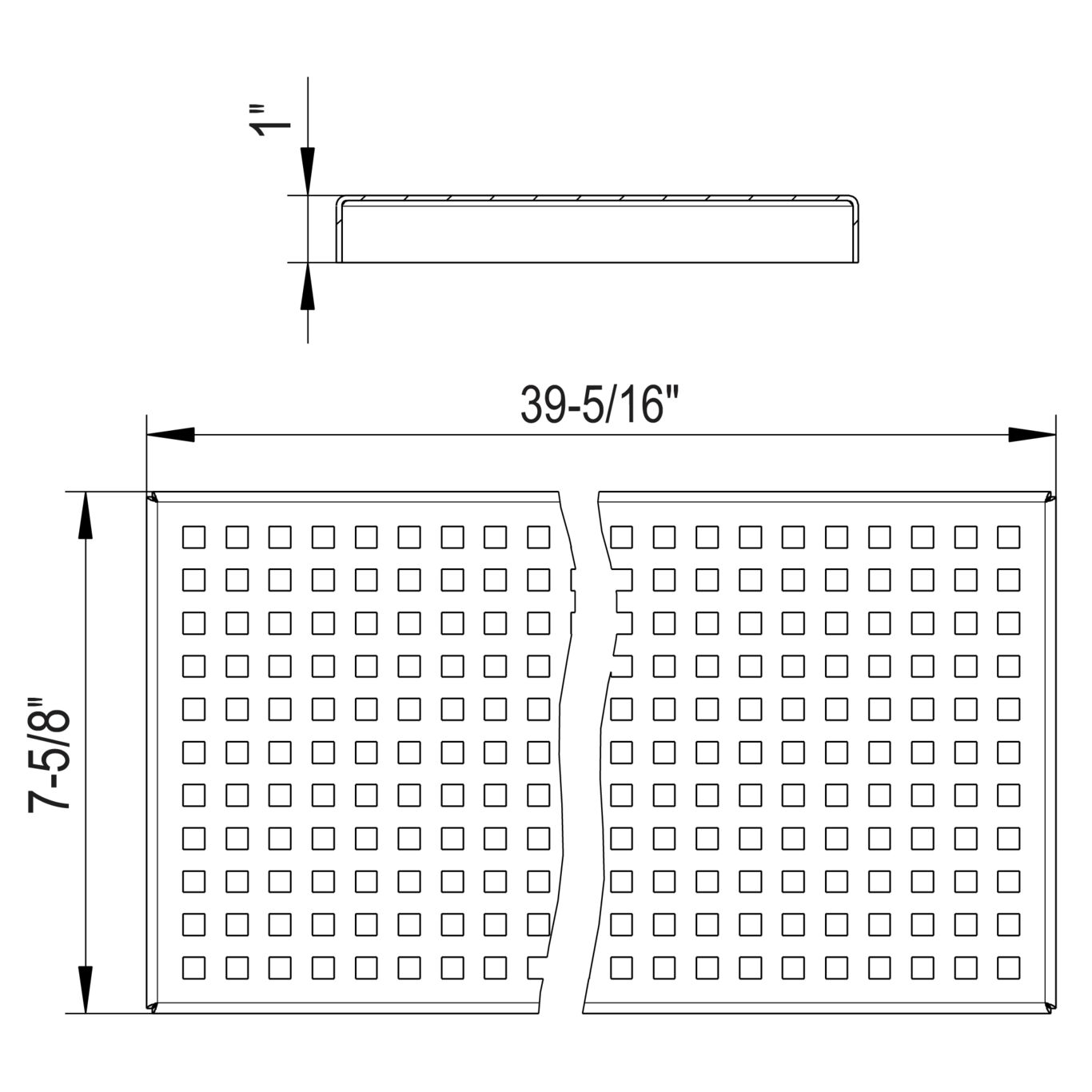

-Grating: 7-5/8 x 39-5/16 inch
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | K3 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 25 |
| Non slip | R10 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 200x1000 |
| Size of Frame (Inch) | 7-7/8 x 39-3/8 |
| Weight (kg) | 3.4 |
| Weight (lbs) | 7.5 |
-
Approval Information
For approval information, please refer to the below approval certificates.
Declaration of Performance - EN1433-001
BLÜCHER® Channels EPD
HACCP Food Safety Programme - Australasia
