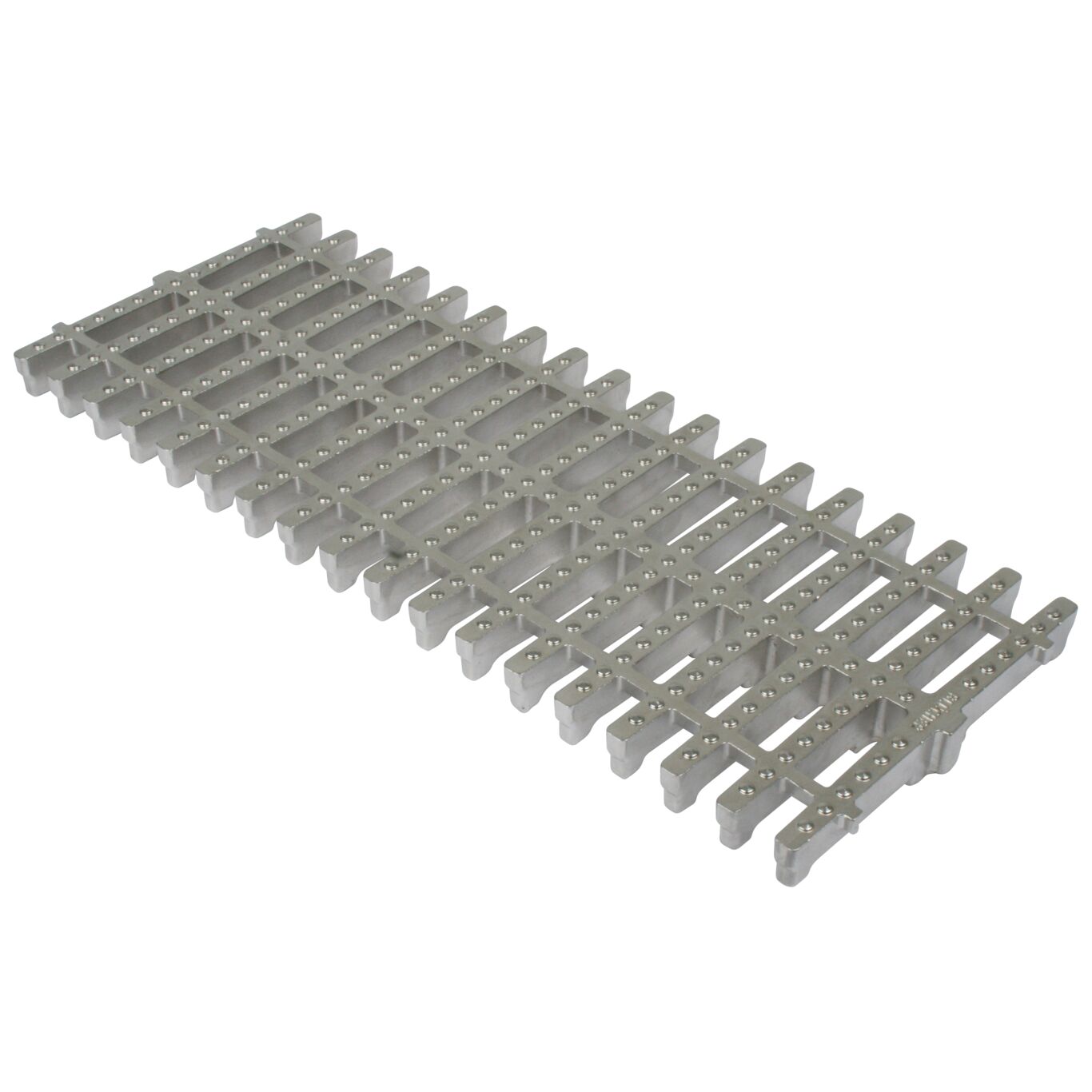

HYGIENICPRO GRATING CHANNEL - (697.250.200.50 S)

Part Of the Series: Grating-Channel-200

Type no.: 697.250.200.50 S

EAN no.: 5705499138597

Size: 200x500


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Load Class ASME A112.6.3 (lbs) Special Duty (10,506)
Load Class EN1253 M125
Load class EN1253(kg) M125 (10000)
Load class EN1253(lbs) M125 (22046)
Load Class EN1433 B125
Load class EN1433(kg) B125 (13.000)
Load class EN1433(lbs) B125 (28660)
Material AISI 316L
Material (EN) EN 1.4404
Minimum Height (mm) 25
Non slip R10
Number of Screws 0
Shape Rectangular

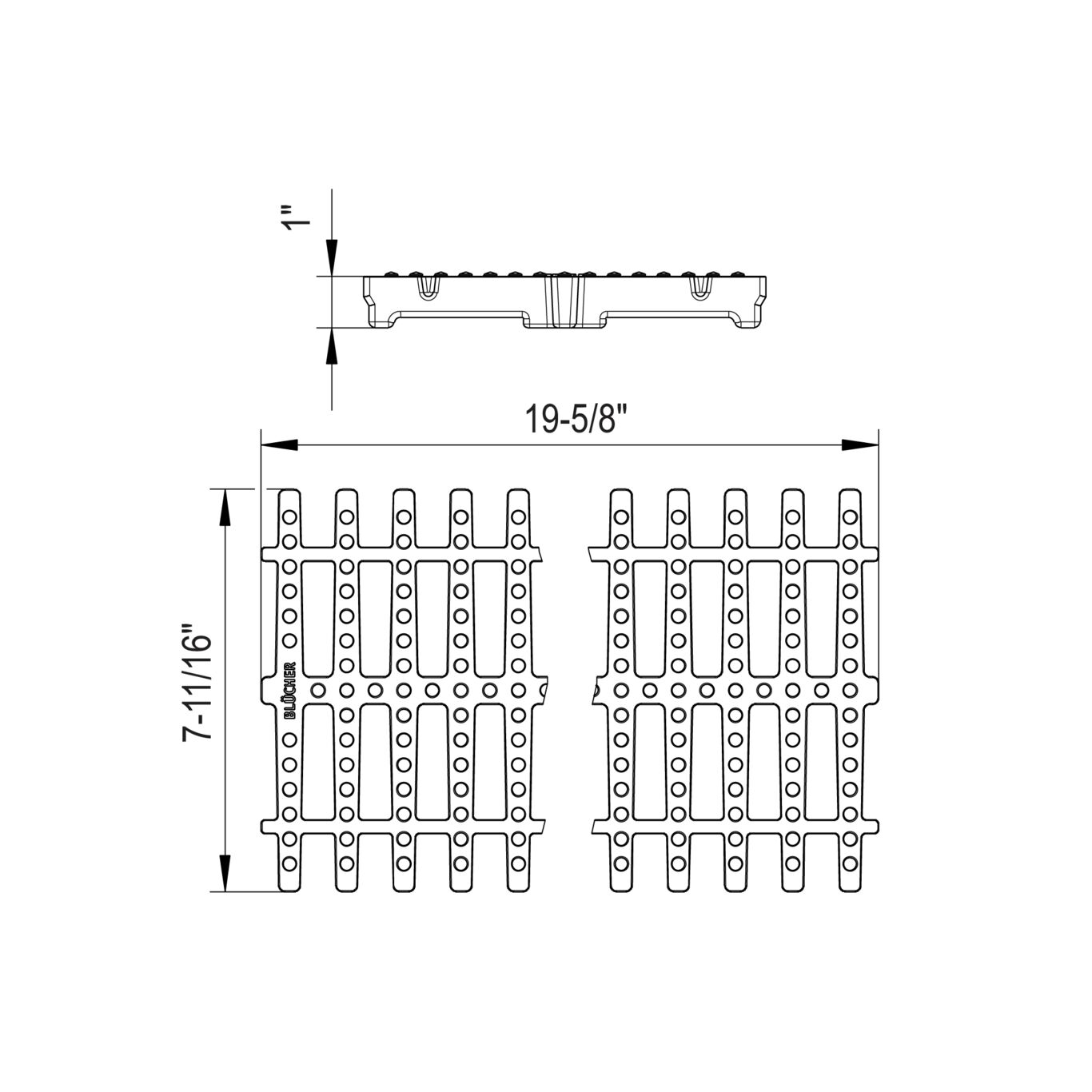

Size (mm) 200x500
Size of Frame (Inch) 7-7/8 x 19-5/8
Weight (kg) 7.5
Weight (lbs) 16.53
