MESH GRATING CHANNEL - (696.223.144.99 S)
×
![]()
Part Of the Series: Grating-Channel-150
Type no.: 696.223.144.99 S
EAN no.: 5705499124446
Size: 150x1000
MESH GRATING CHANNEL

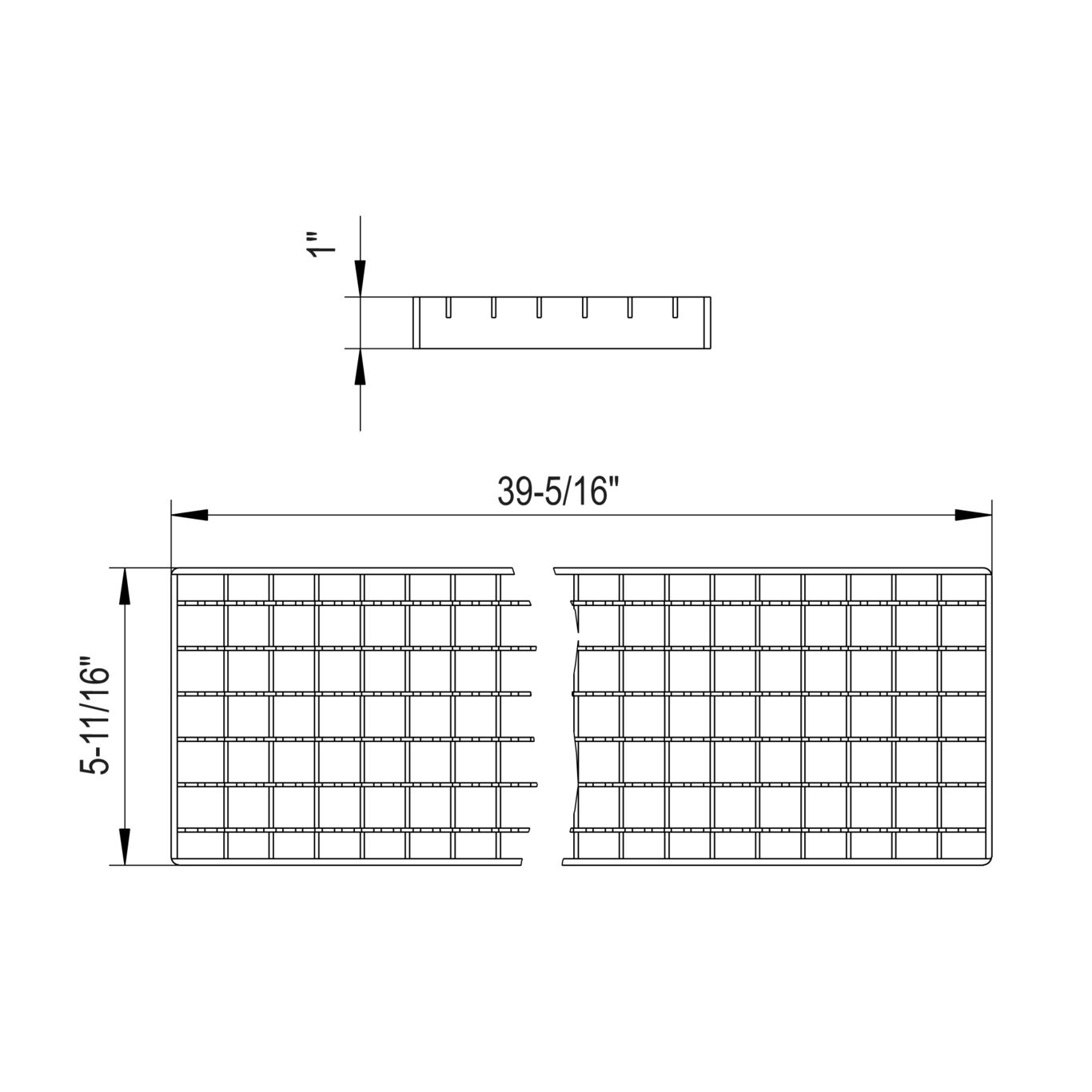

-Grating: 5-11/16 x 39-5/16 inch
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | R50 |
| Load Class EN1433 | B125 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 25 |
| Non slip | R12 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 150x1000 |
| Size of Frame (Inch) | 5-7/8 x 39-3/8 |
| Weight (kg) | 4.45 |
| Weight (lbs) | 9.81 |
-
Approval Information
For approval information, please refer to the below approval certificates.
Declaration of Performance - EN1433-003
BLÜCHER® Channels EPD
HACCP Food Safety Programme - Australasia
