UPPER PART - (774.402.000.01 S)
×
![]()
Part Of the Series: Upper part-No membrane-200
Type no.: 774.402.000.01 S
EAN no.: 5705499112016
LVI no.: 3303824

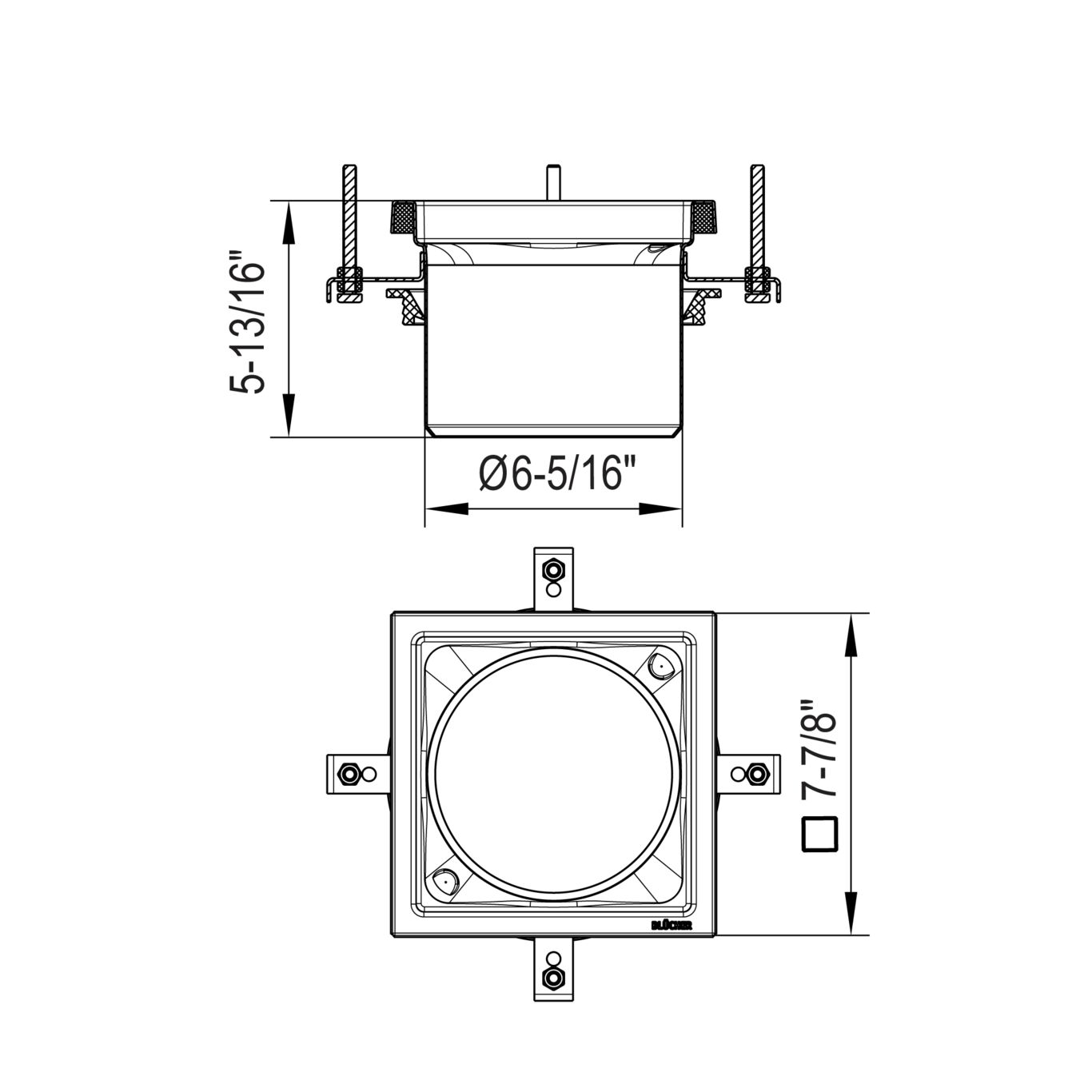

Size: 200x200
UPPER PART
- With screwlock
- Floor: concrete and tiled
- Frame: 200x200mm
- Stainless steel: AISI316L/EN1.4404
Part of USA order number: BFD-213-VP
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Number of Screw Holes | 1 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Shape | Square |
| Size (mm) | 200x200 |
| Size of Frame (Inch) | 7-7/8 x 7-7/8 |
| Weight (kg) | 1.85 |
| Weight (lbs) | 4.08 |
-
Approval Information
For approval information, please refer to the below approval certificates.
