UPPER PART, LOW - (774.422.000 S)

Part Of the Series: Upper part-Liquid membrane-200

Type no.: 774.422.000 S

EAN no.: 5705499112306

VVS no.: 153018178

LVI no.: 3303835

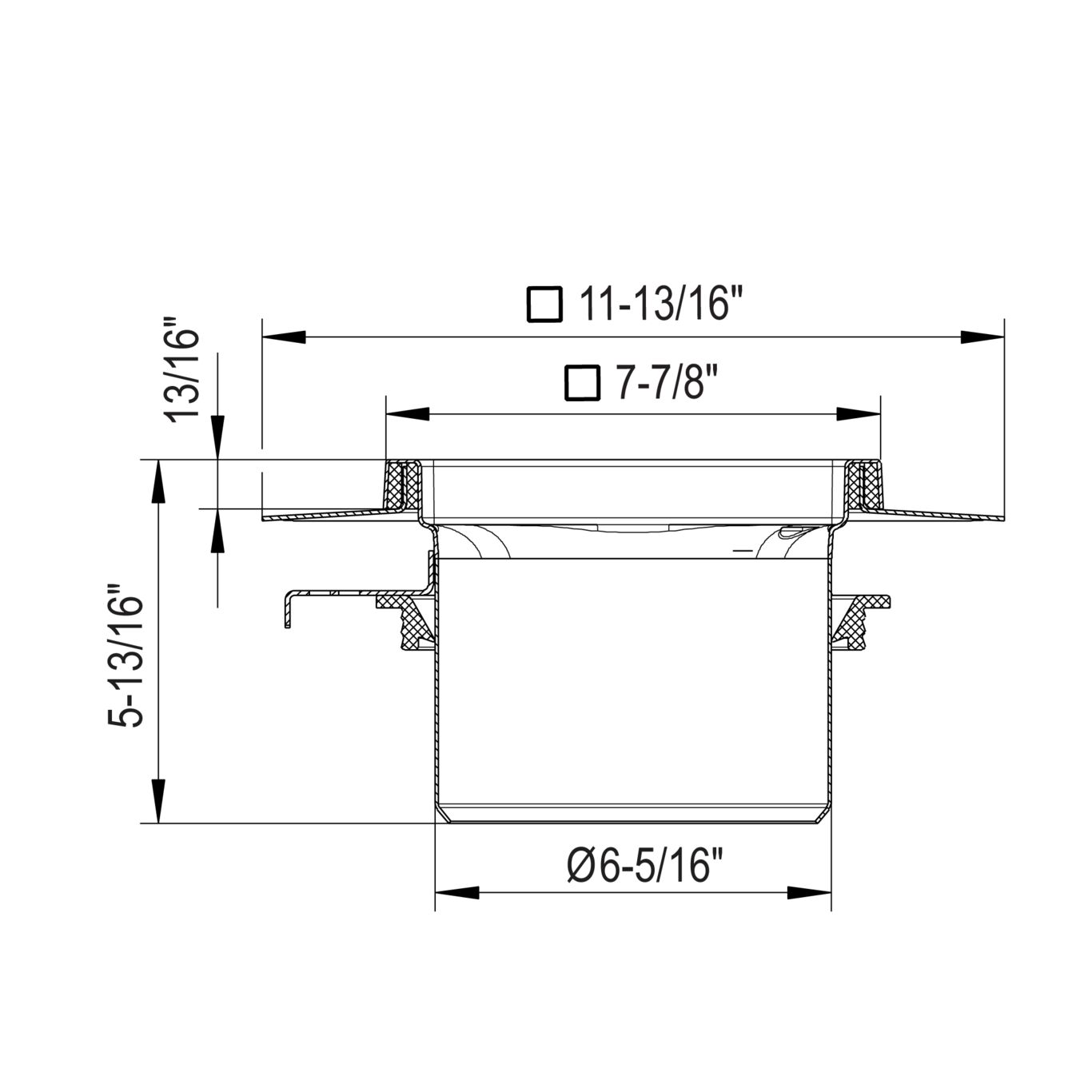

Size: 200x200


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled
Material AISI 316L
Material (EN) EN 1.4404
Number of Screw Holes 0
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Shape Square
Size (mm) 200x200
Size of Frame (Inch) 7-7/8 x 7-7/8
Weight (kg) 4.55
Weight (lbs) 10.03
