RODDING EYE FOR VACUUM HANDLE/SCREW - (144.205.160.10 S)

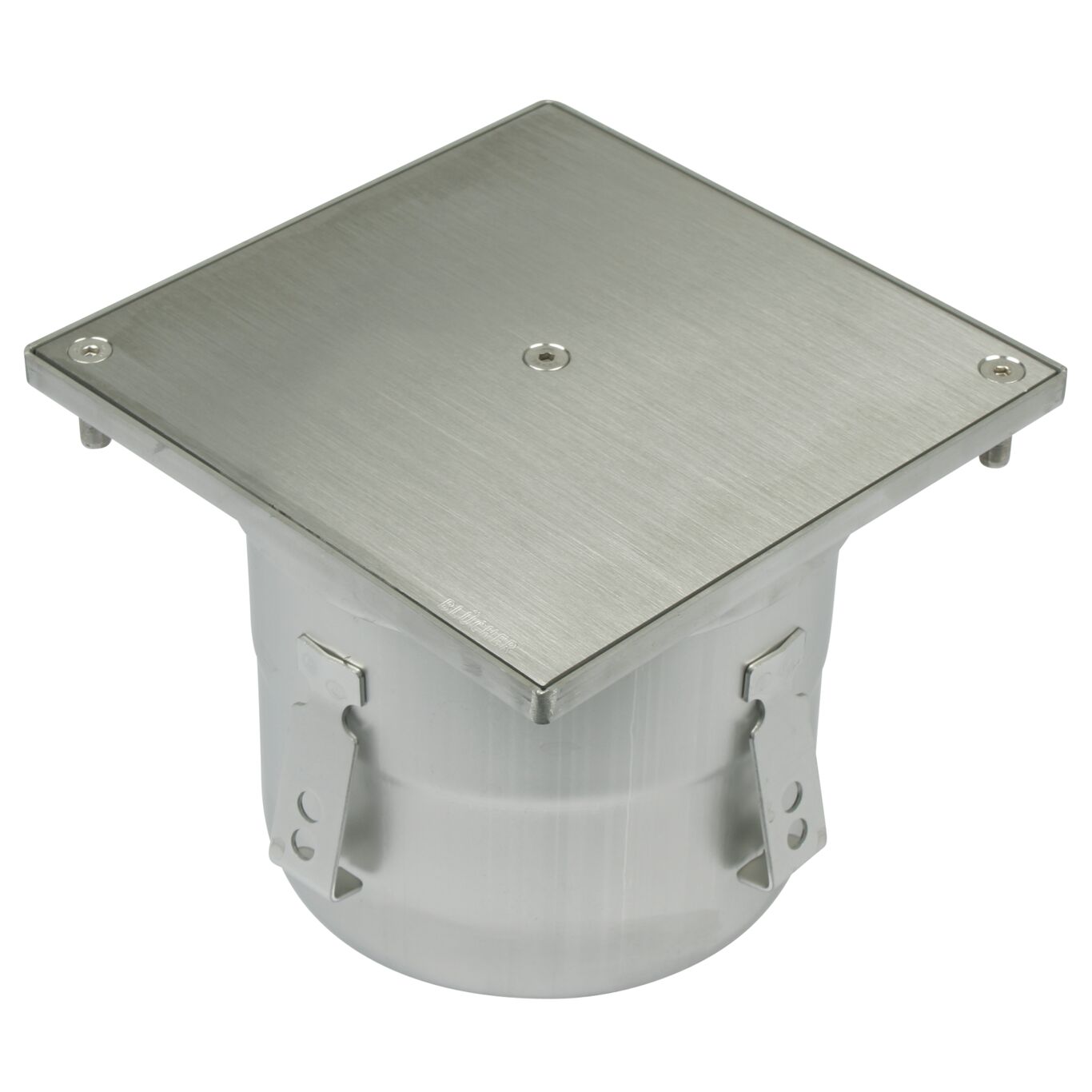

Part Of the Series: Rodding eye-No membrane-200
Type no.: 144.205.160.10 S
EAN no.: 5705499412284
RSK no.: 7120131
LVI no.: 3305809
Size: 200x200
RODDING EYE FOR VACUUM HANDLE/SCREW
-With screw lock and 3/8 inch plate
-Floor: concrete and tiled

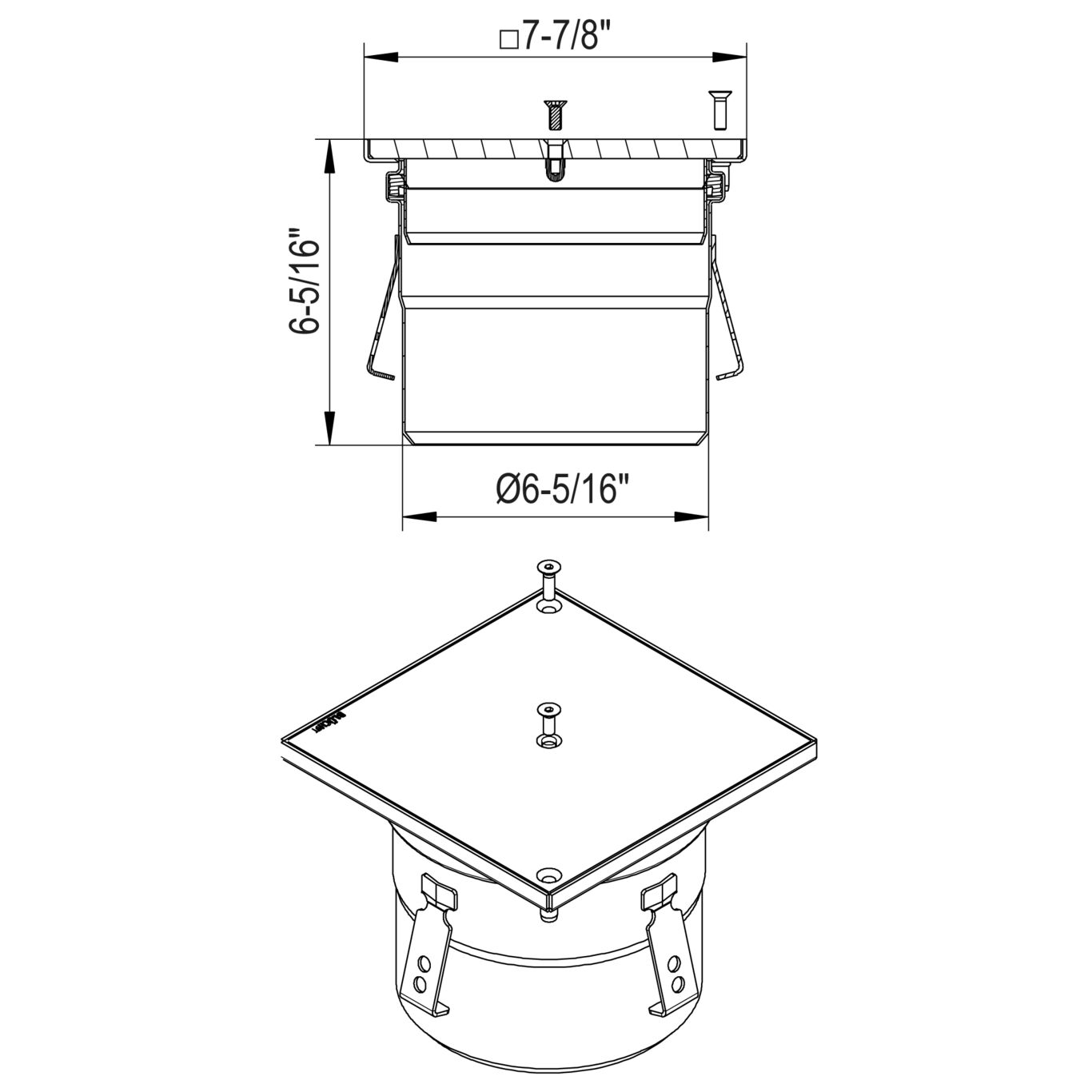

-No membrane, frame: 7-7/8 x 7-7/8 inch
-Outlet: Ø6 inch, vertical
-Stainless steel: AISI316L/EN1.4404
US order number: BCO-136-316
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Concrete / Tiled |
Load Class EN1253 | M125 |
Load class EN1253(kg) | M125 (12000) |
Load class EN1253(lbs) | M125 (26455) |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Membrane Type | No Membrane |
Number of Screw Holes | 2 |
Outlet dia. (mm) | 160 |
Outlet Diameter (Inch) | 6 |
Outlet Direction | Vertical |
Shape | Square |
Size (mm) | 200x200 |
Size of Frame (Inch) | 7-7/8 x 7-7/8 |
Weight (kg) | 3.52 |
Weight (lbs) | 7.76 |
-
Approval Information
For approval information, please refer to the below approval certificates.
