RODDING EYE FOR VACUUM HANDLE/SCREW - (144.155.110.10 S)
×
![]()
Part Of the Series: Rodding eye-No membrane-155
Type no.: 144.155.110.10 S
EAN no.: 5705499408539
RSK no.: 7120127
LVI no.: 3305808
Size: 155x155

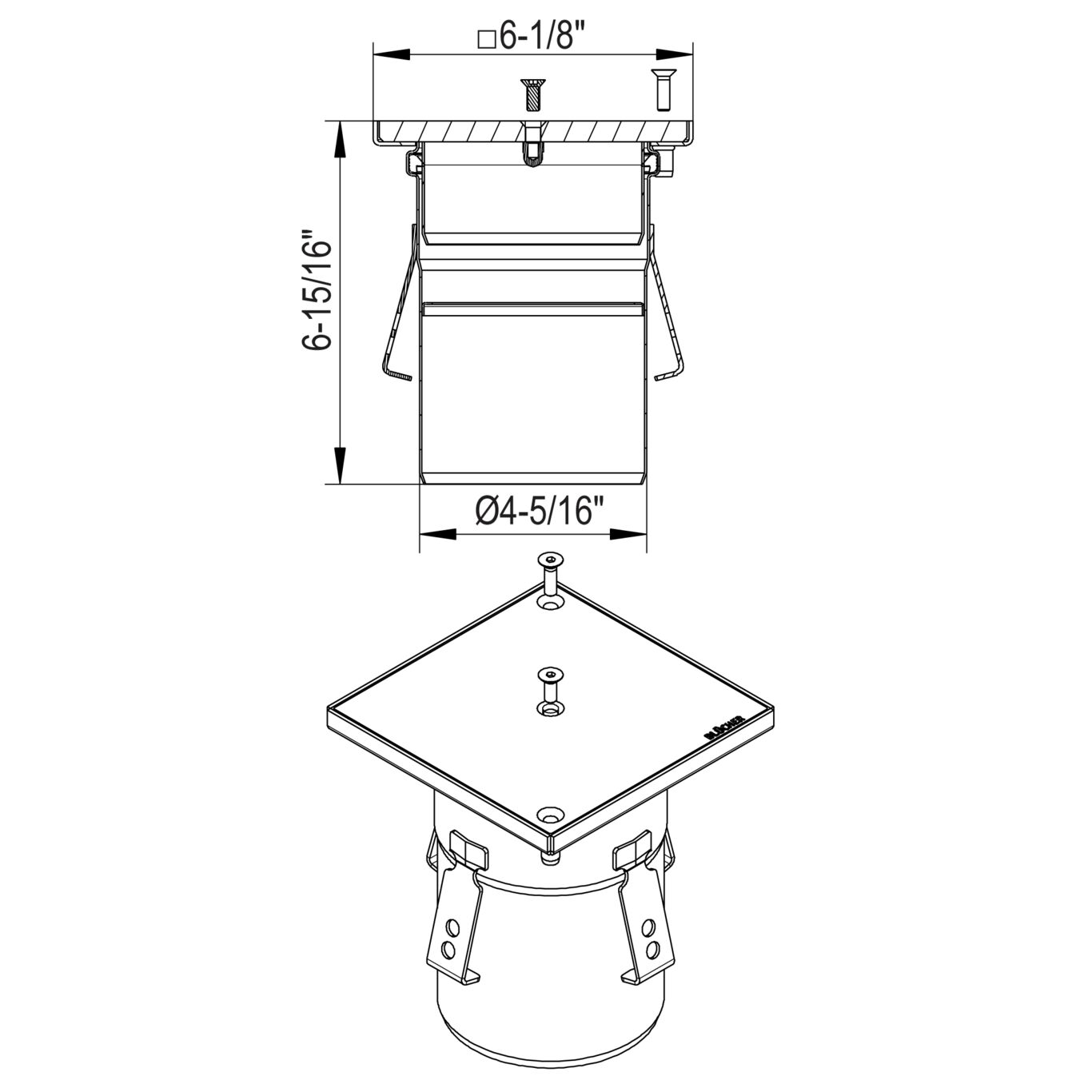

RODDING EYE FOR VACUUM HANDLE/SCREW
-With screw lock and 3/8 inch plate
-Floor: concrete and tiled
-No membrane, frame: 6-1/8 x 6-1/8 inch
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI316L/EN1.4404
US order number: BCO-134-316
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Load Class EN1253 | M125 |
| Load class EN1253(kg) | M125 (12000) |
| Load class EN1253(lbs) | M125 (26455) |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Number of Screw Holes | 2 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 155x155 |
| Size of Frame (Inch) | 6-1/8 x 6-1/8 |
| Weight (kg) | 3.15 |
| Weight (lbs) | 6.94 |
-
Approval Information
For approval information, please refer to the below approval certificates.
