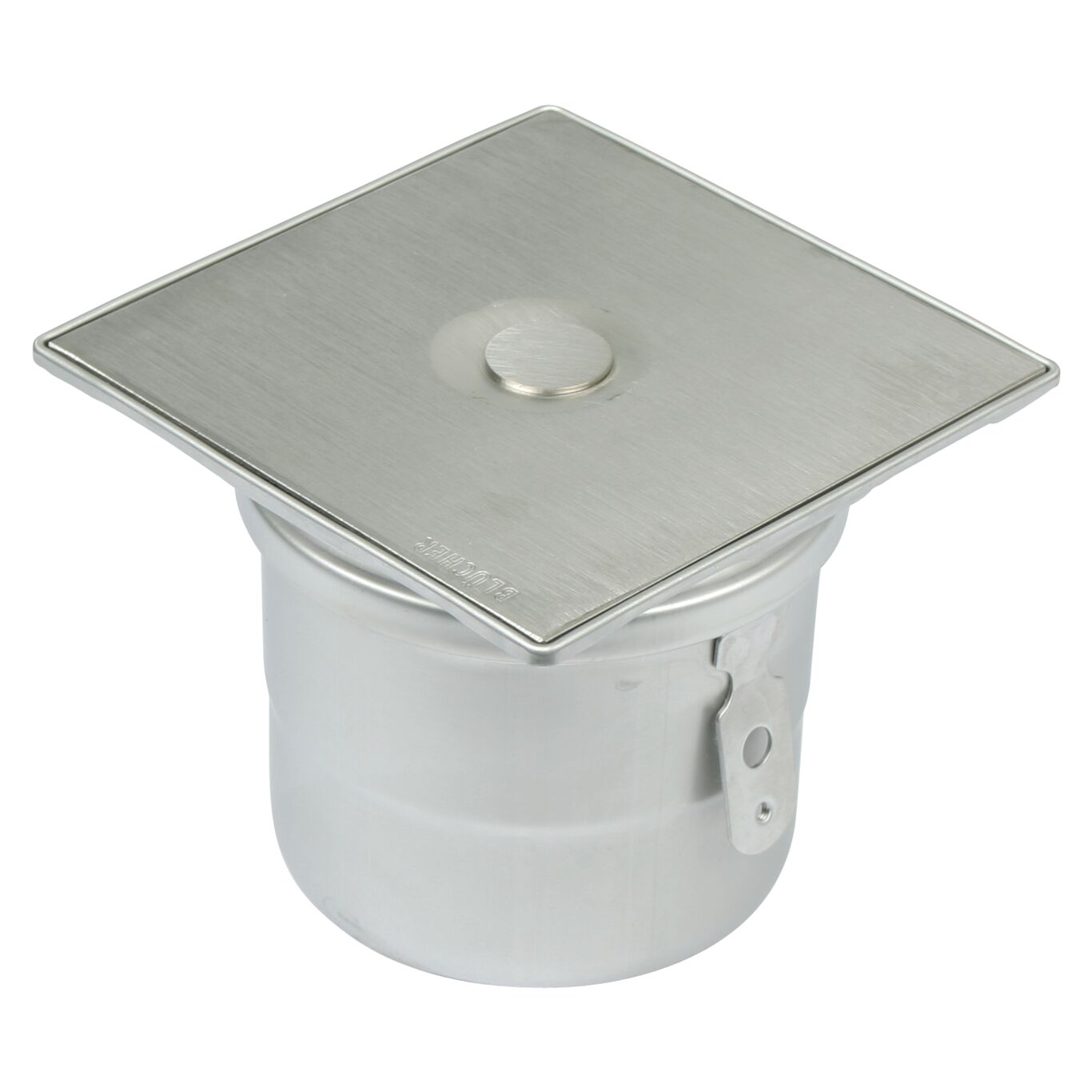

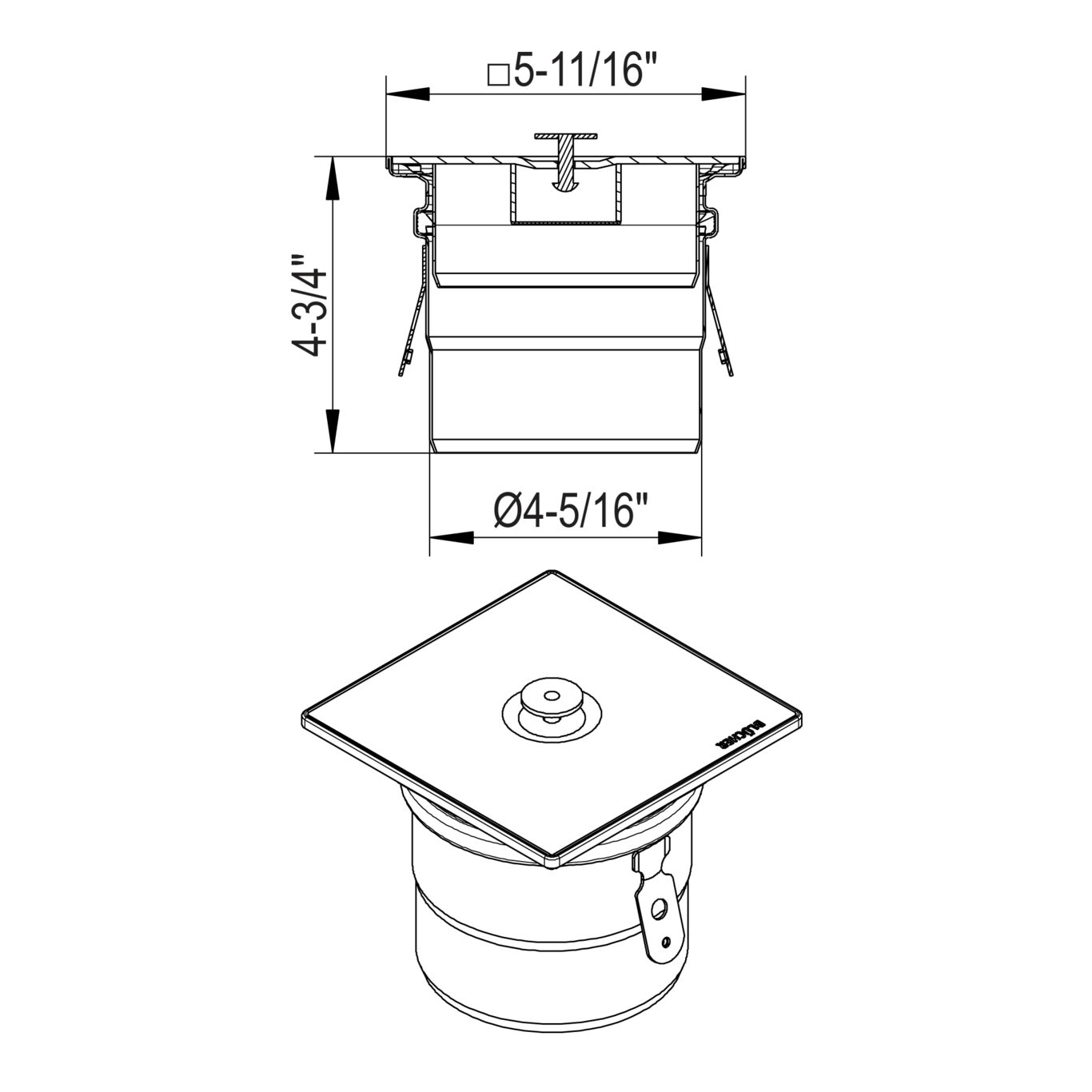

RODDING EYE WITH PULL NIPPLE - (144.150.110 S)

Part Of the Series: Rodding eye-No membrane-145

Type no.: 144.150.110 S

EAN no.: 5705499408508

LVI no.: 3305802

Size: 145x145


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled
Load Class EN1253 K3
Load class EN1253(kg) K3 (750)
Load class EN1253(lbs) K3 (1653)
Material AISI 316L
Material (EN) EN 1.4404
Membrane Type No Membrane
Number of Screw Holes 0
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Shape Square
Size (mm) 145x145
Size of Frame (Inch) 5-3/4 x 5-3/4
Weight (kg) 1.36
Weight (lbs) 3
