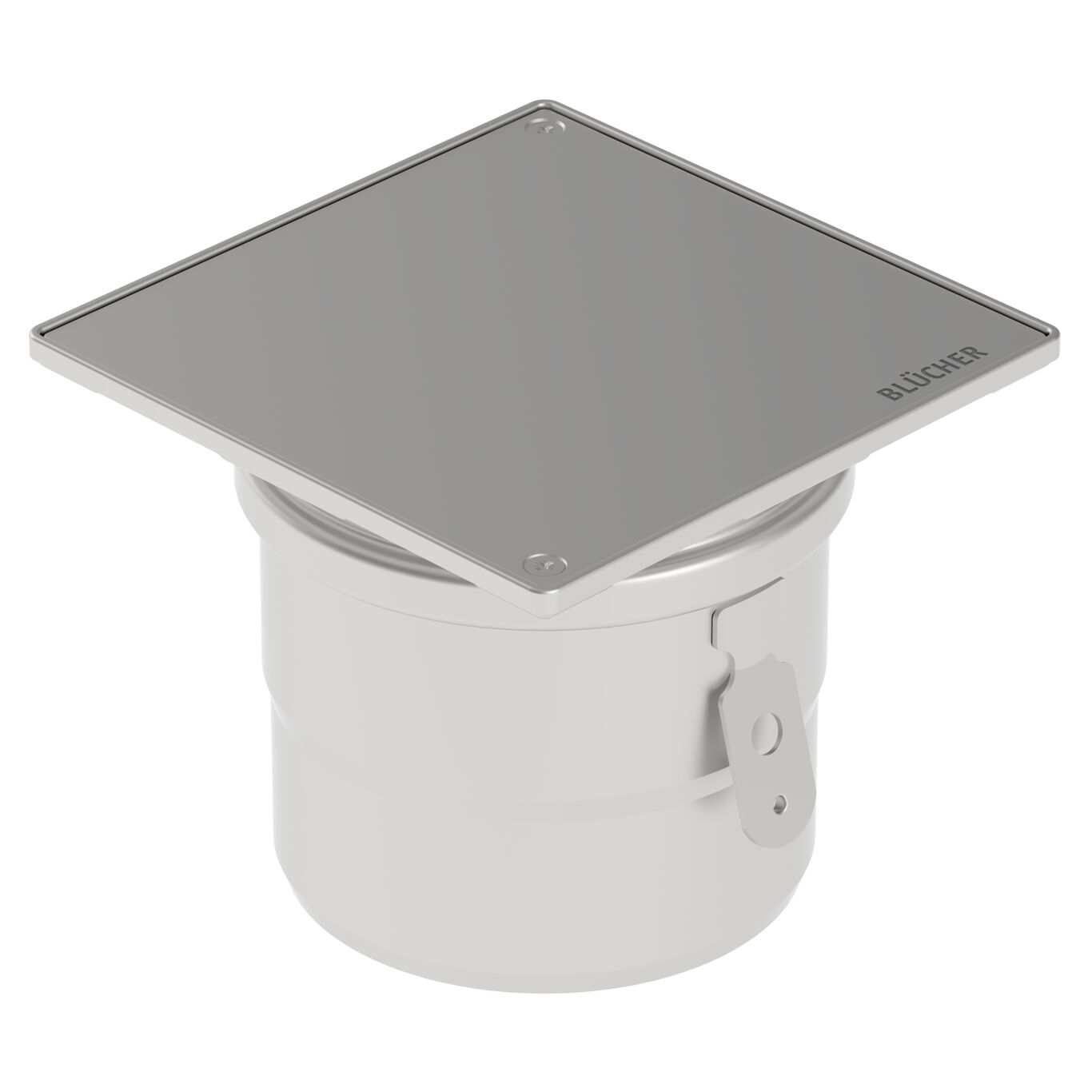

RODDING EYE FOR VACUUM HANDLE - (144.155.110.06)
×
![]()
Part Of the Series: Rodding eye-No membrane-145
Type no.: 144.155.110.06
EAN no.: 5705499140088
Size: 155x155
RODDING EYE FOR VACUUM HANDLE
-With screwlock
-Floor: concrete and tiled
-No membrane, frame: 5-3/4 x 5-3/4 inch
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Load Class EN1253 | R50 |
| Load class EN1253(kg) | R50 (4000) |
| Load class EN1253(lbs) | R50 (8818) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Number of Screw Holes | 2 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 155x155 |
| Size of Frame (Inch) | 6-1/8 x 6-1/8 |
| Weight (kg) | 1.54 |
| Weight (lbs) | 3.4 |
-
Approval Information
For approval information, please refer to the below approval certificates.
