RODDING EYE FOR VACUUM HANDLE - (144.155.110)
Part Of the Series: Rodding eye-No membrane-145
Type no.: 144.155.110
EAN no.: 5705499134988
LVI no.: 3305805
Size: 145x145

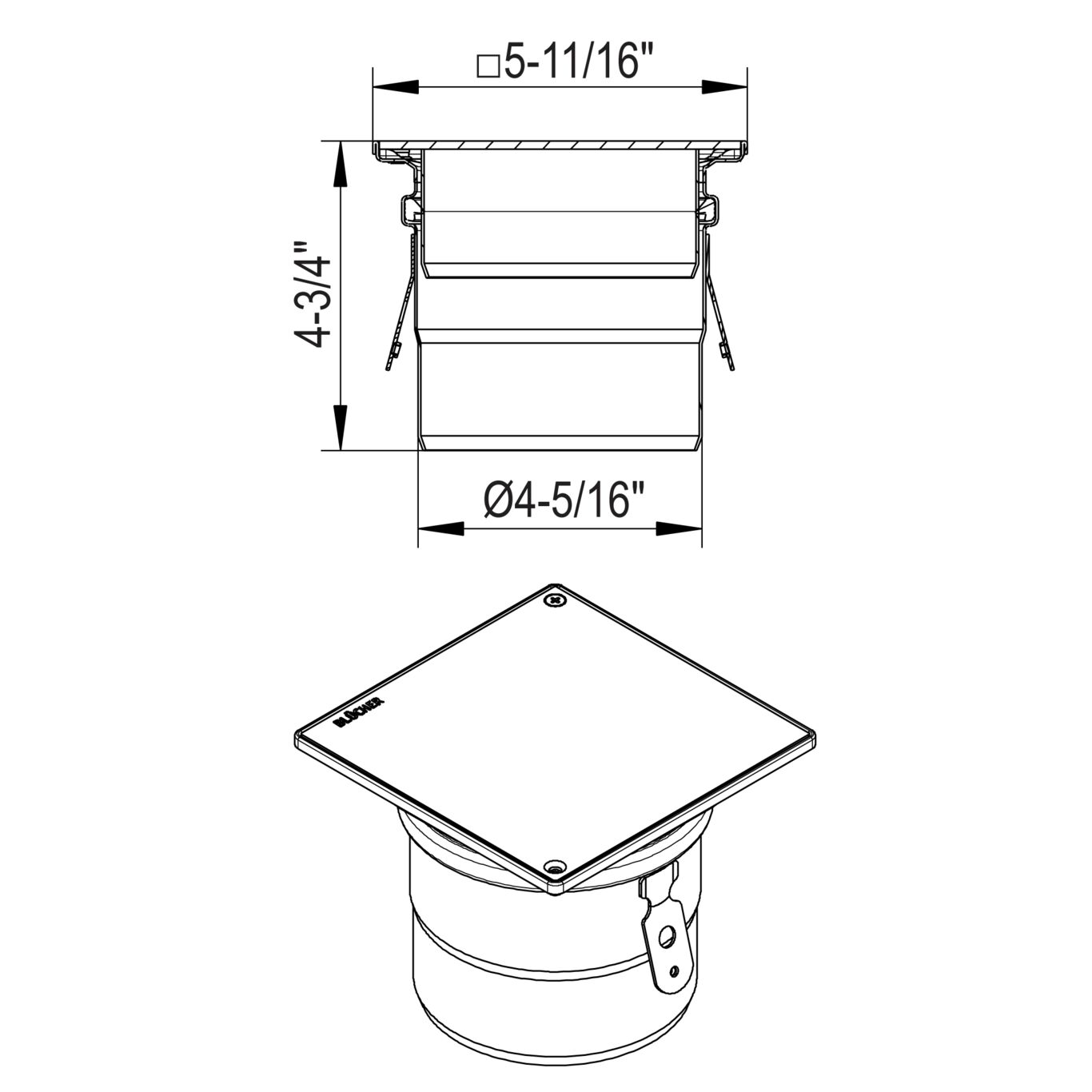

RODDING EYE FOR VACUUM HANDLE
-With screw lock
-Floor: concrete and tiled
-No membrane, frame: 5-3/4 x 5-3/4 inch
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Concrete / Tiled |
Load Class EN1253 | K3 |
Load class EN1253(kg) | K3 (750) |
Load class EN1253(lbs) | K3 (1653) |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | No Membrane |
Number of Screw Holes | 2 |
Outlet dia. (mm) | 110 |
Outlet Diameter (Inch) | 4 |
Outlet Direction | Vertical |
Shape | Square |
Size (mm) | 145x145 |
Size of Frame (Inch) | 5-3/4 x 5-3/4 |
Weight (kg) | 1.09 |
Weight (lbs) | 2.4 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
