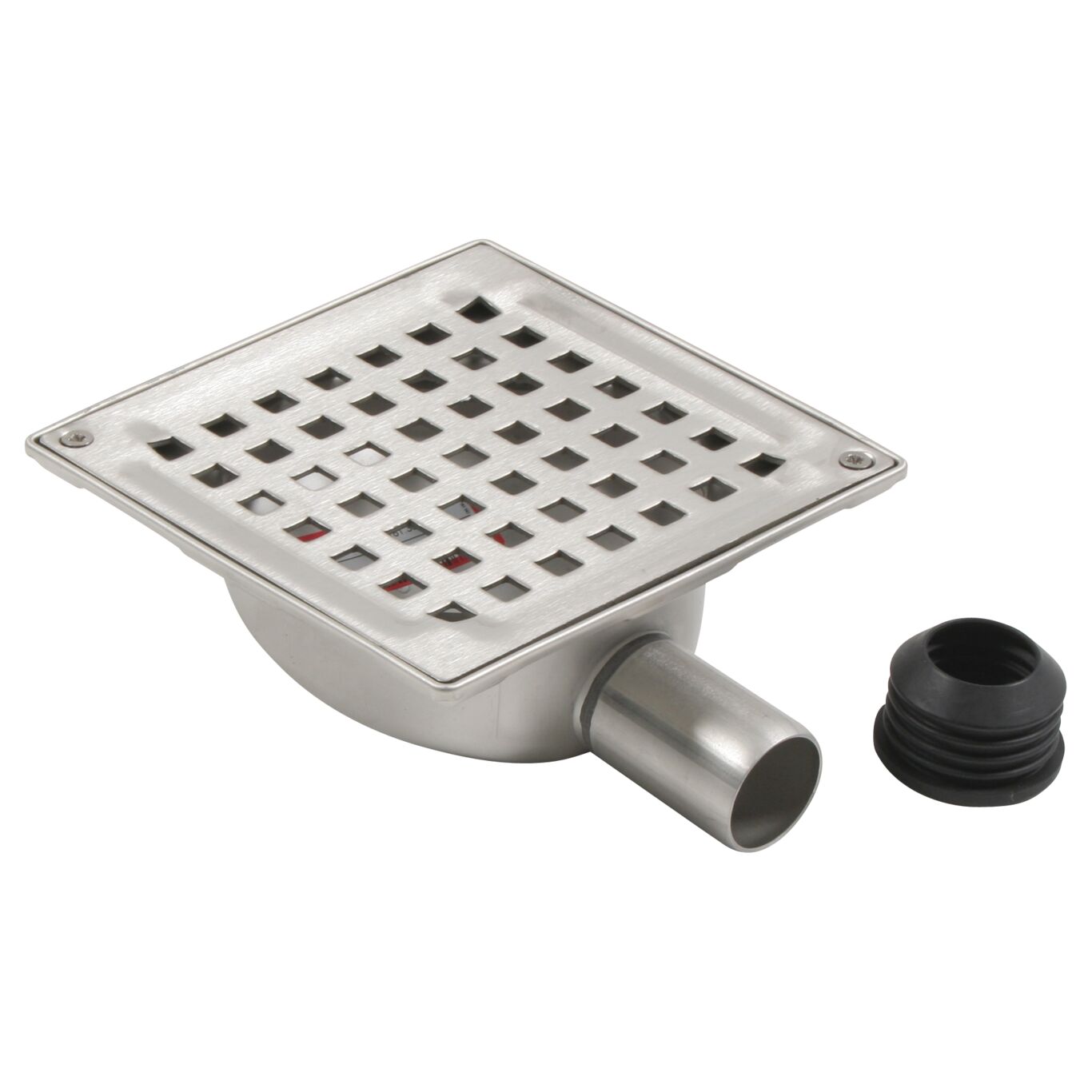

MINI SHOWER DRAIN SQUARE - (181.300.032 S)
×
![]()
Part Of the Series: Drain-No membrane-145
Type no.: 181.300.032 S
EAN no.: 5705499107371
VVS no.: 153490140
LVI no.: 3305776
Size: 145x145
MINI SHOWER DRAIN SQUARE
-Removable water trap cannot be used
-Floor: concrete and tiled
-No membrane, frame: 5-3/4 x 5-3/4 inch
-Outlet: Ø1-1/4, 1-1/2 inch, horizontal
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Number of Screw Holes | 2 |
| Outlet dia. (mm) | 32 |
| Outlet Diameter (Inch) | 1-1/4 |
| Outlet Direction | Horizontal |
| Shape | Square |
| Size (mm) | 145x145 |
| Size of Frame (Inch) | 5-3/4 x 5-3/4 |
| Weight (kg) | 0.7 |
| Weight (lbs) | 1.54 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
