Slot channel-Liquid membrane

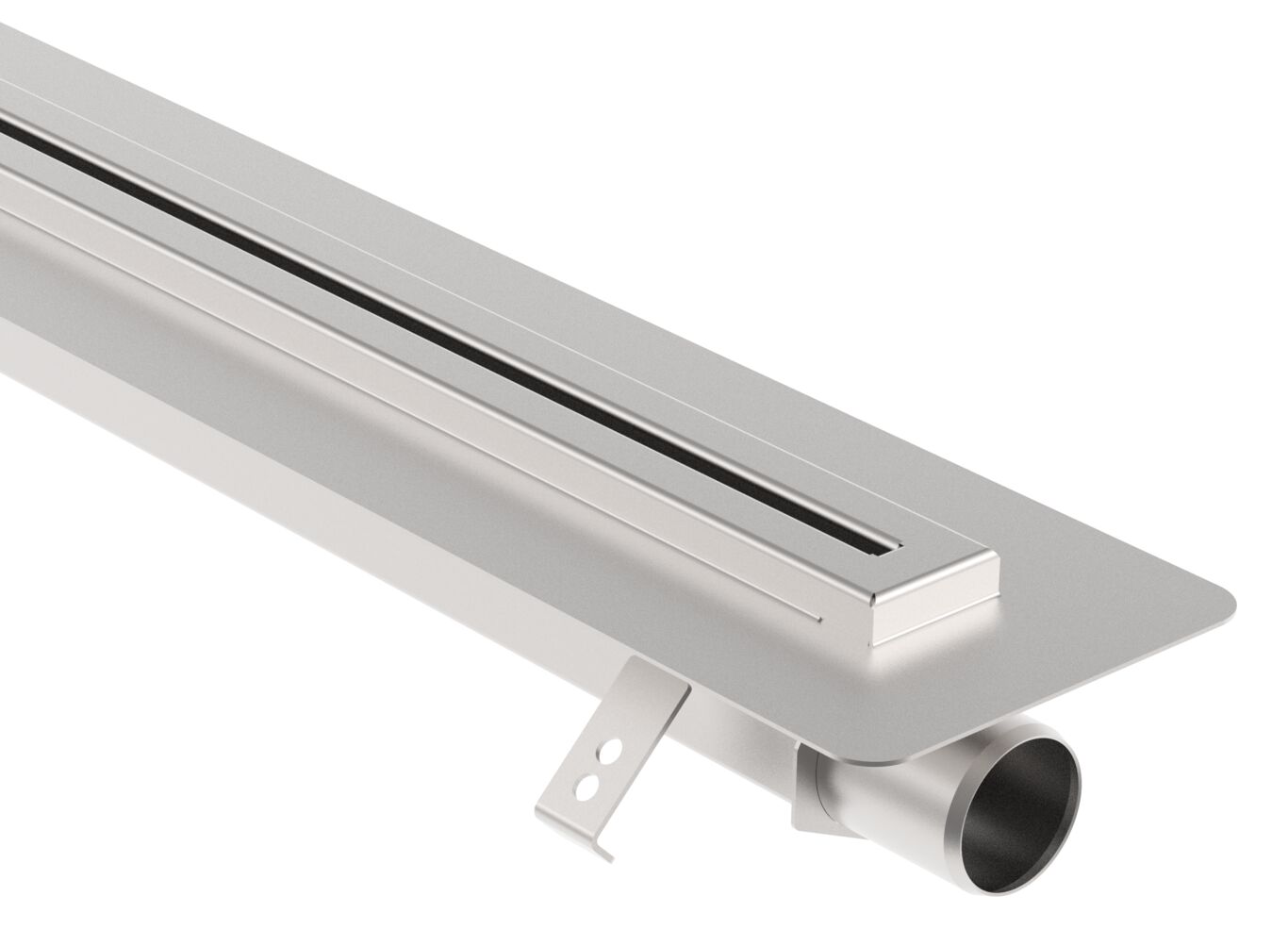

Slot channel with liquid membrane


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

  • The channel is made from 2 mm acid-pickled stainless steel.
  • Designed in accordance with standard EN1253.
  • The longitudinal fall is 0.6% and the cross fall corresponds to 130°.

Select options below for a specific Slot channel-Liquid membrane
