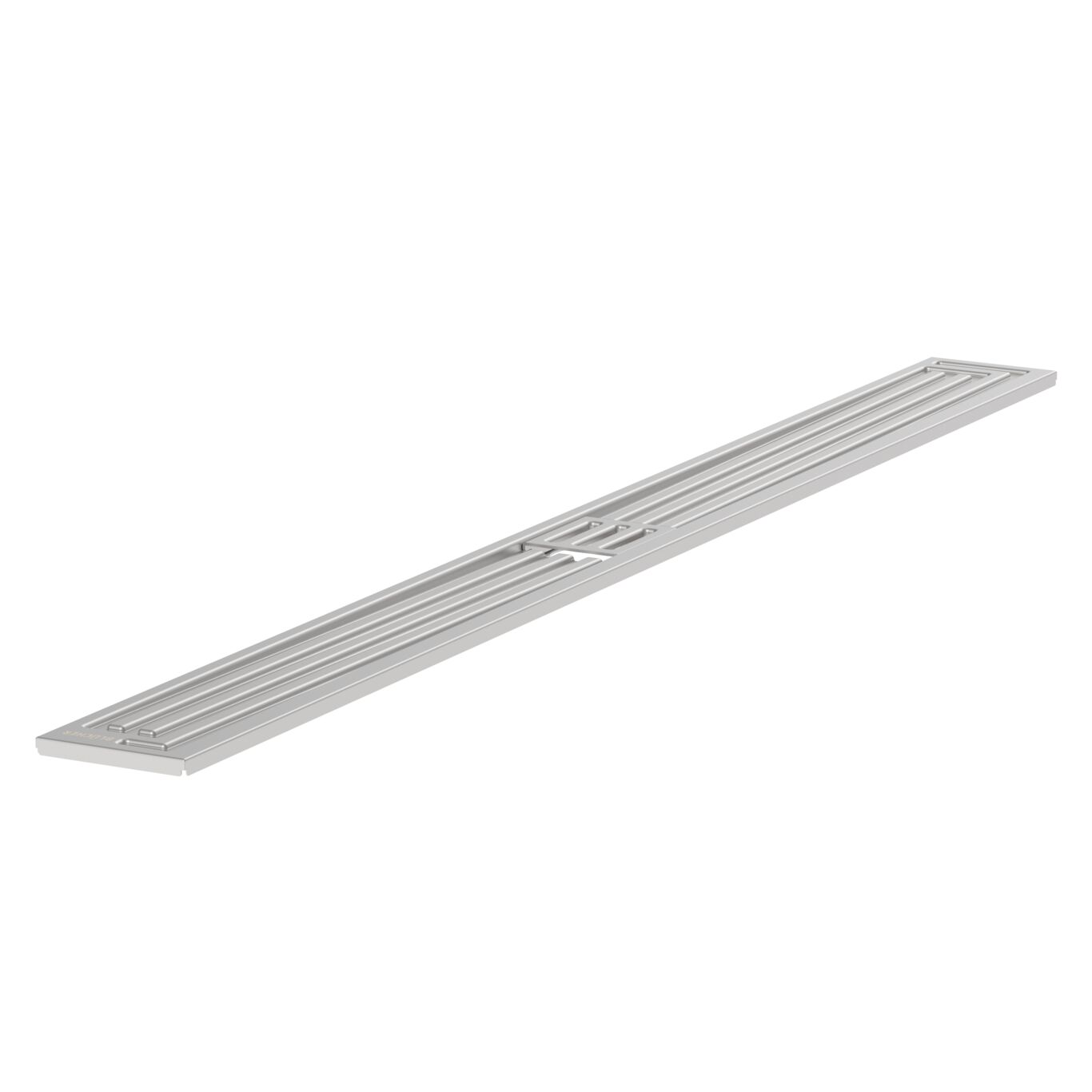

SHOWER CHANNEL ART DECO 900 - (184.090.000.10)

Part Of the Series: Shower channel-No membrane

Type no.: 184.090.000.10

EAN no.: 5705499139570

VVS no.: 155095009

RSK no.: 7129873

NRF no.: 3394668

LVI no.: 3305833

Size: 75x900


Download CAD Collections

2d DWG files

3d STP files

Product Specification
Field of Application Domestic
Floor Concrete / Tiled
Load Class EN1253 K3
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Liquid Membrane
Outlet Box No
Outlet Direction Vertical
Outlet Placement Center
Shape Rectangular
Size (mm) 75x900
Size of Frame (Inch) 3 x 35-3/8
Weight (kg) 0.59
Weight (lbs) 1.3

Traps
