SHOWER CHANNEL WATERLINE 800, SET - (378.080.056.7B)

Part Of the Series: Shower channel-Liquid membrane

Type no.: 378.080.056.7B

EAN no.: 5705499138344

Size: 50x800

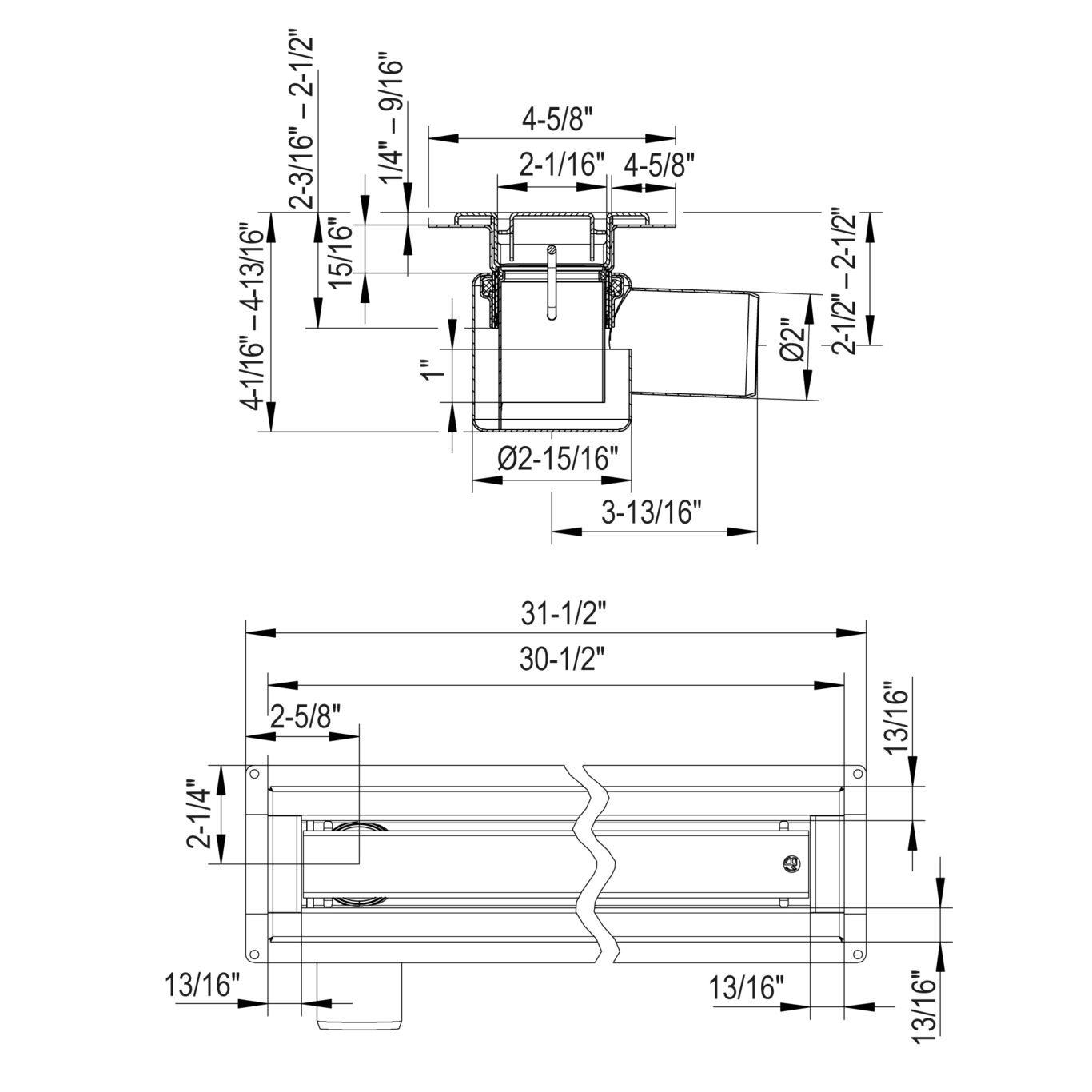

Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Concrete / Tiled
Load Class EN1253 K3
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Liquid Membrane
Outlet Box No
Outlet dia. (mm) 50
Outlet Diameter (Inch) 2
Outlet Direction Horizontal
Outlet Placement End
Shape Rectangular
Size (mm) 50x800
Size of Frame (Inch) 2 x 31-1/2
Weight (kg) 3.32
Weight (lbs) 7.32
