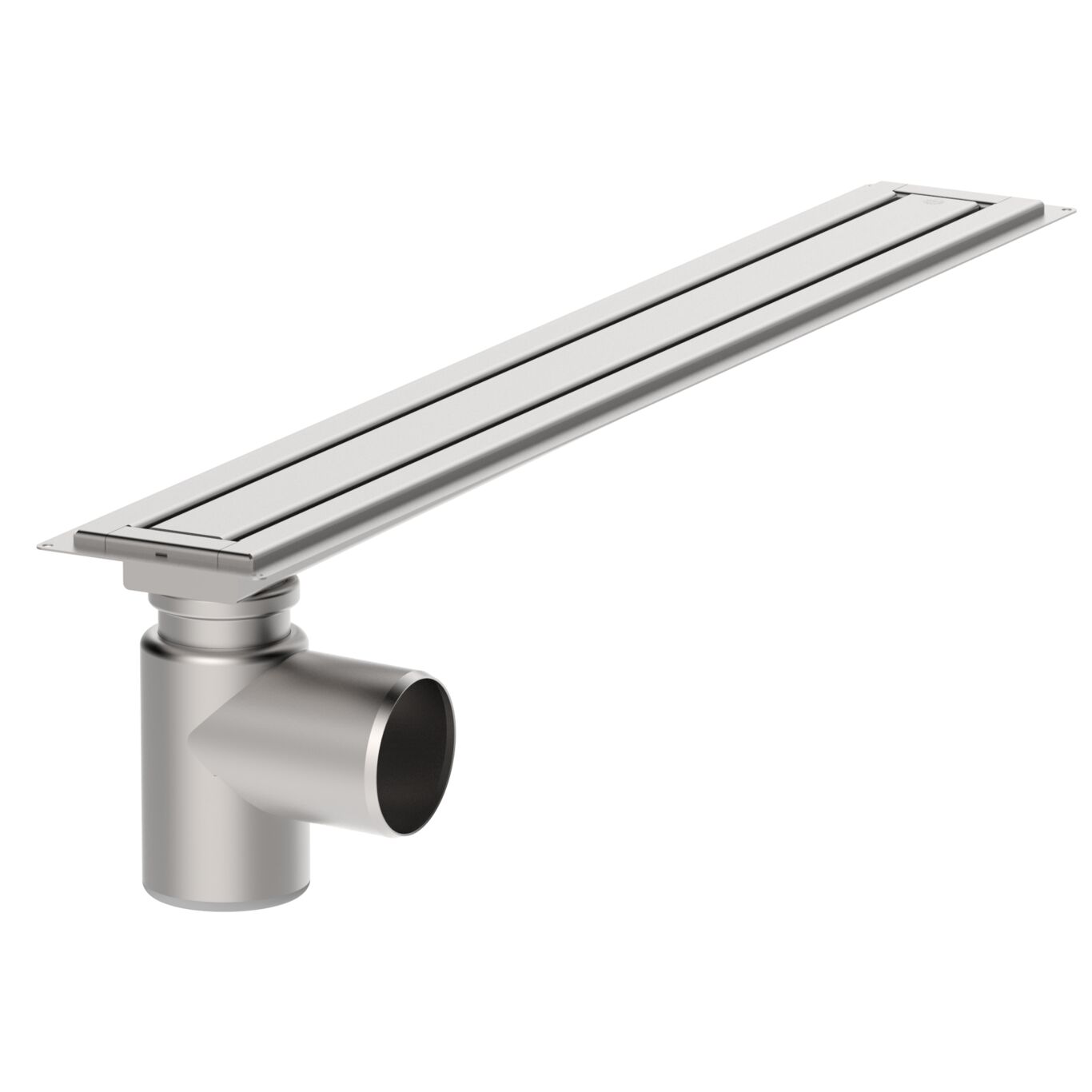

SHOWER CHANNEL WATERLINE 1000, SET - (378.100.056.4B)
×
![]()
Part Of the Series: Shower channel-Liquid membrane
Type no.: 378.100.056.4B
EAN no.: 5705499138214
NRF no.: 3394688
LVI no.: 3304481
Size: 50x1000
SHOWER CHANNEL WATERLINE 1000, SET
-With COPENHAGEN grating
-Floor: concrete and tiled
-Frame: rectangular
-Outlet: Ø3 inch horizontal, inclusive water trap
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Outlet Box | No |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Outlet Direction | Horizontal |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 50x1000 |
| Size of Frame (Inch) | 2 x 39-3/8 |
| Weight (kg) | 4.23 |
| Weight (lbs) | 9.33 |
-
Approval Information
For approval information, please refer to the below approval certificates.
