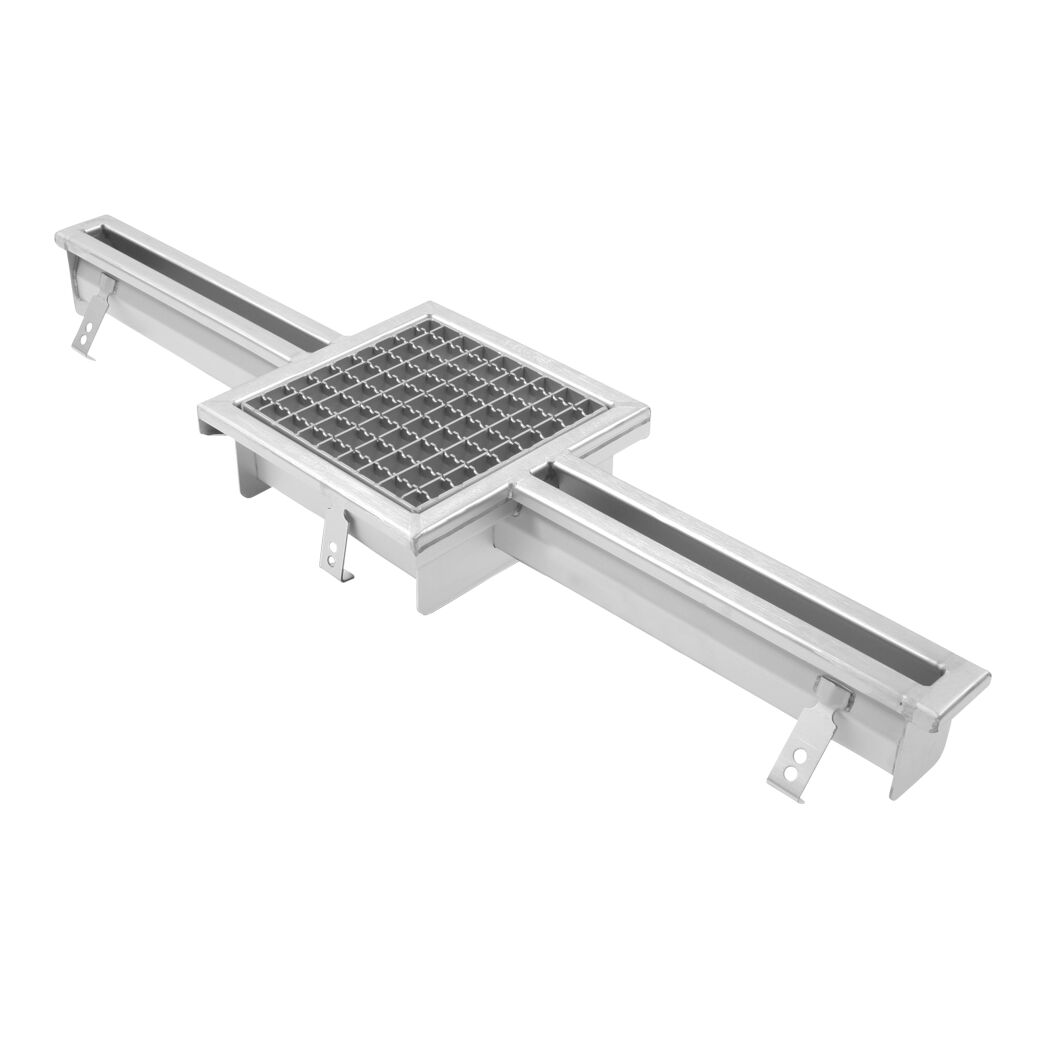

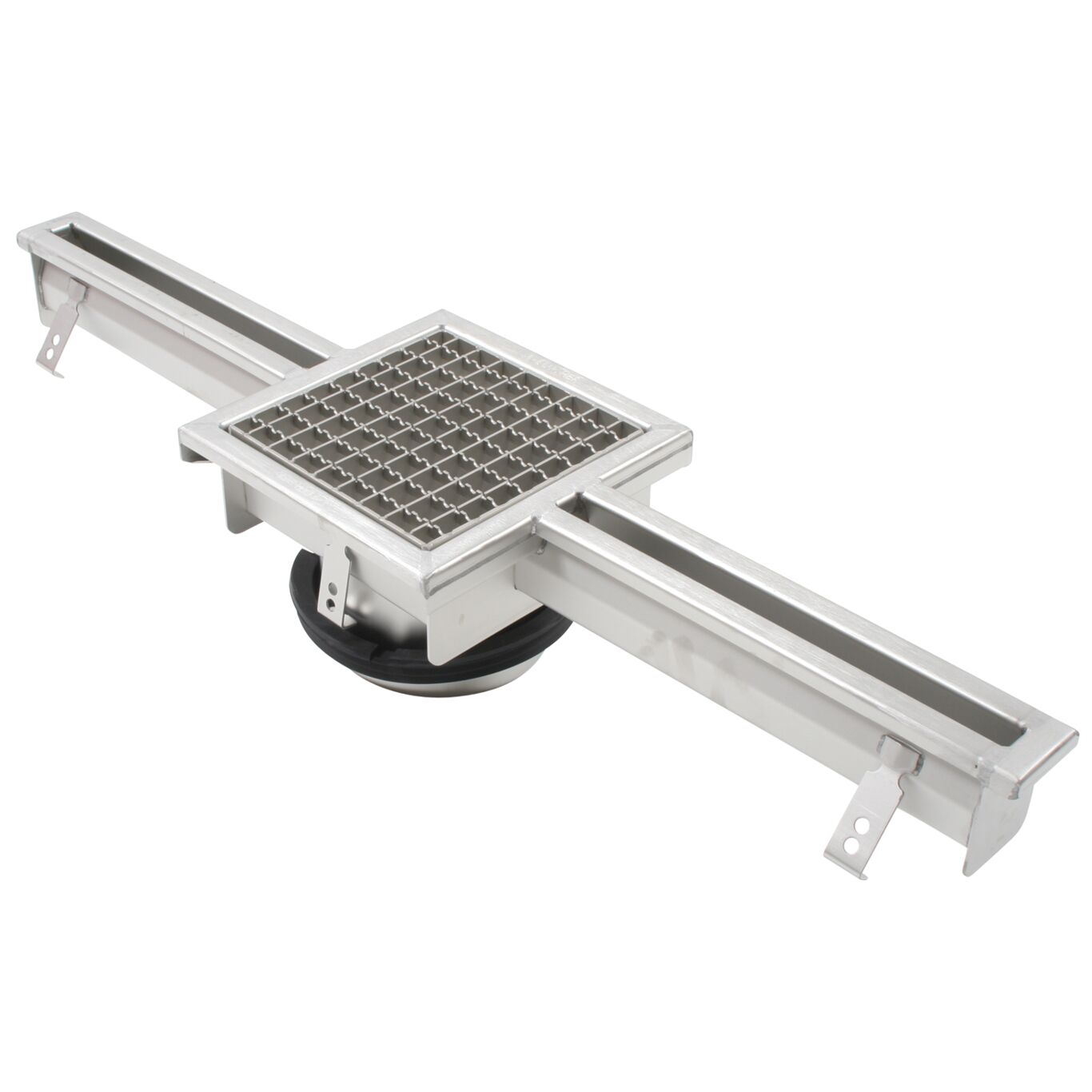

BTS-EC
Slot Channel with Outlet Box
Easy-to-Clean AISI Type 304 stainless steel slot channel. Available in custom lengths, 2-3/8" wide, with 0.5% longitudinal slope and 130-degree cross fall, 13/16" wide drainage slot, and center or end placement of 8"x8" outlet box with spigot outlet. Model options include Type 316L stainless steel (-316), sediment basket (-B), and less outlet box (-LB).
Features
• Ensures support and stability of product installation with 20" braces, removable post-installation
• Integrates with concrete, tiled, and resin flooring
• Requires minimal surface area to take in high volumes of liquid
• Includes baffles to break the force of flow, separate debris, and prevent clogging
• Reduces cleaning time with full-sweep design free of cross bars found in typical slot channels
• Is resistant to chemical solutions and corrosion
Model / Size - Description
BTS-EC 2"(60) W – Specify Length, Outlet Size & Location
Options (Order Suffix / Description)
-316 / Type 316L Stainless Steel
-B / Sediment Basket

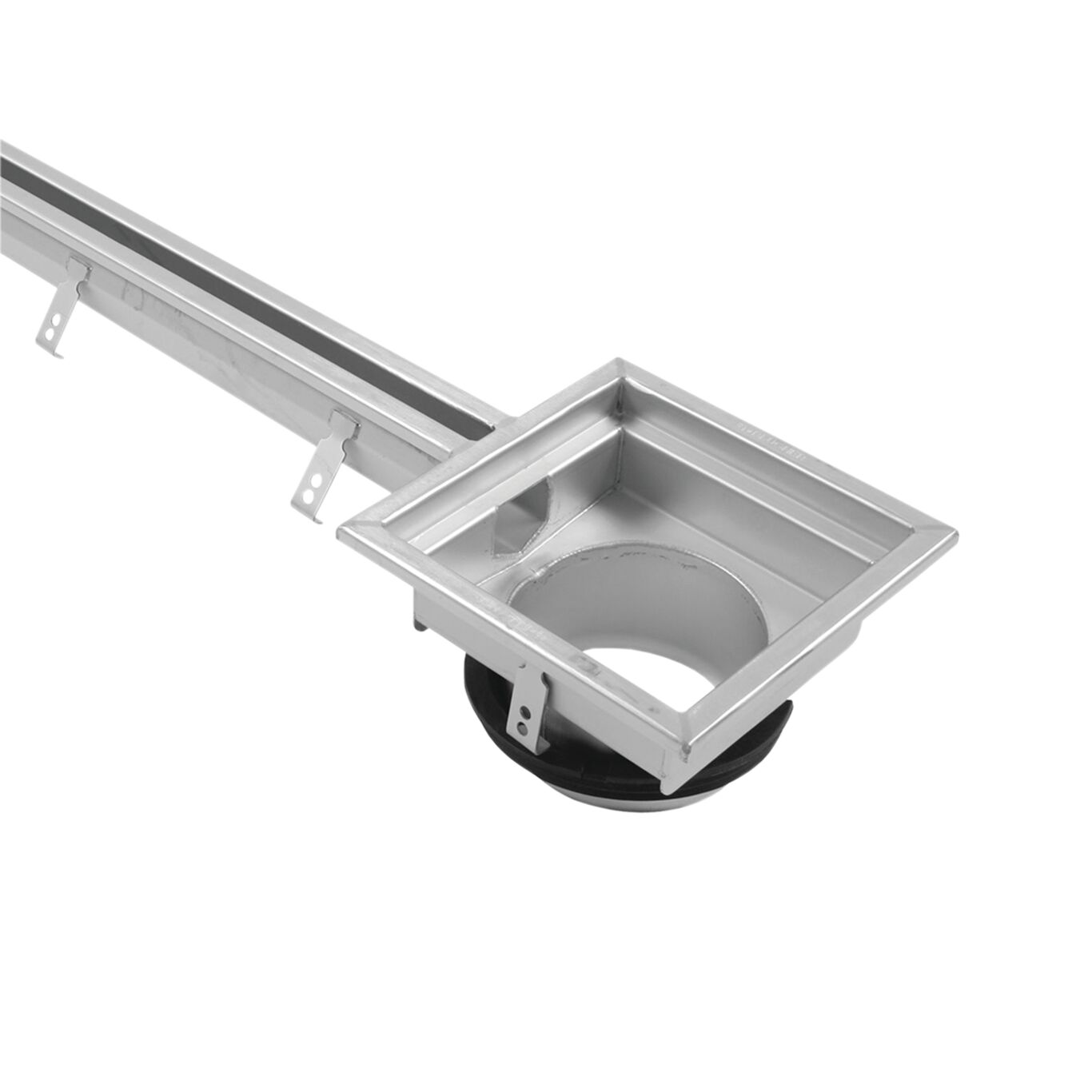

-LB / Less Outlet Box
