STRAIGHT PIPE WITH ONE SOCKET - (811.500.075)
Part Of the Series: Straight pipe
Type no.: 811.500.075
EAN no.: 5705499400953
VVS no.: 160124250
NRF no.: 2170012
LVI no.: 0240140

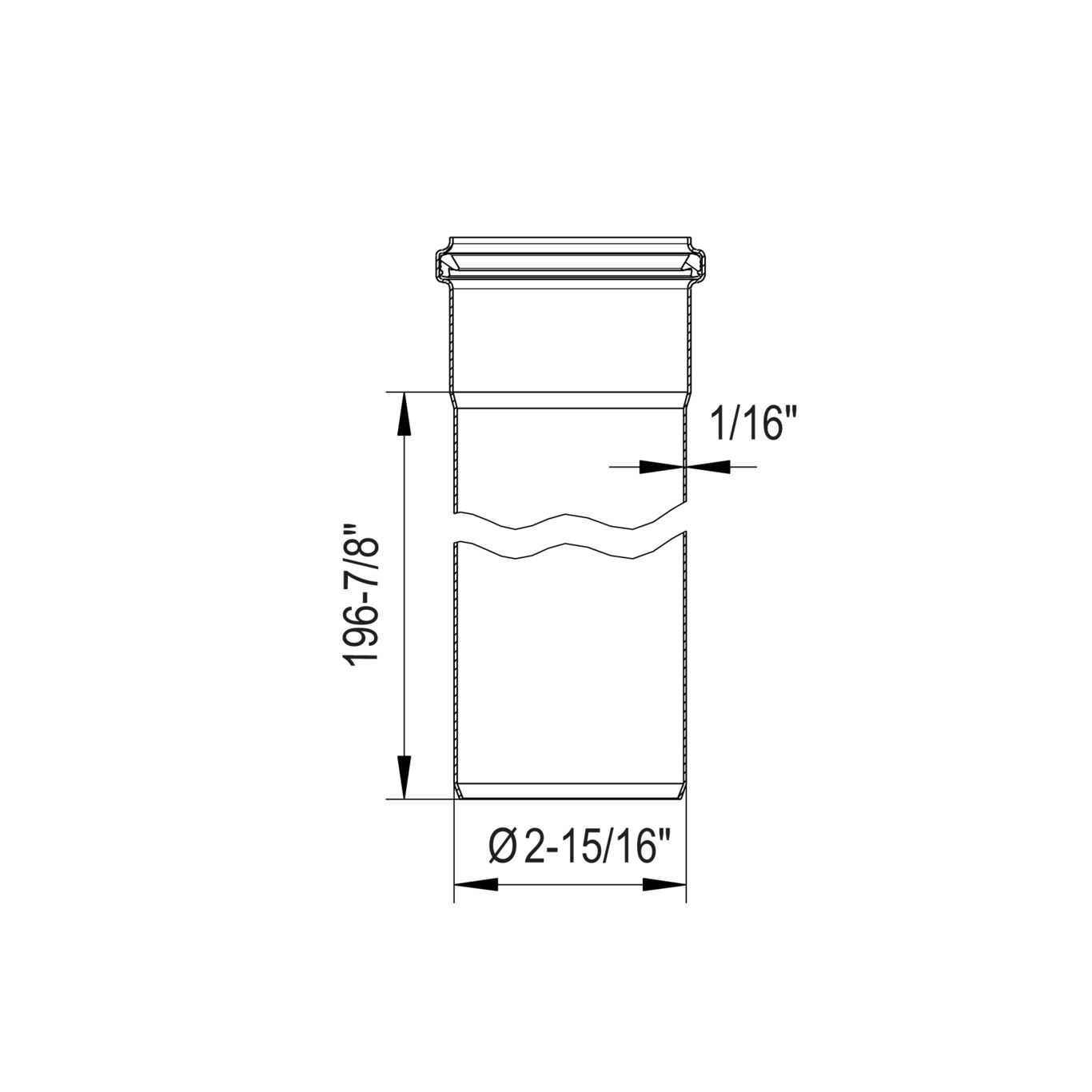

STRAIGHT PIPE WITH ONE SOCKET
-Length: 5000mm
-Diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Length of Straight Pipe (Inch) | 16' 5" |
Length of straight pipe (mm) | 5000 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet dia. (mm) | 75 |
Outlet Diameter (Inch) | 3 |
Weight (kg) | 9.54 |
Weight (lbs) | 21.03 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - 0692-22 EuroPipe FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Europe DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Australasia US - IAPMO File No.3247-EuroPipe Lloyds Register LR22419510TA RINA -MAC285119XG EuroPipe Achilles Certificate - 46702-22 Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev4, Sanitary discharge pipes RS - 22.10018.262 BLÜCHER EuroPipe and Fittings Type approval ABS - LD1716353-PDA KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM RU - 0212322 Pipes-21 PL - Hygienic Certificate - All Products UR - 1055745 Product approval, EuroPipe and Drains
