STRAIGHT PIPE WITH ONE SOCKET - (811.400.040 S)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.400.040 S
EAN no.: 5705499412802
VVS no.: 160120540
NRF no.: 2172488
LVI no.: 0250039

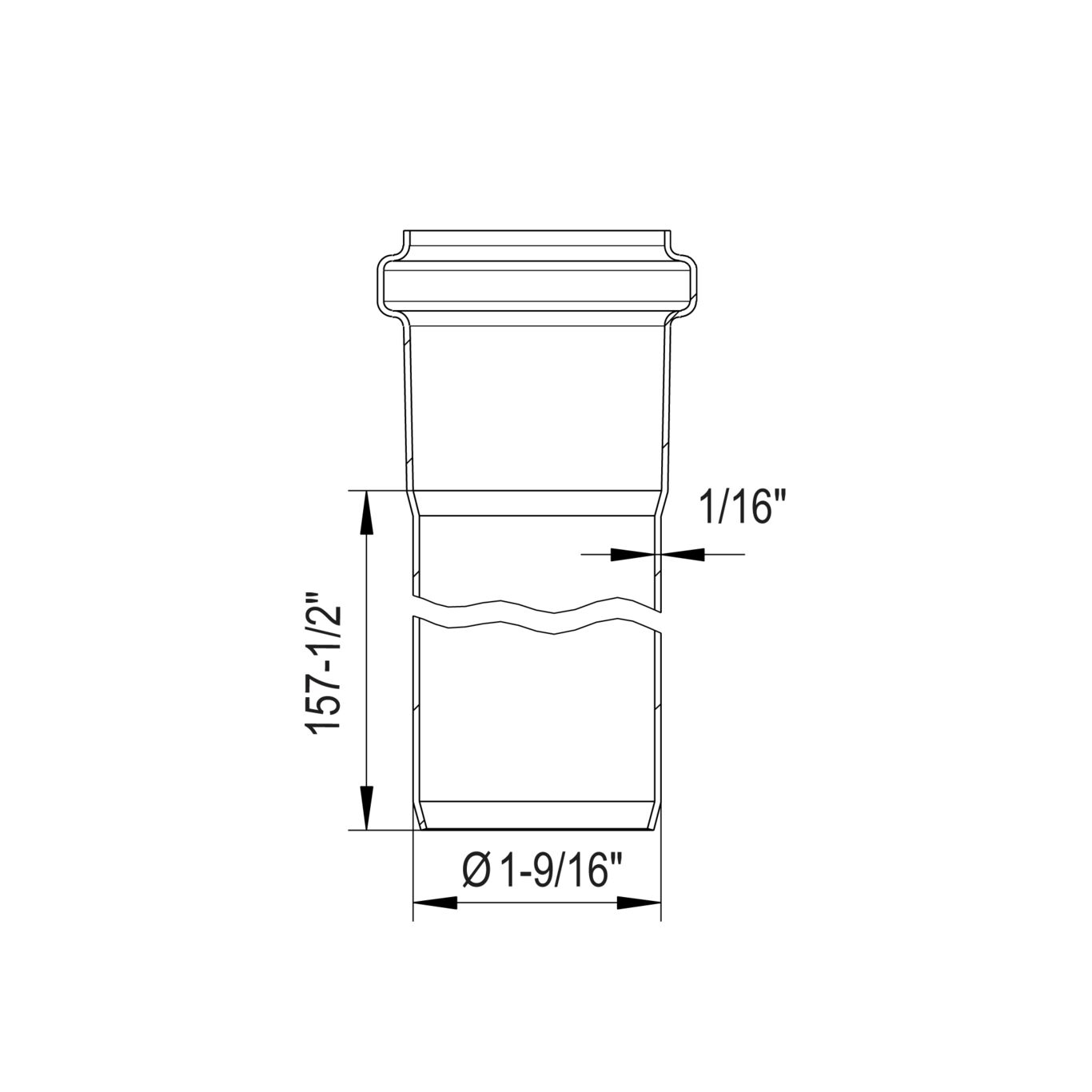

STRAIGHT PIPE WITH ONE SOCKET
-Length: 4000mm
-Diameter: Ø40mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length of Straight Pipe (Inch) | 13' 1" |
| Length of straight pipe (mm) | 4000 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 40 |
| Outlet Diameter (Inch) | 1-1/2 |
| Product Family | EUROPIPE |
| Weight (kg) | 3.92 |
| Weight (lbs) | 8.64 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
DE - TÜV Rheinland R 60178453 0001
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
Declaration of Perfomance EN1124-1-001
BLÜCHER® EuroPipe EPD
US - IAPMO File No.3247-EuroPipe
Declaration of Perfomance BS-EN1124-1-002 RINA -MAC320524XG EuroPipe PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702 ABS - LD1716353-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings TÜRK LOYDU - 25041616077231247 Lloyds Register LR22419510TA
