STRAIGHT PIPE WITH ONE SOCKET - (811.200.040)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.200.040
EAN no.: 5705499412758
VVS no.: 160120200
RSK no.: 1552779
NRF no.: 2171197
LVI no.: 0240037

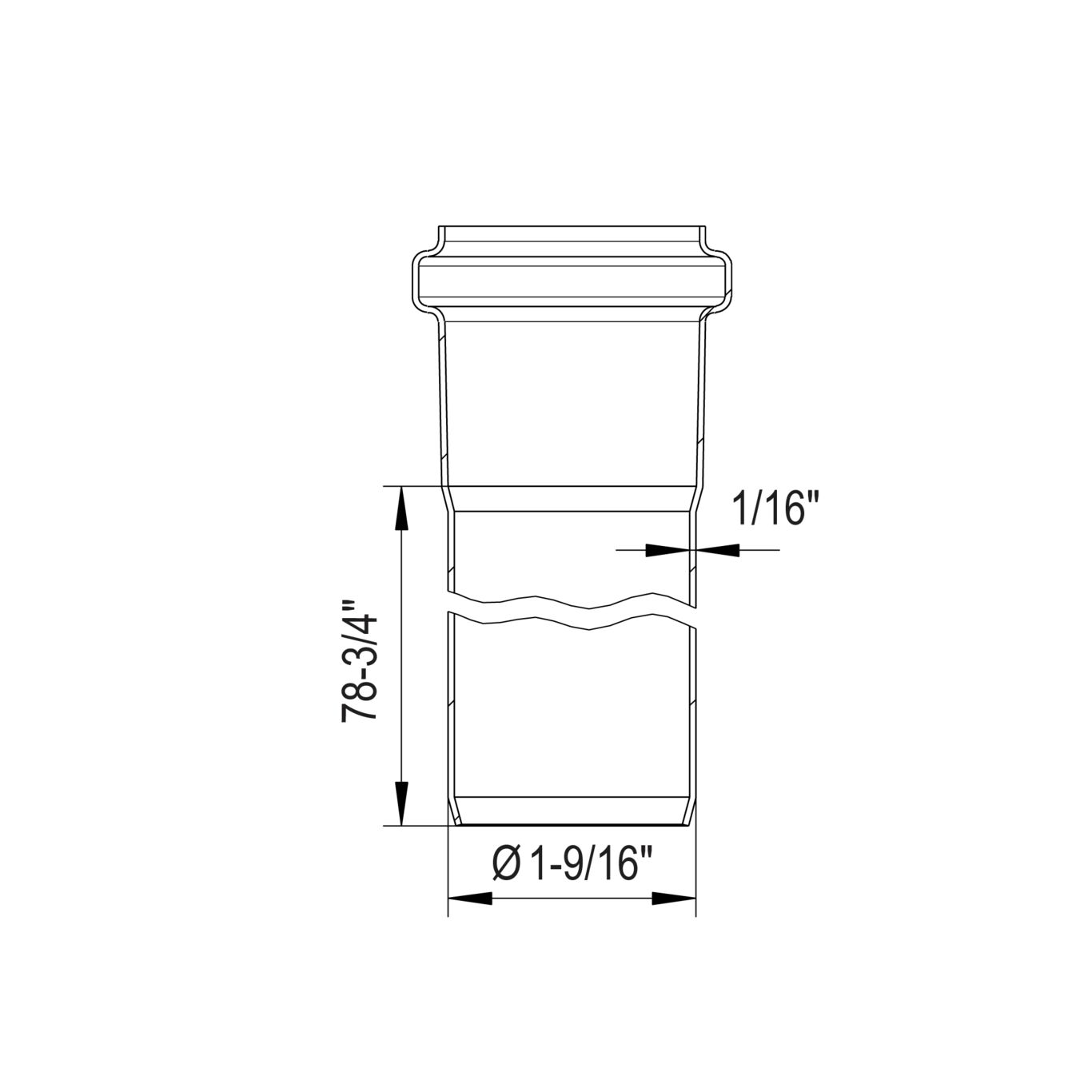

STRAIGHT PIPE WITH ONE SOCKET
-Length: 2000mm
-Diameter: Ø40mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length of Straight Pipe (Inch) | 6' 7" |
| Length of straight pipe (mm) | 2000 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 40 |
| Outlet Diameter (Inch) | 1-1/2 |
| Product Family | EUROPIPE |
| Weight (kg) | 1.99 |
| Weight (lbs) | 4.39 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
Declaration of Perfomance BS-EN1124-1-002
US - IAPMO File No.3247-EuroPipe
DE - TÜV Rheinland R 60178453 0001
BLÜCHER® EuroPipe EPD
HACCP Food Safety Programme - Australasia
Declaration of Perfomance EN1124-1-001
NO - 0692-22 EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products RINA -MAC320524XG EuroPipe KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702 Bureau Veritas, 02375-I0 Pipes & Fittings ABS - LD1716353-PDA Lloyds Register LR22419510TA TÜRK LOYDU - 25041616077231247
