STRAIGHT PIPE WITH ONE SOCKET - (811.100.200)
Part Of the Series: Straight pipe
Type no.: 811.100.200
EAN no.: 5705499412338
VVS no.: 160134100
RSK no.: 1550193
NRF no.: 2168932
LVI no.: 0240333

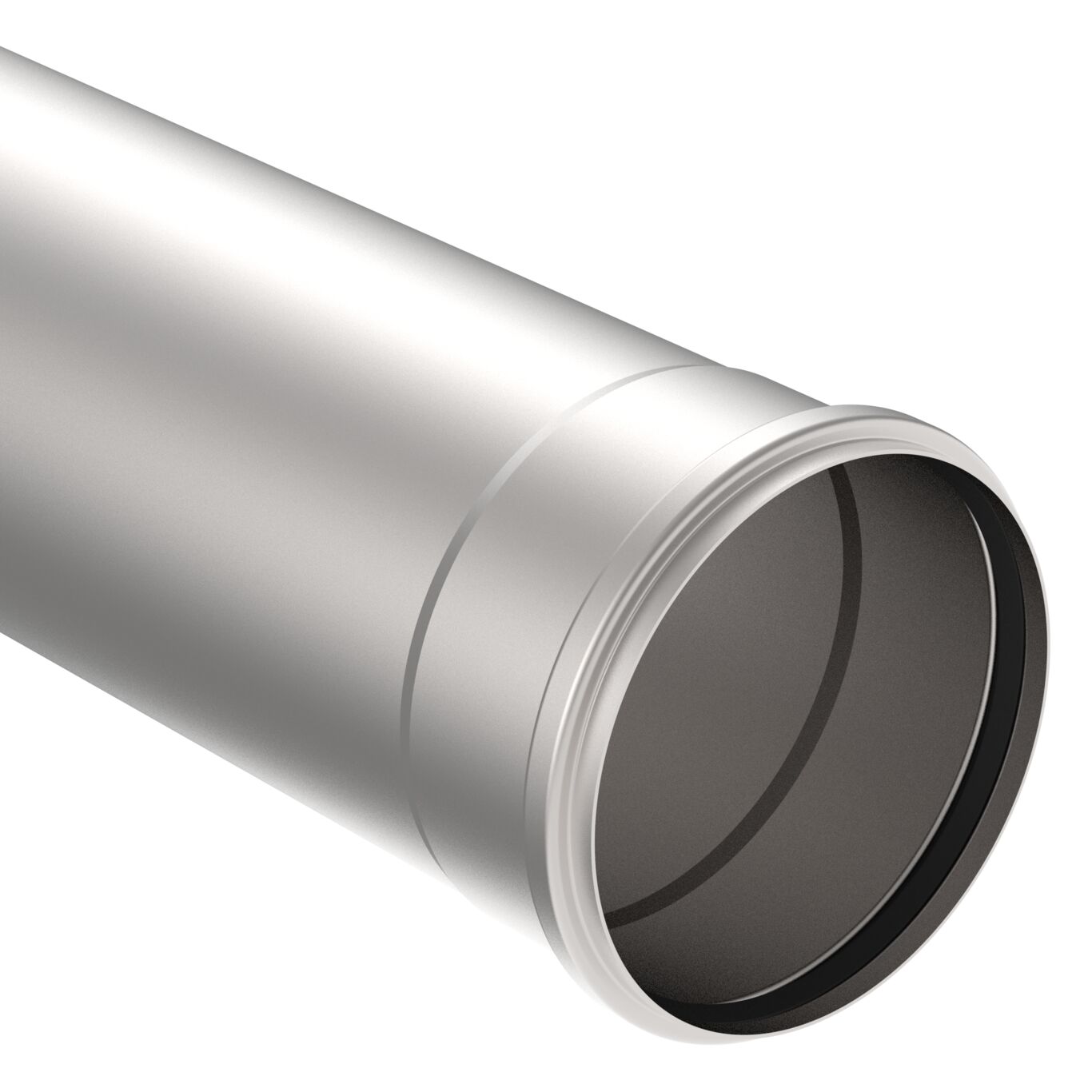

STRAIGHT PIPE WITH ONE SOCKET
-Length: 1000mm
-Diameter: Ø200mm
-Stainless steel: AISI304/EN1.4301

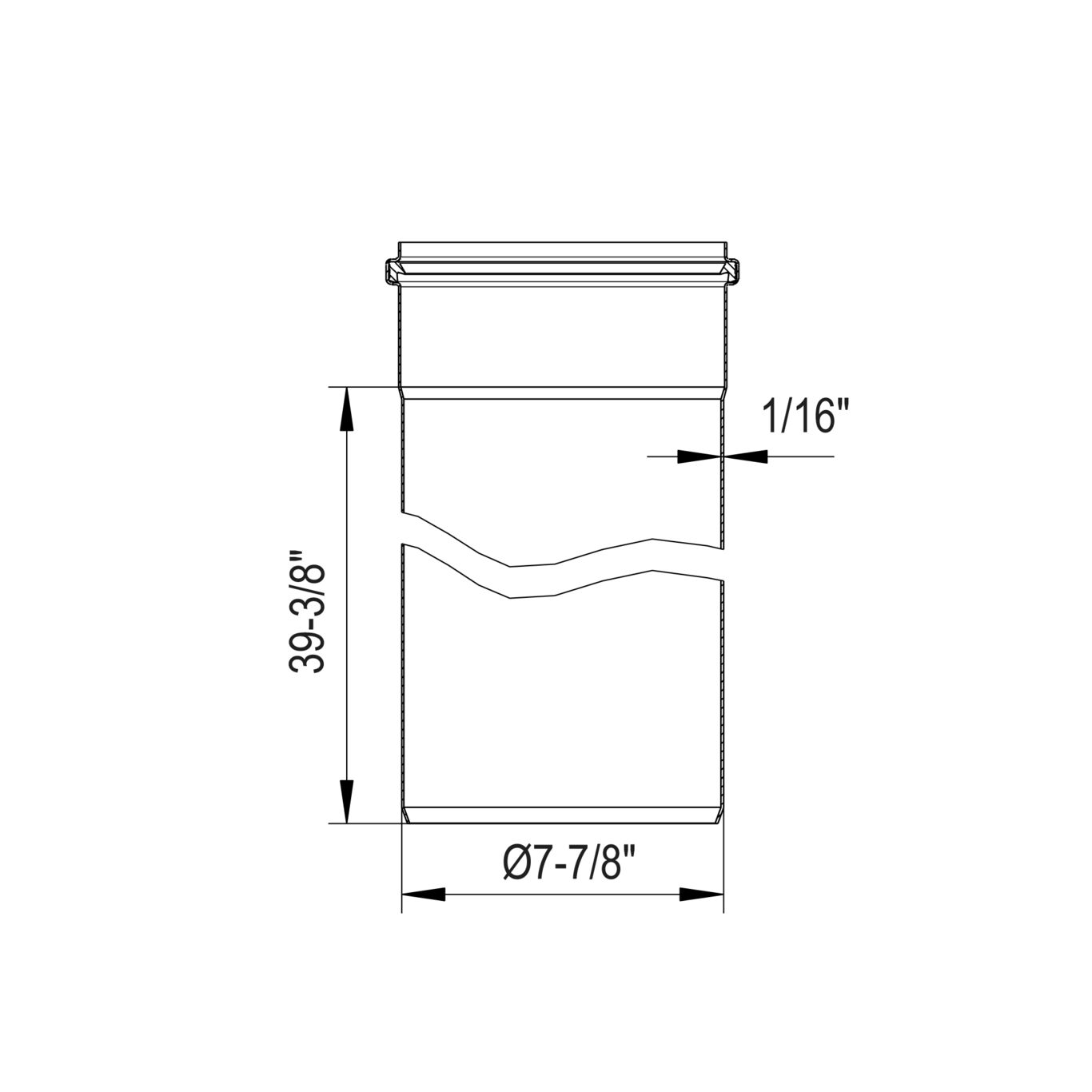

Product Specification | |
---|---|
Length of Straight Pipe (Inch) | 3' 3" |
Length of straight pipe (mm) | 1000 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet dia. (mm) | 200 |
Outlet Diameter (Inch) | 8 |
Weight (kg) | 8.32 |
Weight (lbs) | 18.34 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432 US - IAPMO File No.3247-EuroPipe FR - DTA 14.1/12-1811_V3 EuroPipe DK - VA 2.12/19350 NO - 0692-22 EuroPipe HACCP Food Safety Programme - Australasia HACCP Food Safety Programme - Europe RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev4, Sanitary discharge pipes Achilles Certificate - 46702-22 Lloyds Register LR22419510TA PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 ABS - LD1716353-PDA Bureau Veritas, 02375-I0 Pipes & Fittings RS - 22.10018.262 BLÜCHER EuroPipe and Fittings Type approval UR - 1055745 Product approval, EuroPipe and Drains MARINE - R4547 NATO CODIFICATION SYSTEM RU - 0212322 Pipes-21
