STRAIGHT PIPE WITH ONE SOCKET - (811.075.050)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.075.050
EAN no.: 5705499400441
VVS no.: 160122075
RSK no.: 1550034
NRF no.: 2170024
LVI no.: 0240084

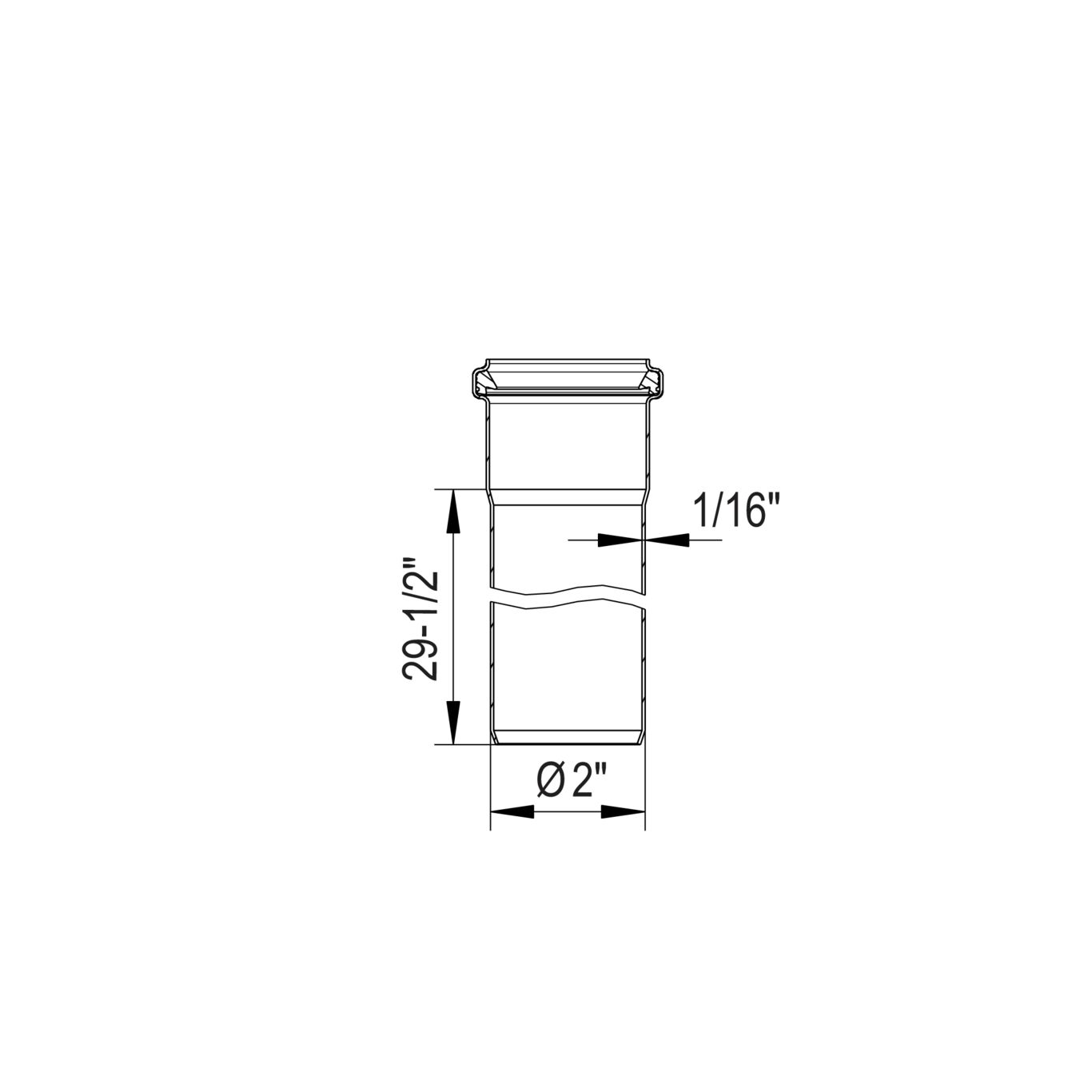

STRAIGHT PIPE WITH ONE SOCKET
-Length: 750mm
-Diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length of Straight Pipe (Inch) | 2' 6" |
| Length of straight pipe (mm) | 750 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 1 |
| Weight (lbs) | 2.2 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe
DE - LGA Certificate 57214035 a
AUS - WMKT00204 - 24 DNV - TAP0000023-rev5, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702-22 Lloyds Register LR22419510TA RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products ABS - LD1716353-PDA
