STRAIGHT PIPE WITH ONE SOCKET - (811.050.160)
Part Of the Series: Straight pipe
Type no.: 811.050.160
EAN no.: 5705499400427
VVS no.: 160132050
RSK no.: 1550160
NRF no.: 2168909
LVI no.: 0240233

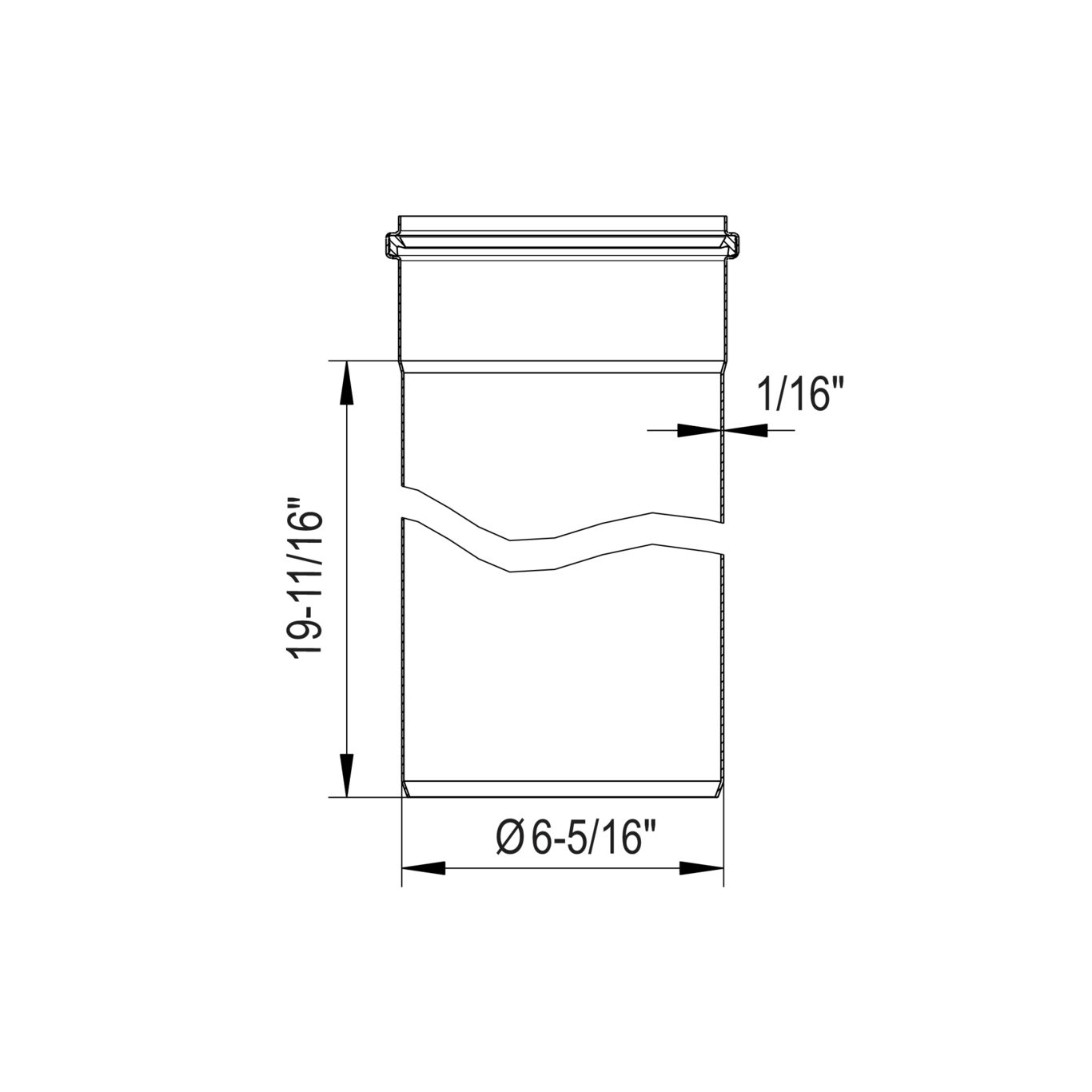

STRAIGHT PIPE WITH ONE SOCKET
-Length: 500mm
-Diameter: Ø160mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Length of Straight Pipe (Inch) | 1' 8" |
Length of straight pipe (mm) | 500 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet dia. (mm) | 160 |
Outlet Diameter (Inch) | 6 |
Weight (kg) | 2.96 |
Weight (lbs) | 6.53 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - 0692-22 EuroPipe HACCP Food Safety Programme - Australasia US - IAPMO File No.3247-EuroPipe FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Europe DK - VA 2.12/19350 DK - VA 2.12/19349 EuroPipe DS432 AUS - WMKT00204 - 24 RU - 0212322 Pipes-21 PL - Hygienic Certificate - All Products RS - 22.10018.262 BLÜCHER EuroPipe and Fittings Type approval DNV - TAP0000023-rev4, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702-22 MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA RINA -MAC285119XG EuroPipe UR - 1055745 Product approval, EuroPipe and Drains Bureau Veritas, 02375-I0 Pipes & Fittings ABS - LD1716353-PDA
