STRAIGHT PIPE WITH ONE SOCKET - (811.025.075)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.025.075
EAN no.: 5705499400304
VVS no.: 160124025
RSK no.: 1550039
NRF no.: 2170013
LVI no.: 0240132

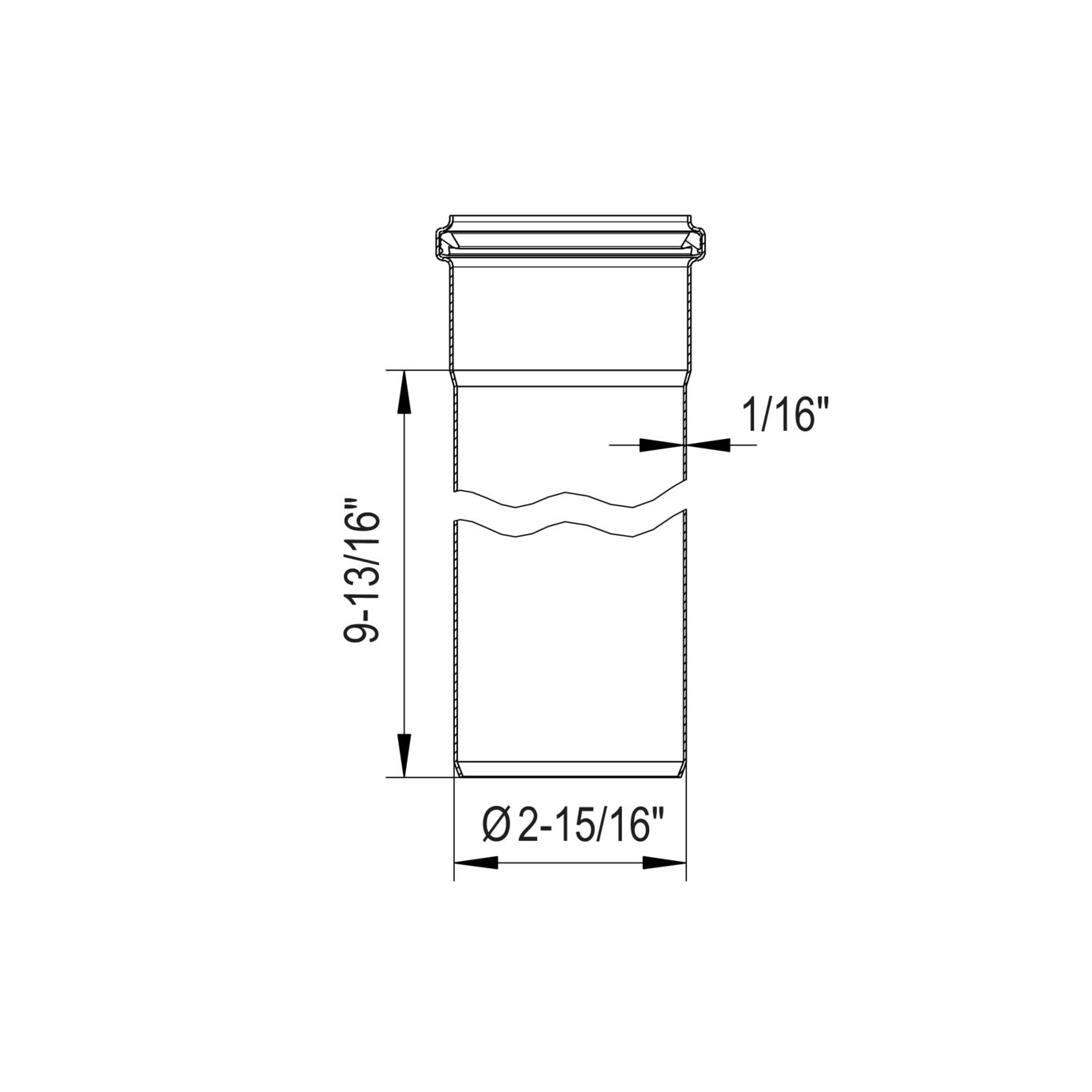

STRAIGHT PIPE WITH ONE SOCKET
-Length: 250mm
-Diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length of Straight Pipe (Inch) | 0' 10" |
| Length of straight pipe (mm) | 250 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Weight (kg) | 0.58 |
| Weight (lbs) | 1.28 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Europe
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe
BLÜCHER® EuroPipe EPD
NO - 0692-22 EuroPipe
DE - TÜV Rheinland R 60178453 0001 RINA -MAC320524XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM TÜRK LOYDU - 25041616077231247 Lloyds Register LR22419510TA Achilles Certificate - 46702 ABS - LD1716353-PDA KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products
