STRAIGHT PIPE WITH ONE SOCKET - (811.025.050 S)
Part Of the Series: Straight pipe
Type no.: 811.025.050 S
EAN no.: 5705499400298
VVS no.: 160122325
RSK no.: 1550232
NRF no.: 2170681
LVI no.: 0250082

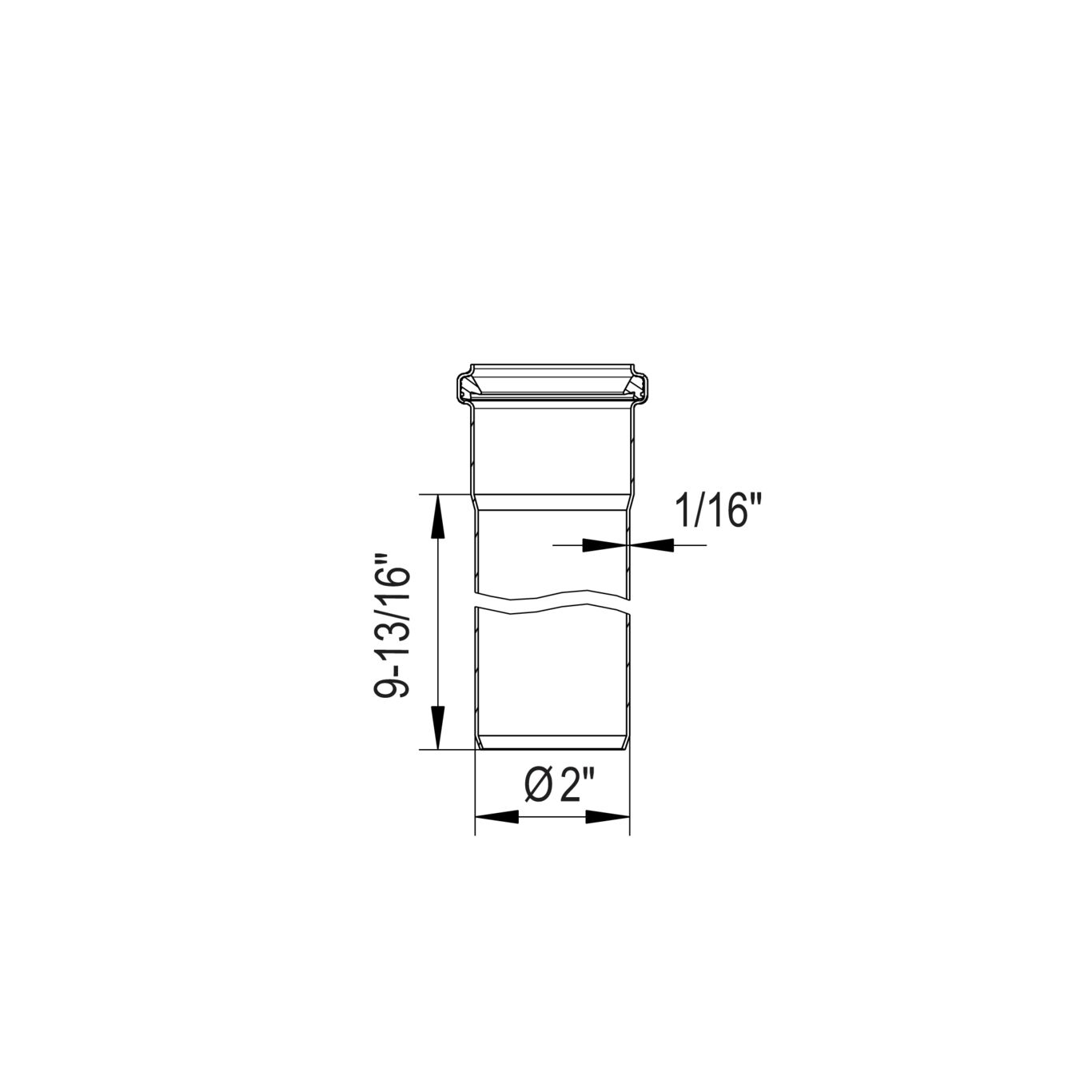

STRAIGHT PIPE WITH ONE SOCKET
-Length: 250mm
-Diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Length of Straight Pipe (Inch) | 0' 10" |
Length of straight pipe (mm) | 250 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (mm) | 50 |
Outlet Diameter (Inch) | 2 |
Weight (kg) | 0.38 |
Weight (lbs) | 0.84 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - 0692-22 EuroPipe FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Australasia DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe AUS - WMKT00204 - 24 US - IAPMO File No.3247-EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702-22 RINA -MAC285119XG EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM ABS - LD1716353-PDA Lloyds Register LR22419510TA DNV - TAP0000023-rev4, Sanitary discharge pipes RS - 22.10018.262 BLÜCHER EuroPipe and Fittings Type approval RU - 0212322 Pipes-21 KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products
