EXPANSION SOCKET - (843.095.040 S)
×
![]()
Part Of the Series: Expansion socket
Type no.: 843.095.040 S
EAN no.: 5705499413083
VVS no.: 160268340
RSK no.: 1552766
NRF no.: 2172658
LVI no.: 0253331

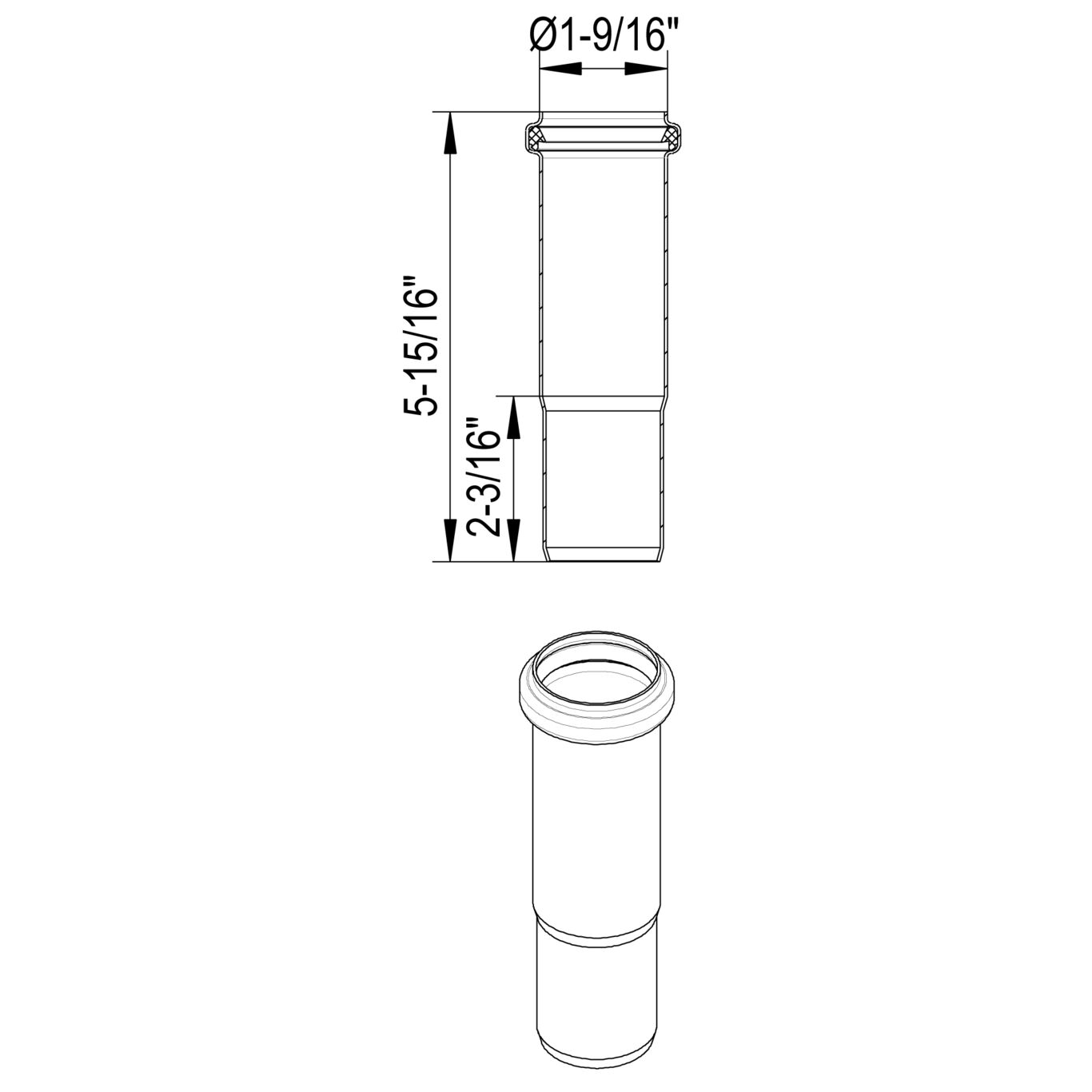

EXPANSION SOCKET
-Diameter: Ø40mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length (mm) | 55 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 40 |
| Outlet Diameter (Inch) | 1-1/2 |
| Weight (kg) | 0.17 |
| Weight (lbs) | 0.37 |
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
DE - TÜV Rheinland R 60178453 0001
HACCP Food Safety Programme - Australasia
FR - DTA 14.1/12-1811_V3 EuroPipe ABS - LD1716353-PDA KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA TÜRK LOYDU - 25041616077231247 PL - Hygienic Certificate - All Products RINA -MAC320524XG EuroPipe
