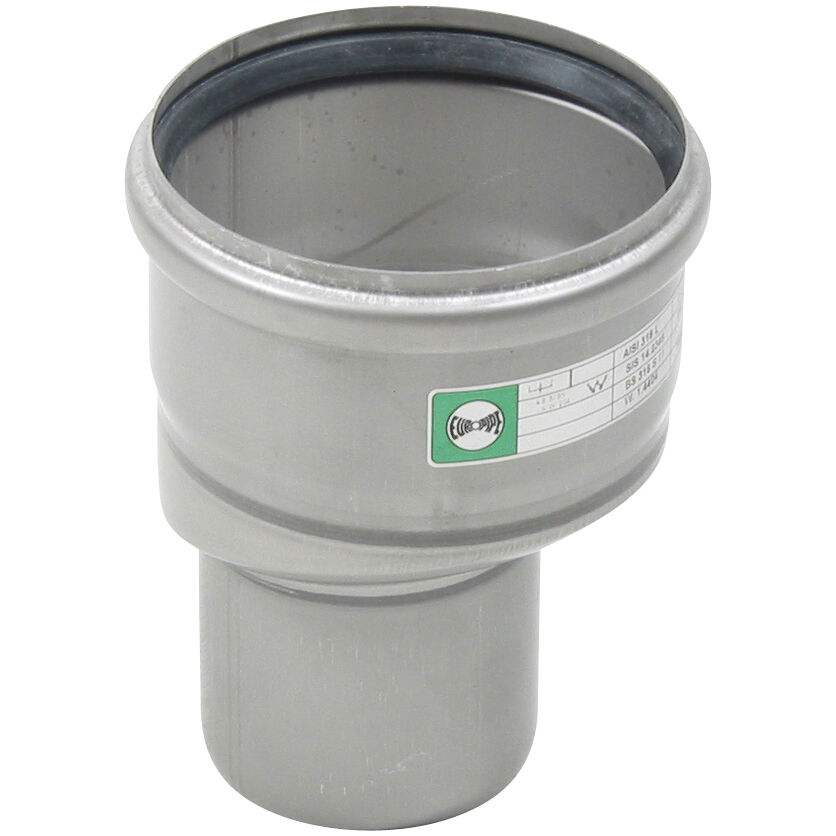

REDUCER ECCENTRIC - (850.110.075 S)
Part Of the Series: Reducer-eccentric
Type no.: 850.110.075 S
EAN no.: 5705499403190
VVS no.: 160261407
RSK no.: 1550392
NRF no.: 2170946
LVI no.: 0252359

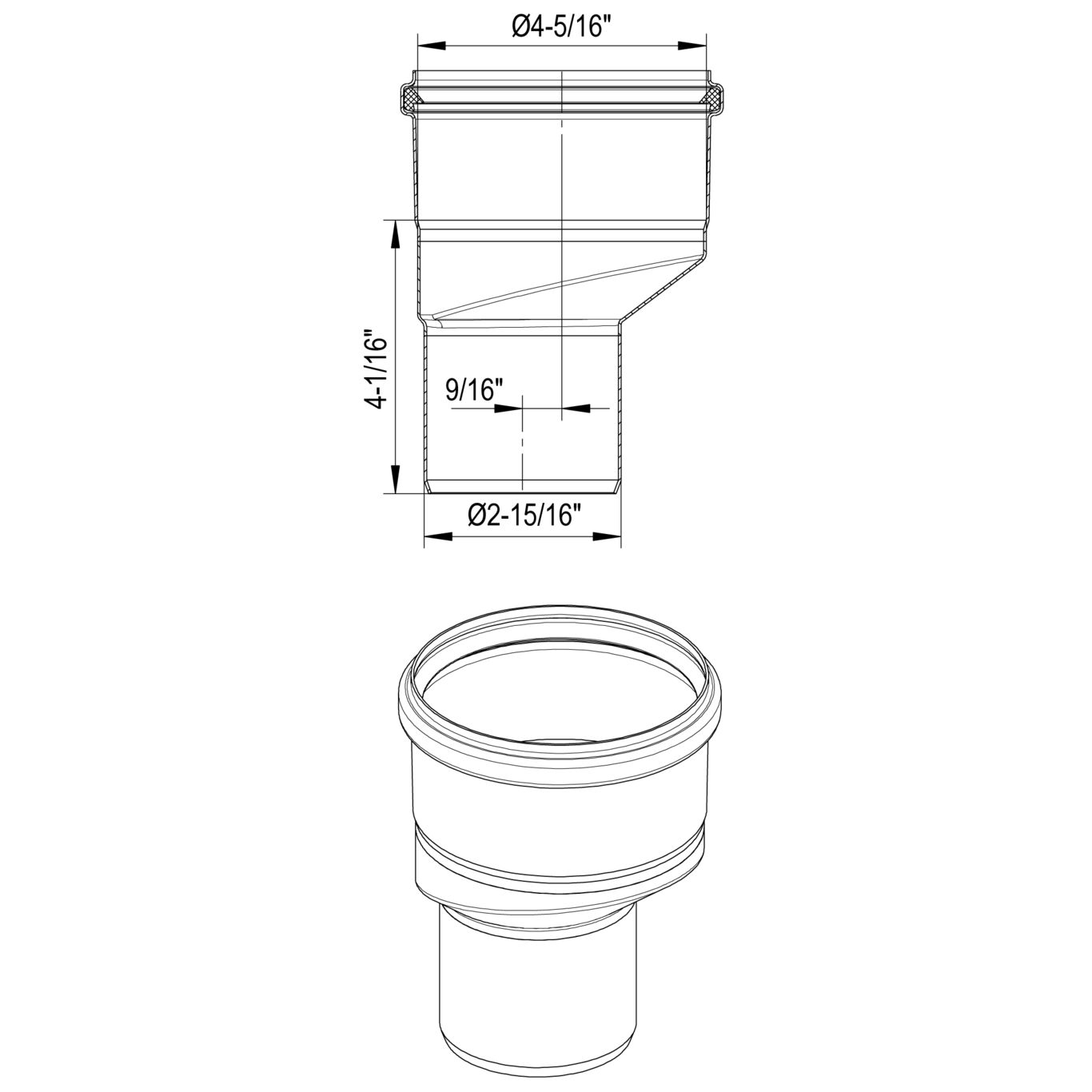

REDUCER ECCENTRIC
-Diameter: Ø110mm to Ø75mm
-Stainless steel: AISI316L/EN1.4404
Part of USA order number: BFD-343-SO
| Product Specification | |
|---|---|
| Length (mm) | 104 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Weight (kg) | 0.55 |
| Weight (lbs) | 1.21 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-19
DK - VA 2.12/19349-19
NO - 0692-22
FR - DTA 14.1/12-1811*V2 EuroPipe
AUS - WMKT00204 - 18B KR - Type Approval CPH42135-PE001 RS - 22.10018.262 Achilles Certificate - 25316-21 Lloyds Register 92-00041 (E7) MARINE - R4547 NATO CODIFICATION SYSTEM RU - 0212322 Pipes-21 UR - 1055745 RINA -MAC285119XG EuroPipe DNVGL - TAP0000023-rev2 Bureau Veritas, 02375-H0 ABS - 18-LD1716353-PDA PL - Hygienic Certificate - All products
