REDUCER CONCENTRIC - (850.050.032 S)
×
![]()
Part Of the Series: Reducer-concentric
Type no.: 850.050.032 S
EAN no.: 5705499403053
NRF no.: 2172682
LVI no.: 0252181

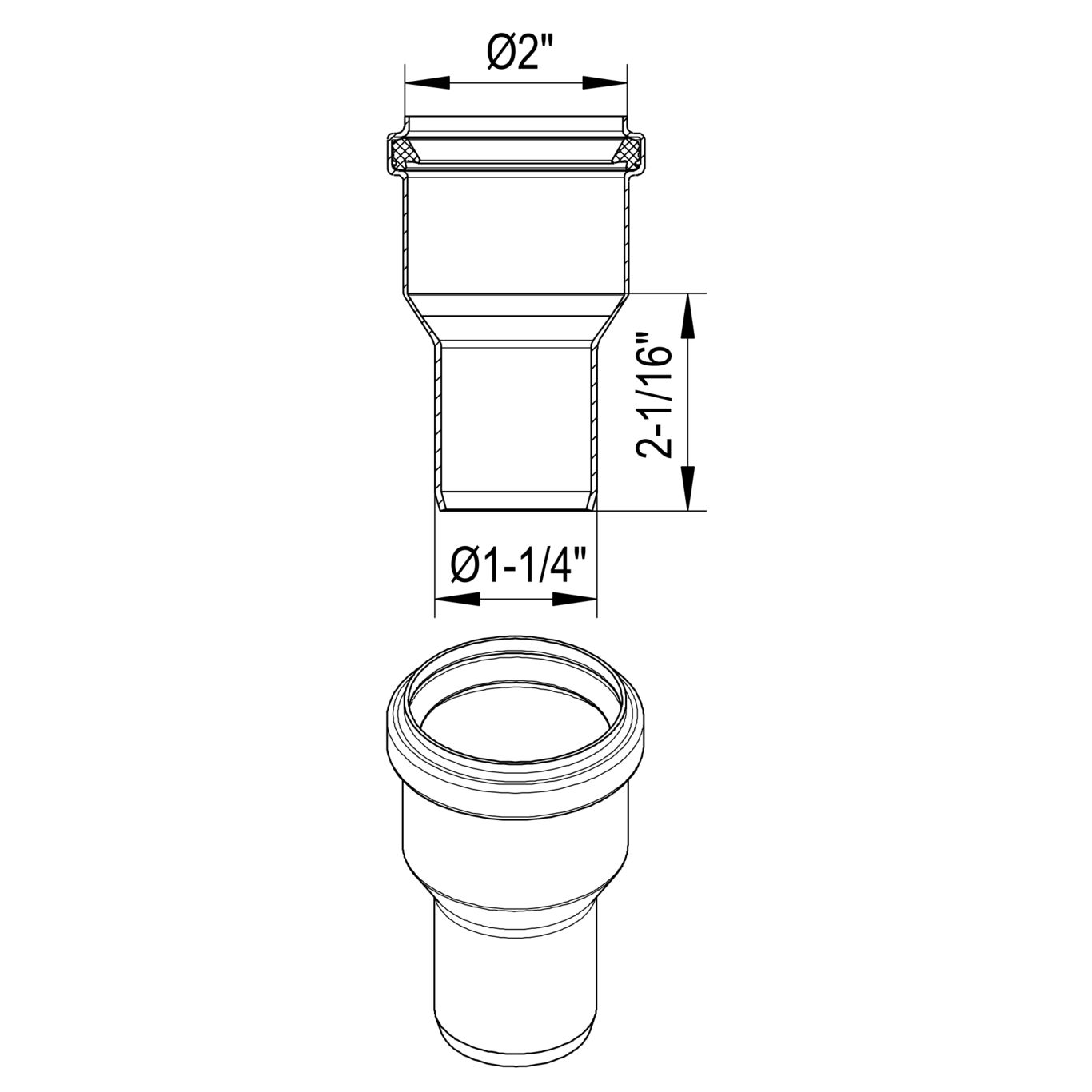

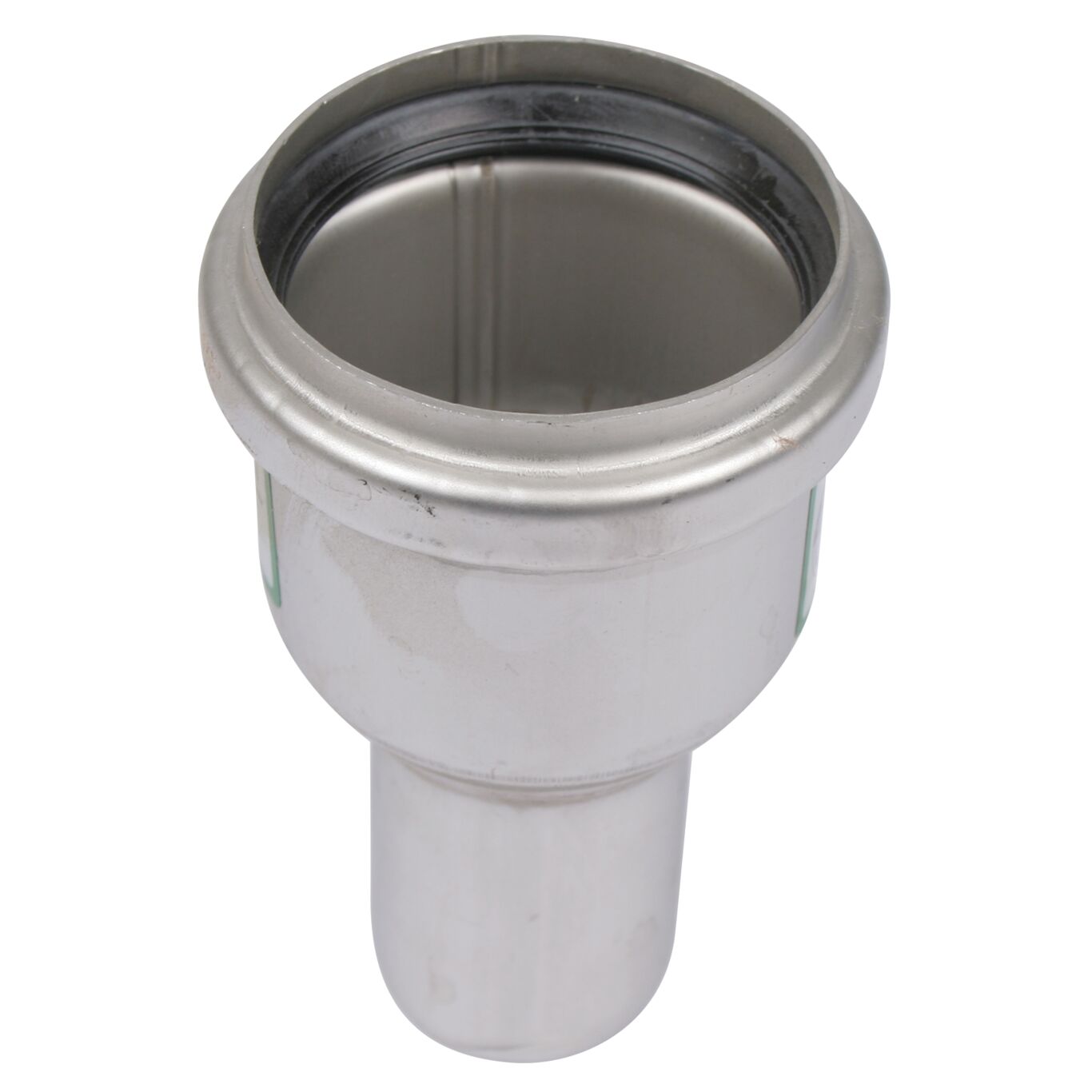

REDUCER CONCENTRIC
-Diameter: Ø50mm to Ø32mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length (mm) | 52 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 32 |
| Outlet Diameter (Inch) | 1-1/4 |
| Weight (kg) | 0.15 |
| Weight (lbs) | 0.33 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DE - TÜV Rheinland R 60178453 0001
BLÜCHER® EuroPipe EPD
Declaration of Perfomance EN1124-1-001
HACCP Food Safety Programme - Europe
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
Declaration of Perfomance BS-EN1124-1-002 RINA -MAC320524XG EuroPipe TÜRK LOYDU - 25041616077231247 Lloyds Register LR22419510TA KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products ABS - LD1716353-PDA
