WB-90-316

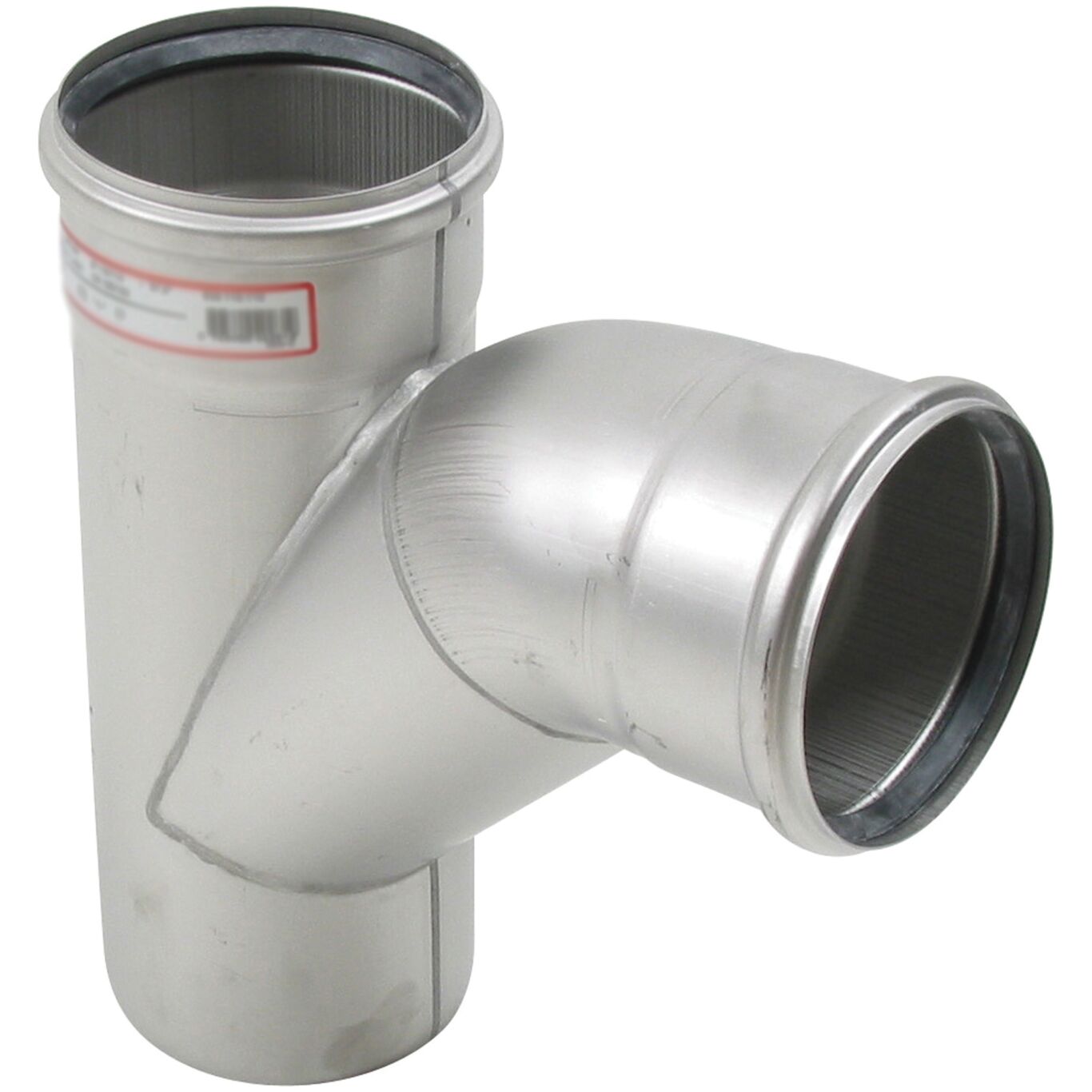

Combination Wye and 1/8 Bend
Combination Wye and 1/8 Bend AISI Type 316L (standard) stainless steel pipe fitting with push-fit socket connection and embedded EPDM (standard) sealing ring. Treated with pickling and passivation finish process. Model options available in 2" to 12" pipe size with branch diameter from 2" to 12".
Features
• Fits commercial, industrial, and marine applications
• Reduces friction of flow with 45-degree angled branch
• Provides durability from stainless steel
• Requires only a single person for installation due to lightweight construction
• Eases installation with push-fit connections
• Is corrosion-resistant
Global / US Order # / Description
839.050.050 AS /WB-2x2-90-316 / 2"(50) x 2"(50) 45° Stainless Steel Combo Wye
839.050.075 AS / WB-3x2-90-316 / 3"(75) x 2"(50) 45° Stainless Steel Combo Wye
839.050.110 AS / WB-4x2-90-316 / 4"(110) x 2"(50) 45° Stainless Steel Combo Wye
839.075.075 AS / WB-3x3-90-316 / 3"(75) x 3"(75) 45° Stainless Steel Combo Wye
839.075.110 AS / WB-4x3-90-316 / 4"(110) x 3"(75) 45° Stainless Steel Combo Wye
839.075.160 AS / WB-6x3-90-316 / 6"(160) x 3"(75) 45° Stainless Steel Combo Wye
839.110.110 AS / WB-4x4-90-316 / 4"(110) x 4"(110) 45° Stainless Steel Combo Wye
839.110.160 AS / WB-6x4-90-316 / 6"(160) x 4"(110) 45° Stainless Steel Combo Wye
839.110.200 AS / WB-8x4-90-316 / 8"(200) x 4"(110) 45° Stainless Steel Combo Wye
839.160.160 AS / WB-6x6-90-316 / 6"(160) x 6"(160) 45° Stainless Steel Combo Wye
839.160.200 AS / WB-8x6-90-316 / 8"(200) x 6"(160) 45° Stainless Steel Combo Wye
839.160.250 AS / WB-10x6-90-316 / 10"(250) x 6"(160) 45° Stainless Steel Combo Wye
839.160.315 AS / WB-12x6-90-316 / 12"(315) x 6"(160) 45° Stainless Steel Combo Wye
839.200.200 S / WB-8x8-90-316 / 8"(200) x 8"(200) 45° Stainless Steel Combo Wye
839.250.250 S / WB-10x10-90-316 / 10"(250) x 10"(250) 45° Stainless Steel Combo Wye
839.315.315 S / WB-12x12-90-316 / 12"(315) x 12"(315) 45° Stainless Steel Combo Wye
