SWEPT BRANCH 89° - (848.160.160 AS)
×
![]()
Part Of the Series: Swept branch-89
Type no.: 848.160.160 AS
EAN no.: 5705499409703
NRF no.: 2172676
LVI no.: 0255255

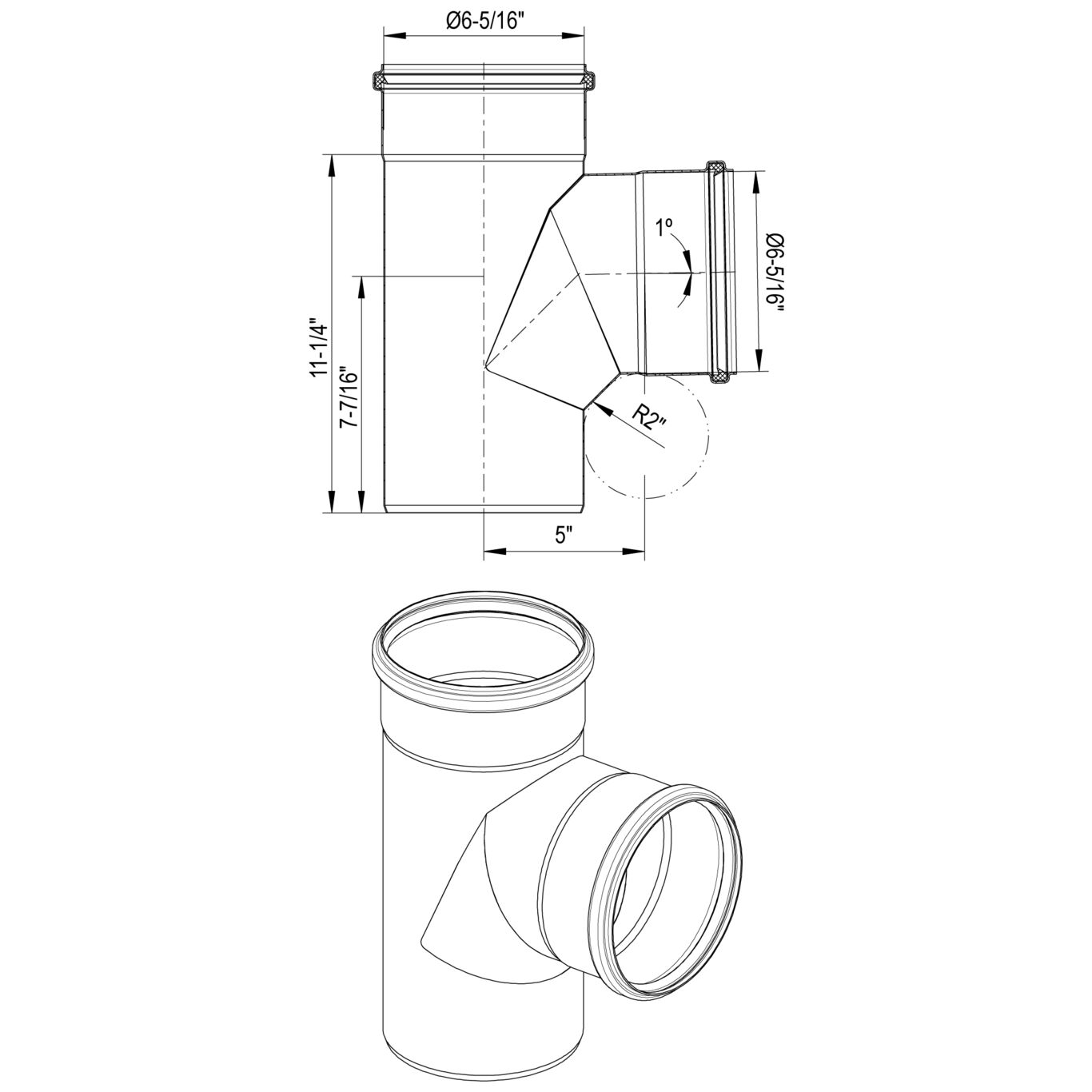

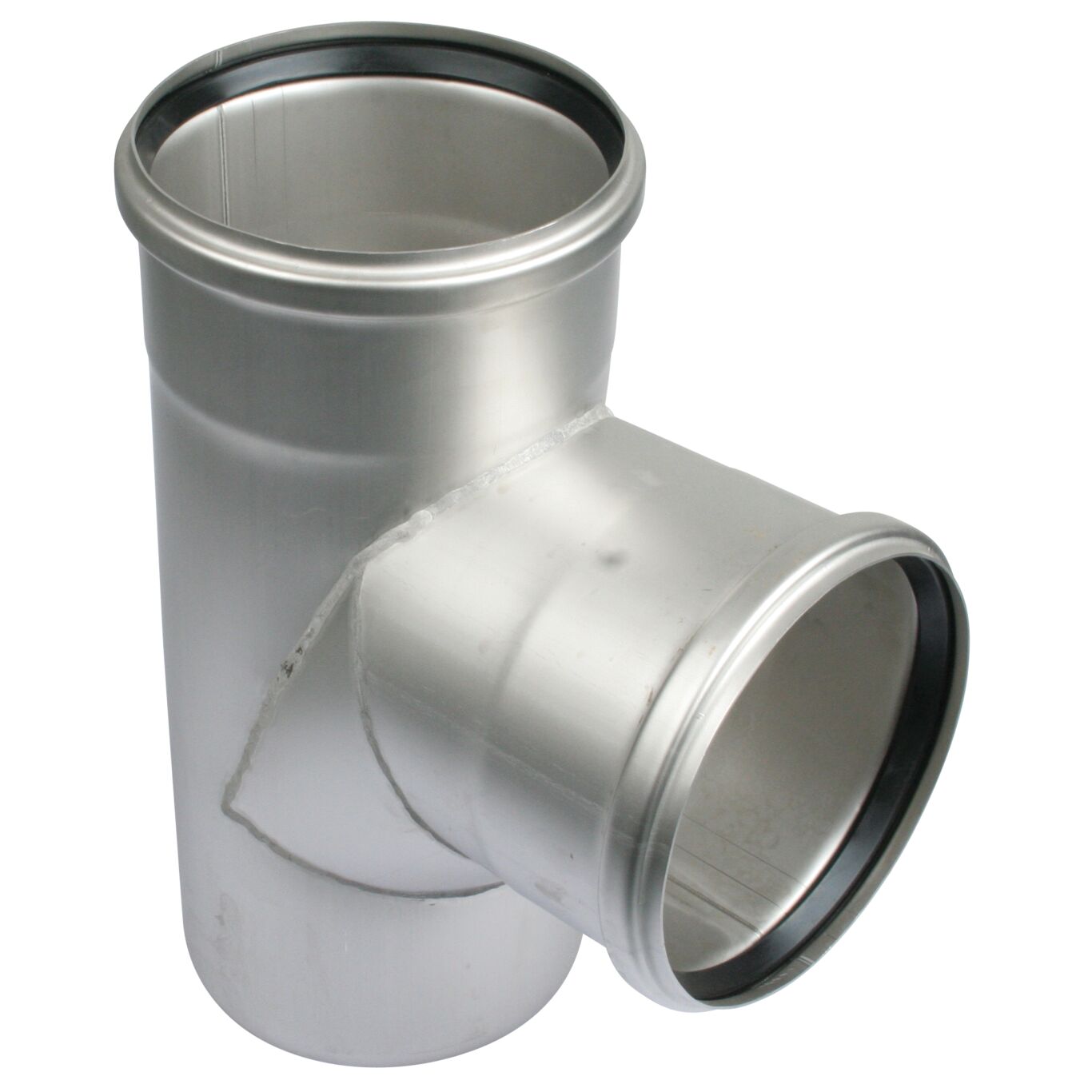

SWEPT BRANCH 89°
-Pipe diameter: Ø160mm. Branch diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 89 |
| Length (mm) | 286 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Weight (kg) | 2.02 |
| Weight (lbs) | 4.45 |
-
Approval Information
For approval information, please refer to the below approval certificates.
