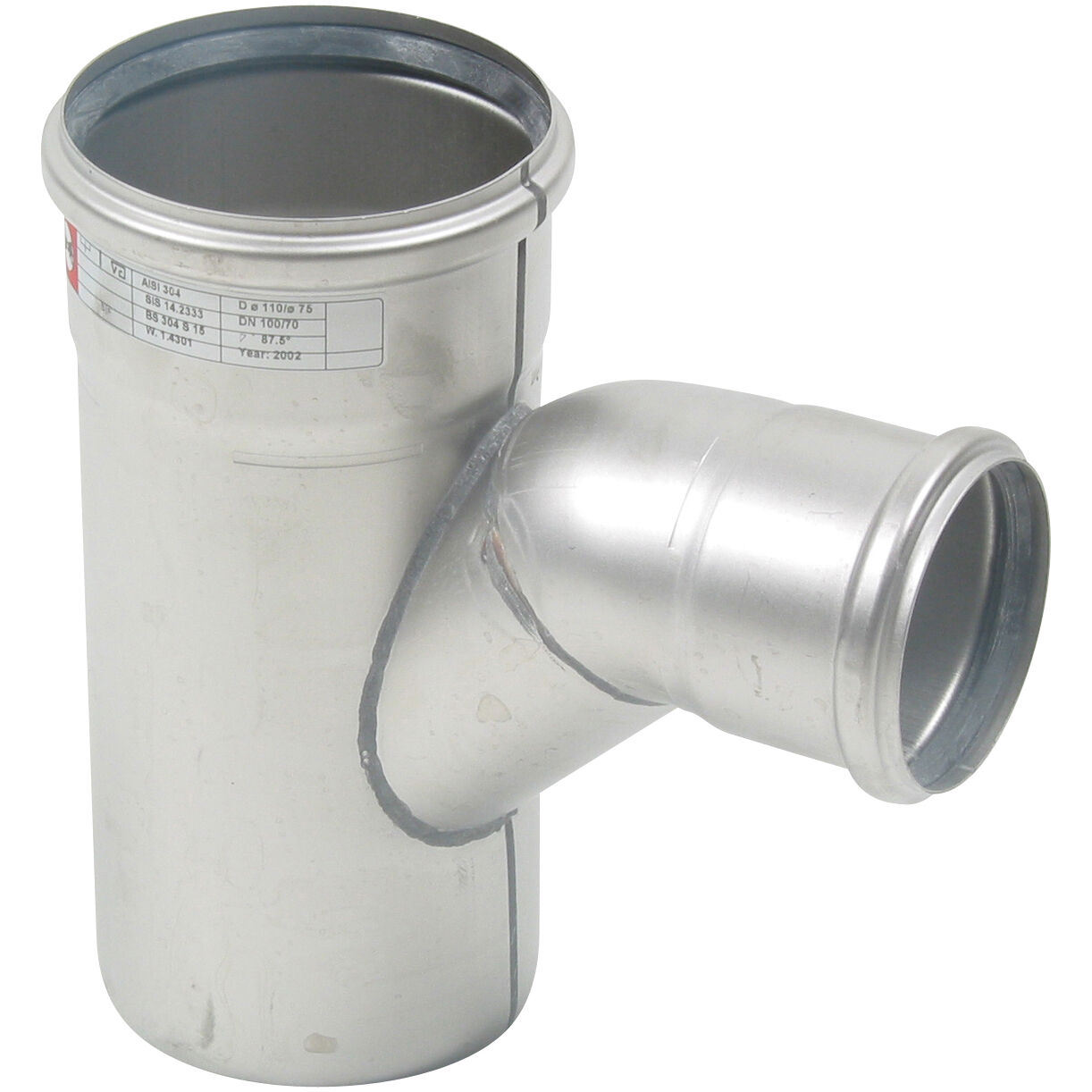

SWEPT BRANCH 89° - (839.075.110 AS)
×
![]()
Part Of the Series: Swept branch-89-long bend
Type no.: 839.075.110 AS
EAN no.: 5705499409413
NRF no.: 2172639
SWEPT BRANCH 89°
-Pipe diameter: Ø110mm. Branch diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 89 |
| Length (mm) | 183 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 1.11 |
| Weight (lbs) | 2.45 |
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Europe
DK - VA 2.12/19349 EuroPipe DS432
