SWEPT BRANCH 87.5° - (839.050.110)
×
![]()
Part Of the Series: Swept branch-87.5-long bend
Type no.: 839.050.110
EAN no.: 5705499402551
VVS no.: 160222106
RSK no.: 1550184
NRF no.: 2170094
LVI no.: 0245238

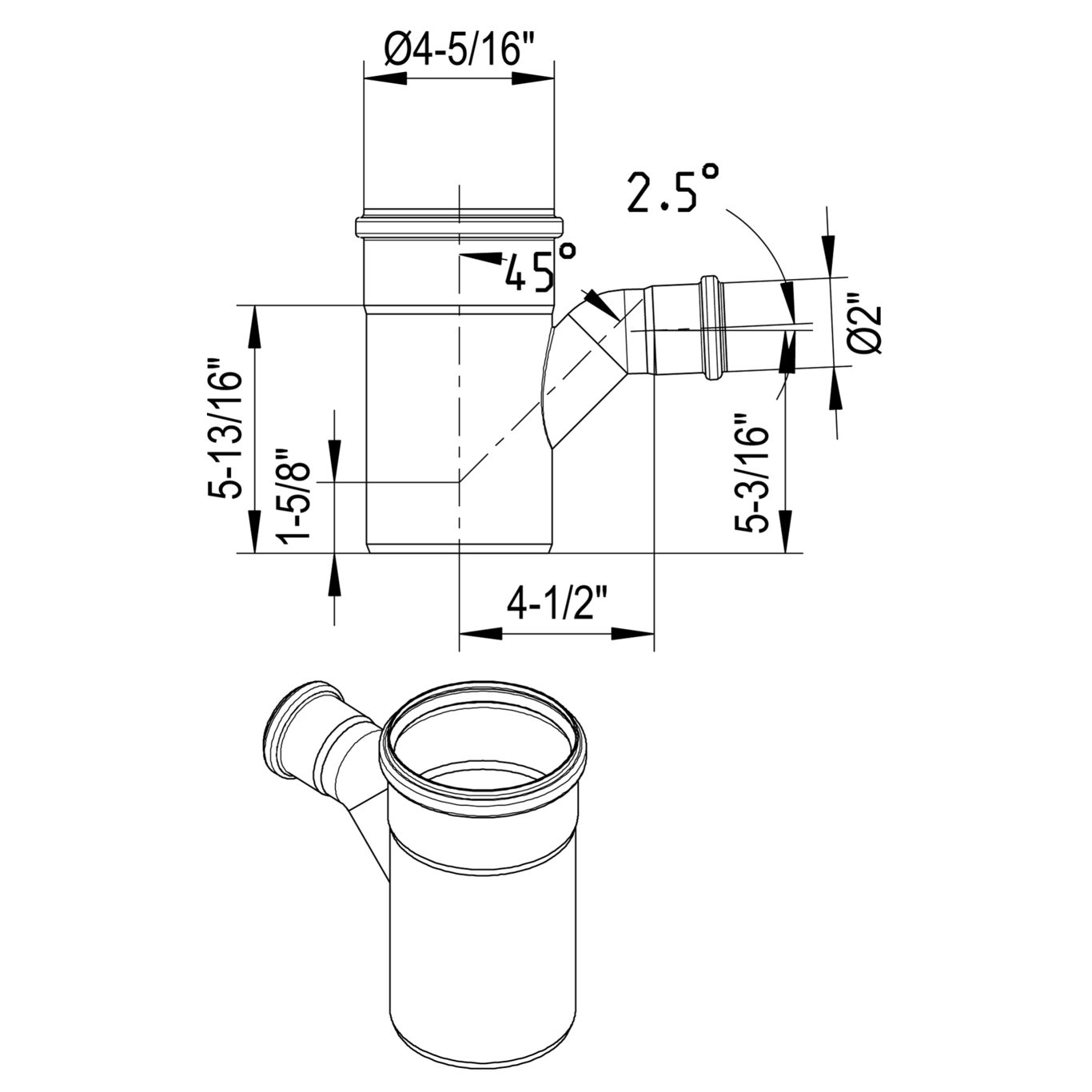

SWEPT BRANCH 87.5°
-Pipe diameter: Ø110mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 147 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 0.81 |
| Weight (lbs) | 1.79 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432 Achilles Certificate - 46702 DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC320524XG EuroPipe TÜRK LOYDU - 25041616077231247 Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 ABS - LD1716353-PDA UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products
