SWEPT BRANCH 87.5° - (839.050.050 S)
×
![]()
Part Of the Series: Swept branch-87.5-long bend
Type no.: 839.050.050 S
EAN no.: 5705499402520
VVS no.: 160222350
RSK no.: 1550382
NRF no.: 2170784
LVI no.: 0255233

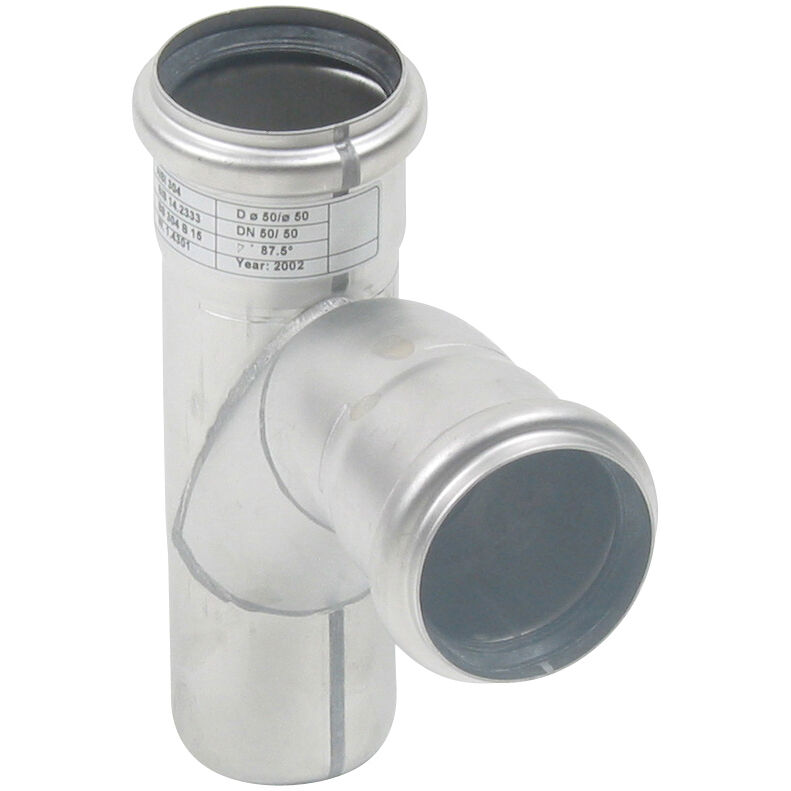

SWEPT BRANCH 87.5°
-Pipe diameter: Ø50mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 133 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 0.44 |
| Weight (lbs) | 0.97 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432 RINA -MAC320524XG EuroPipe Lloyds Register LR22419510TA DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products ABS - LD1716353-PDA MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings TÜRK LOYDU - 25041616077231247 Achilles Certificate - 46702 UR - 1055745 Product approval, EuroPipe and Drains KR - Type Approval CPH42135-PE001
