DOUBLE BRANCH 87.5° - (831.075.110)
Part Of the Series: Double branch-87.5-180
Type no.: 831.075.110
EAN no.: 5705499401868
VVS no.: 160231108
RSK no.: 1550173
NRF no.: 2172344
LVI no.: 0244159

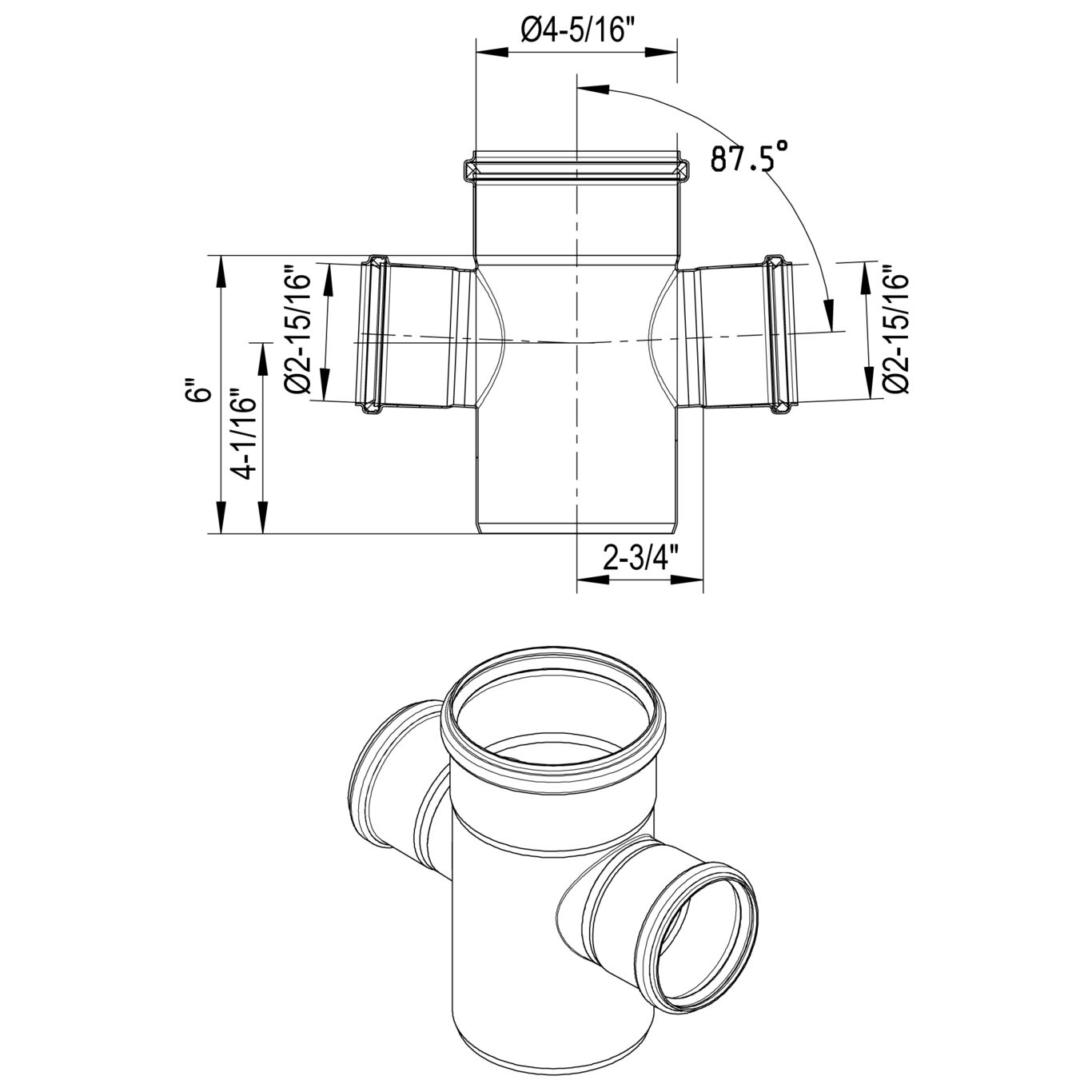

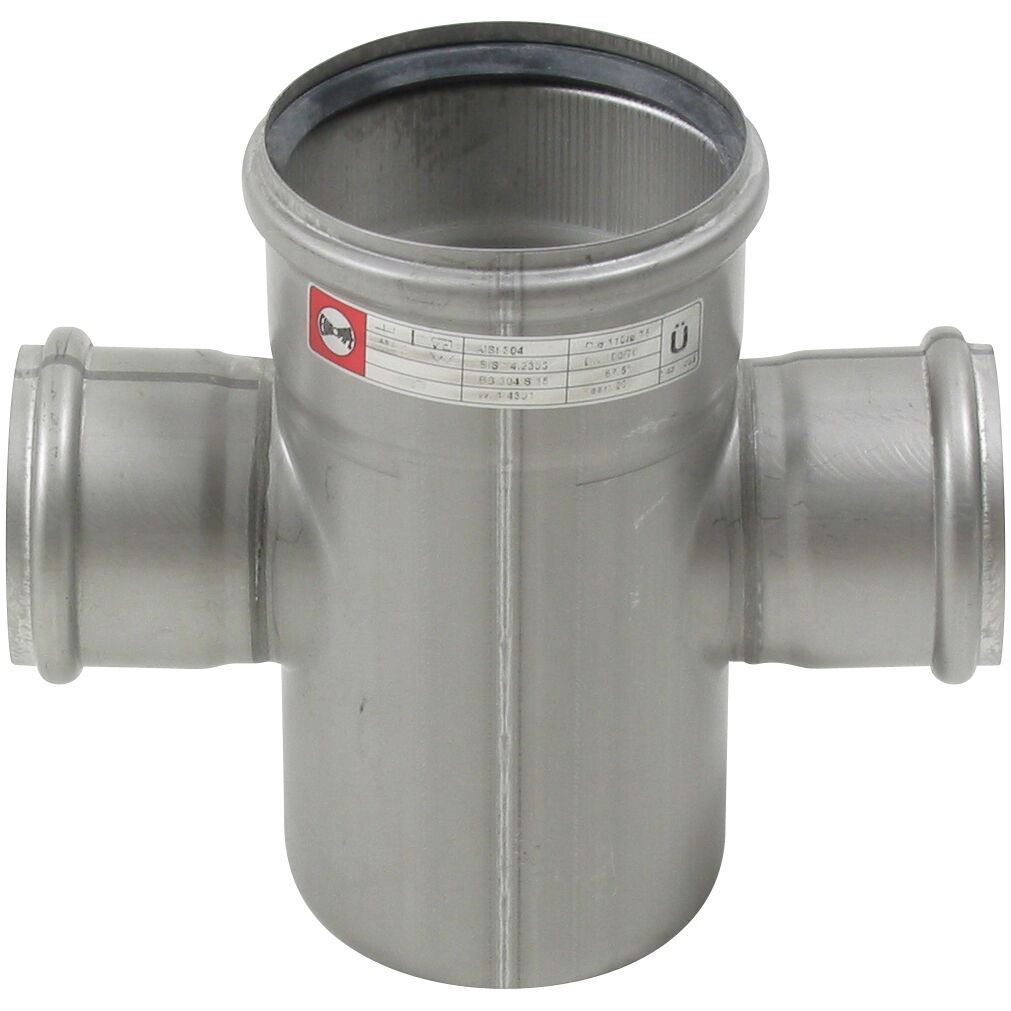

DOUBLE BRANCH 87.5°
-Pipe diameter: Ø110mm. Branch diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 152 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet dia. (mm) | 110 |
Outlet Diameter (Inch) | 4 |
Weight (kg) | 0.89 |
Weight (lbs) | 1.96 |
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe NO - 0692-22 EuroPipe AUS - WMKT00204 - 24 DE - LGA Certificate 57214035 a FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Europe HACCP Food Safety Programme - Australasia DK - VA 2.12/19349 EuroPipe DS432 Achilles Certificate - 46702-22 Lloyds Register LR22419510TA KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM ABS - LD1716353-PDA UR - 1055745 Product approval, EuroPipe and Drains
