DOUBLE BRANCH 87.5° - (831.050.110)
×
![]()
Part Of the Series: Double branch-87.5-180
Type no.: 831.050.110
EAN no.: 5705499401820
VVS no.: 160231106
NRF no.: 2172342
LVI no.: 0244158

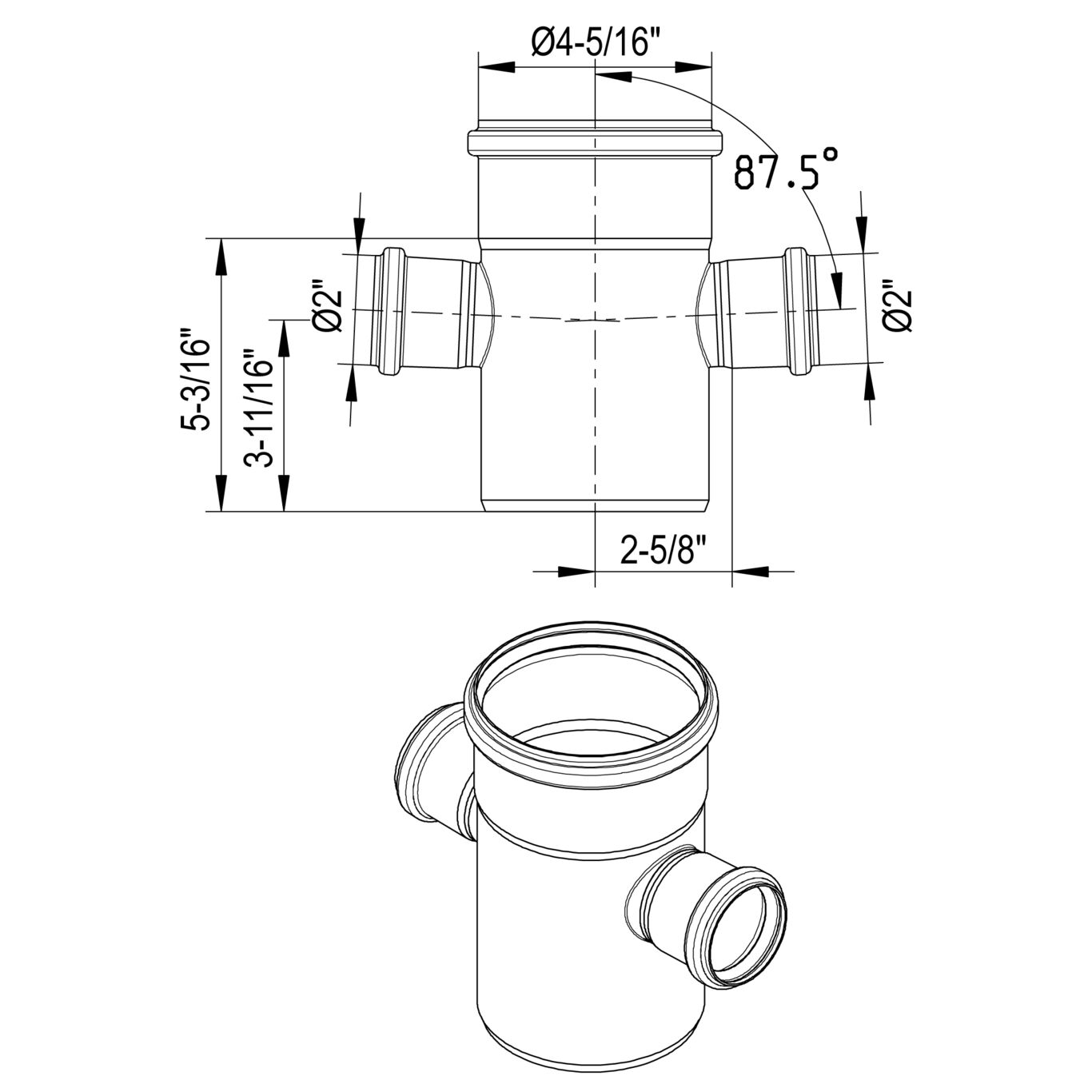

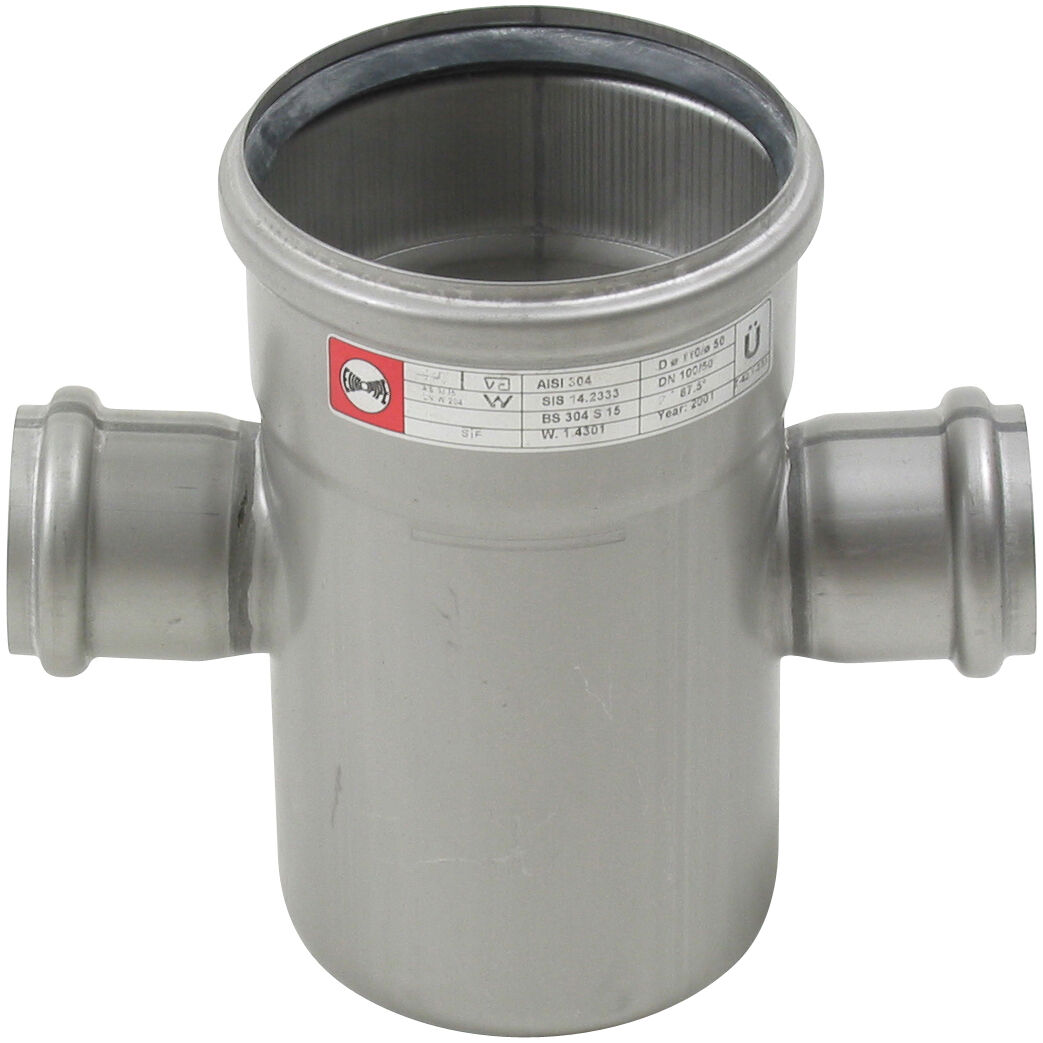

DOUBLE BRANCH 87.5°
-Pipe diameter: Ø110mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 132 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 0.72 |
| Weight (lbs) | 1.59 |
-
Approval Information
For approval information, please refer to the below approval certificates.
AUS - WMKT00204 - 24
FR - DTA 14.1/12-1811_V3 EuroPipe
HACCP Food Safety Programme - Australasia
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
DE - LGA Certificate 57214035 a
