DOUBLE BRANCH 87.5° - (831.050.075)
×
![]()
Part Of the Series: Double branch-87.5-180
Type no.: 831.050.075
EAN no.: 5705499401806
VVS no.: 160231073
NRF no.: 2172341
LVI no.: 0244155

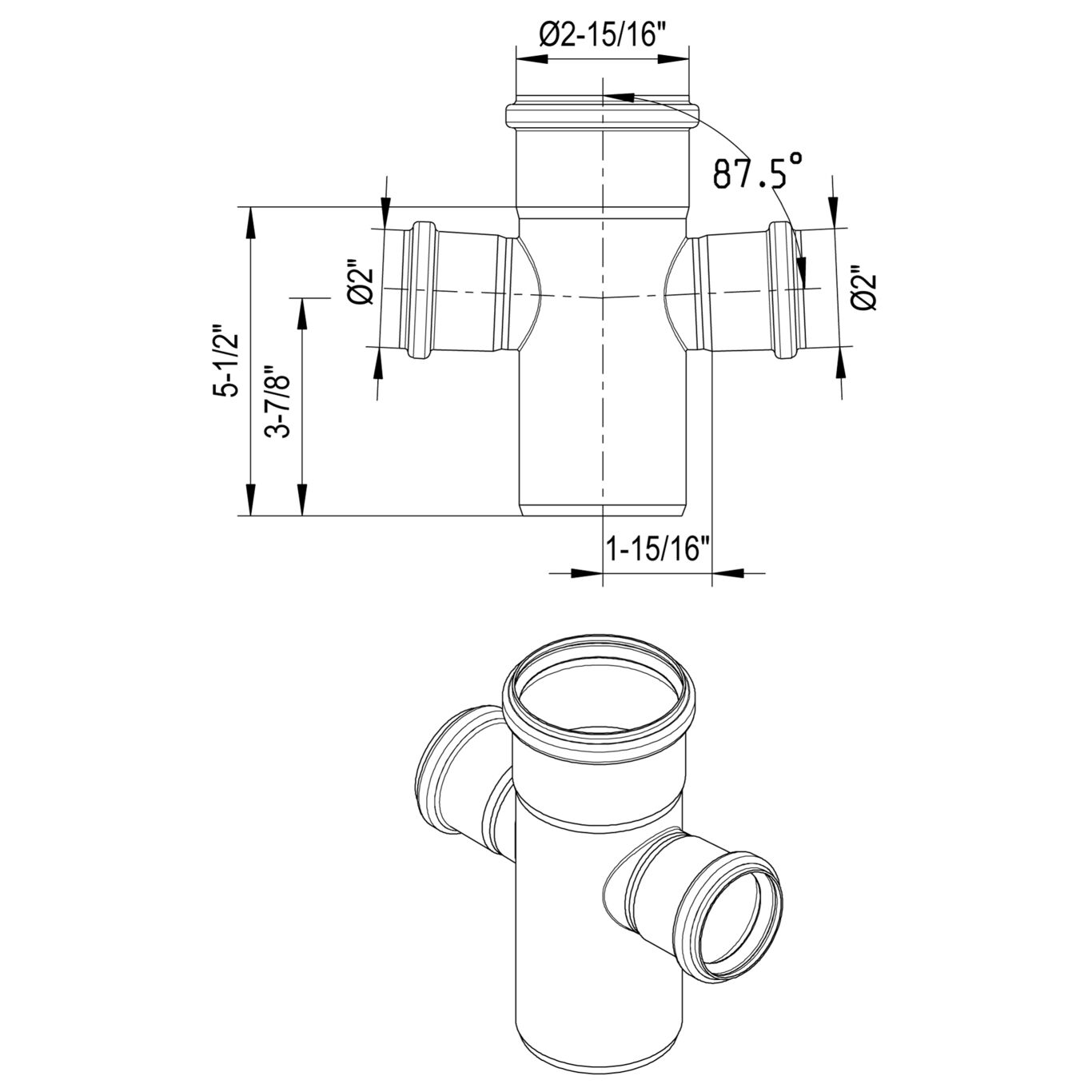

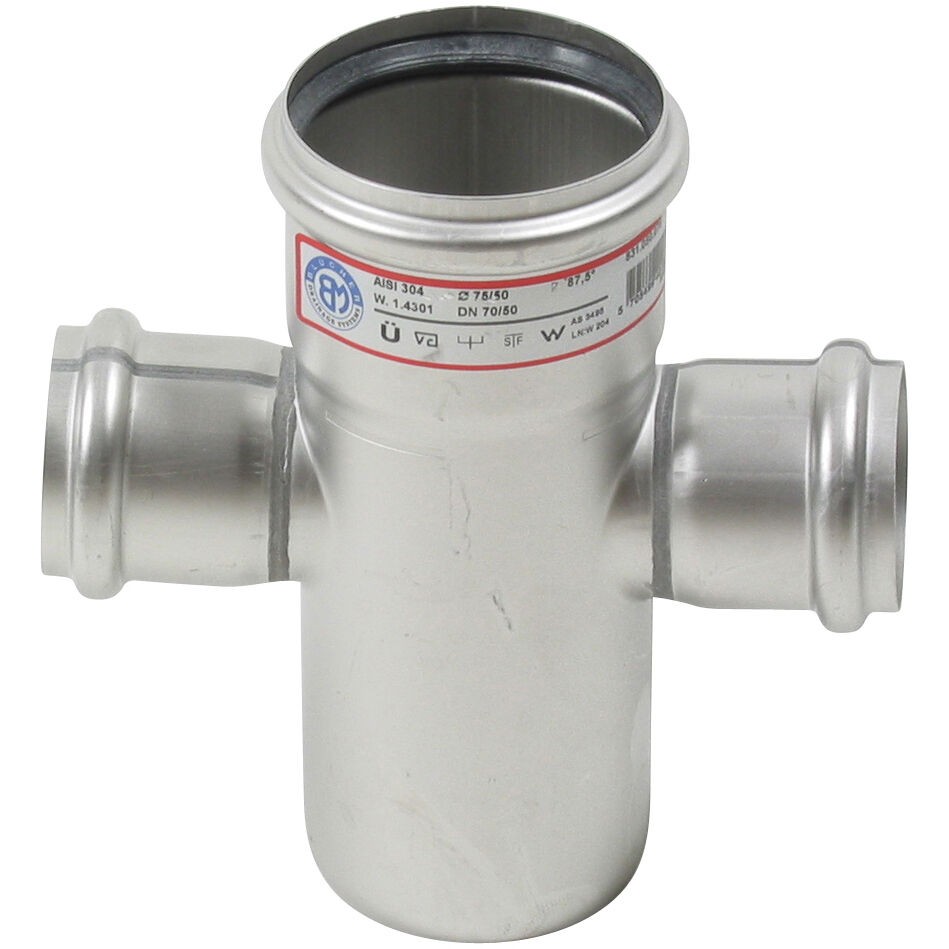

DOUBLE BRANCH 87.5°
-Pipe diameter: Ø75mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 139 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Weight (kg) | 0.54 |
| Weight (lbs) | 1.19 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe
NO - 0692-22 EuroPipe
AUS - WMKT00204 - 24
DK - VA 2.12/19349 EuroPipe DS432
FR - DTA 14.1/12-1811_V3 EuroPipe
HACCP Food Safety Programme - Australasia
