DOUBLE BRANCH 45° - (837.050.110 S)
×
![]()
Part Of the Series: Double branch-45-90
Type no.: 837.050.110 S
EAN no.: 5705499402285
VVS no.: 160236406
RSK no.: 1549411
NRF no.: 2172621
LVI no.: 0254457

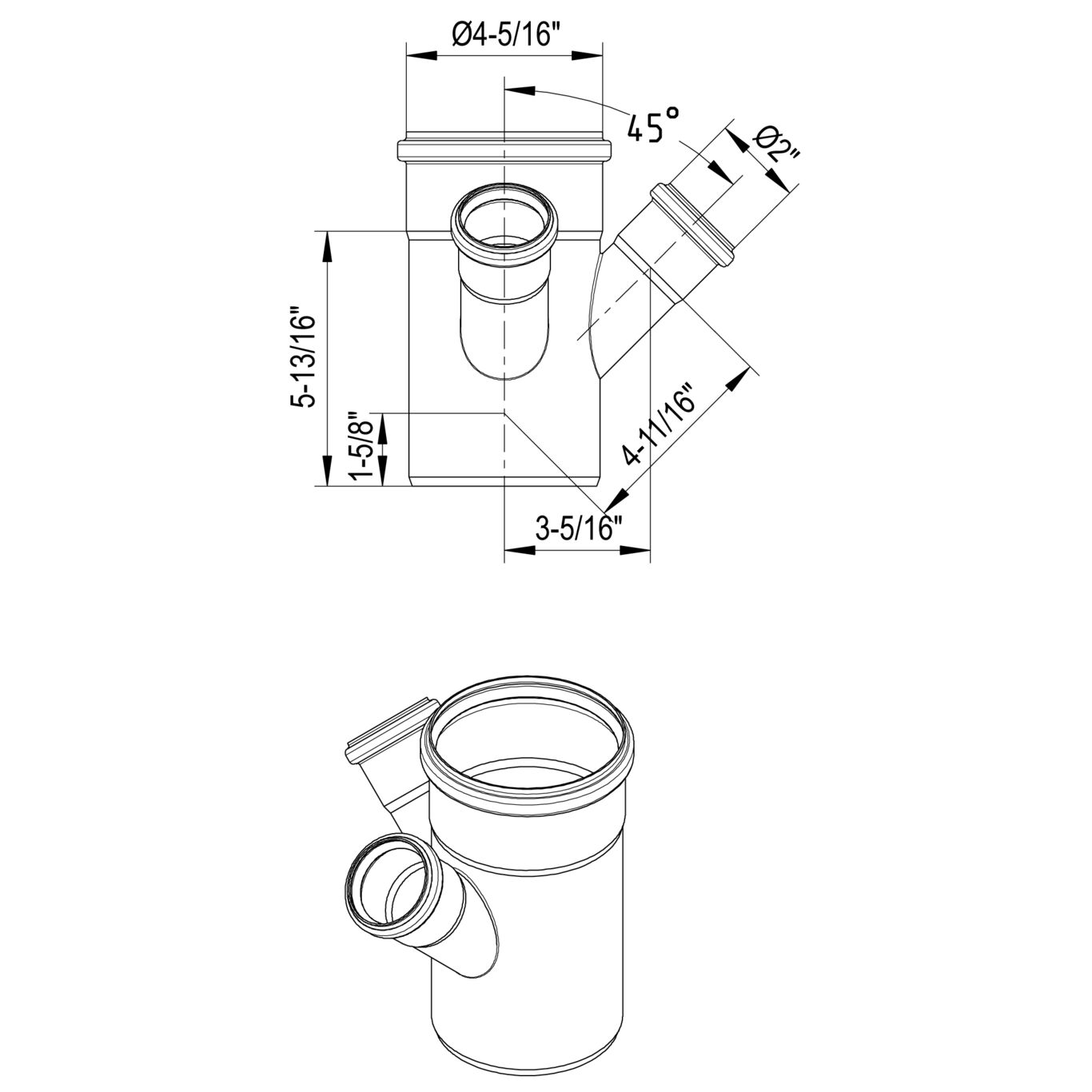

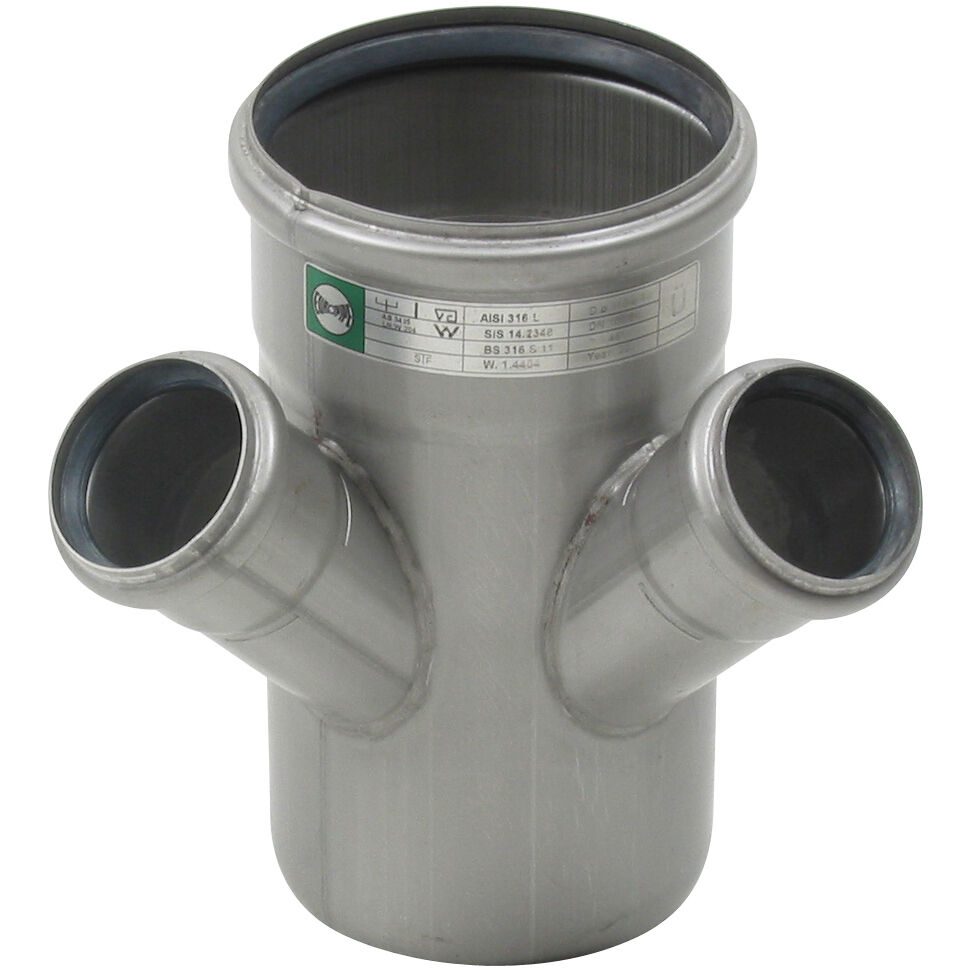

DOUBLE BRANCH 45°
-Pipe diameter: Ø110mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 147 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 0.92 |
| Weight (lbs) | 2.03 |
-
Approval Information
For approval information, please refer to the below approval certificates.
AUS - WMKT00204 - 24
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Australasia
