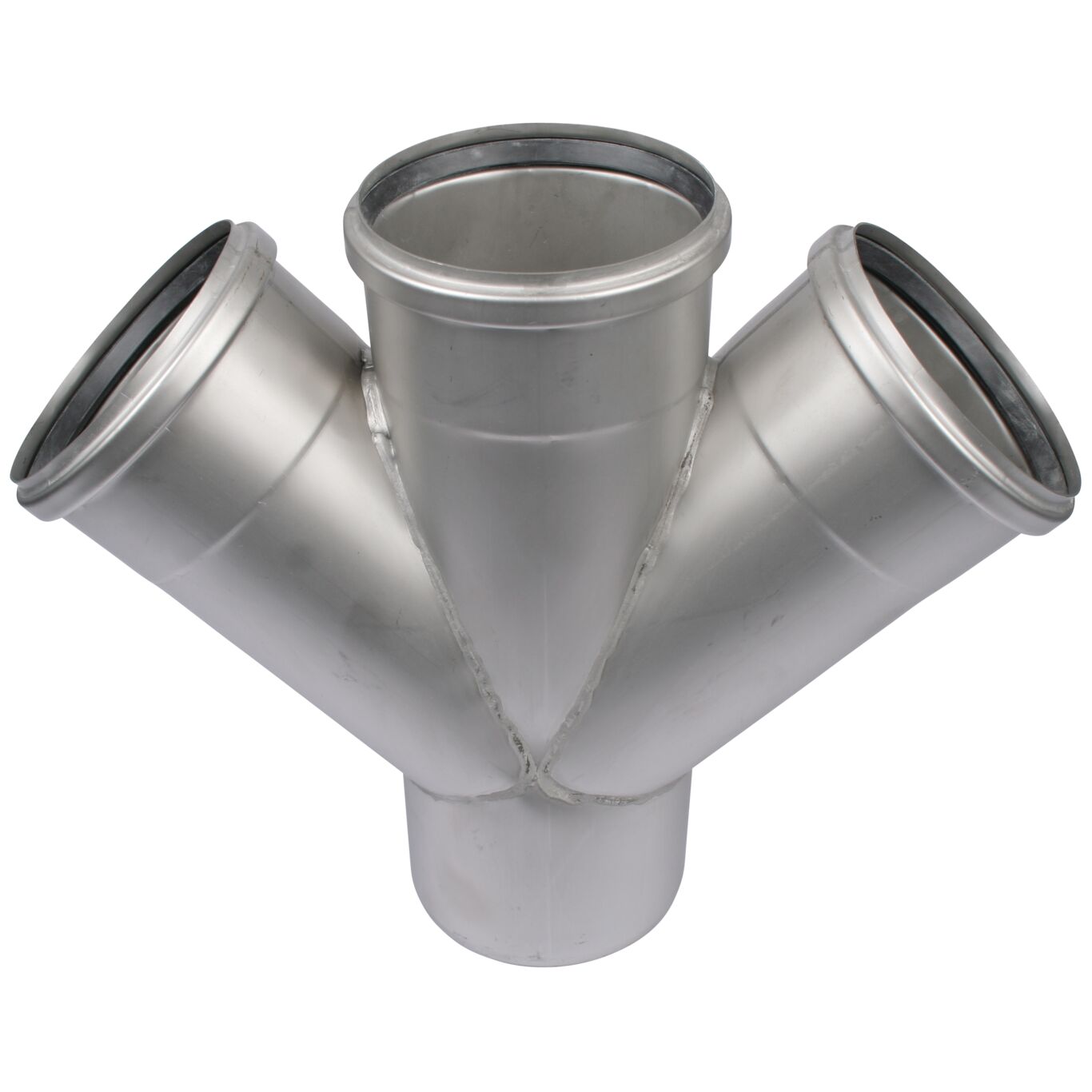

DOUBLE BRANCH 45° - (836.125.125 S)
×
![]()
Part Of the Series: Double branch-45-180
Type no.: 836.125.125 S
EAN no.: 5705499412581
NRF no.: 2172614
LVI no.: 0256028
DOUBLE BRANCH 45°

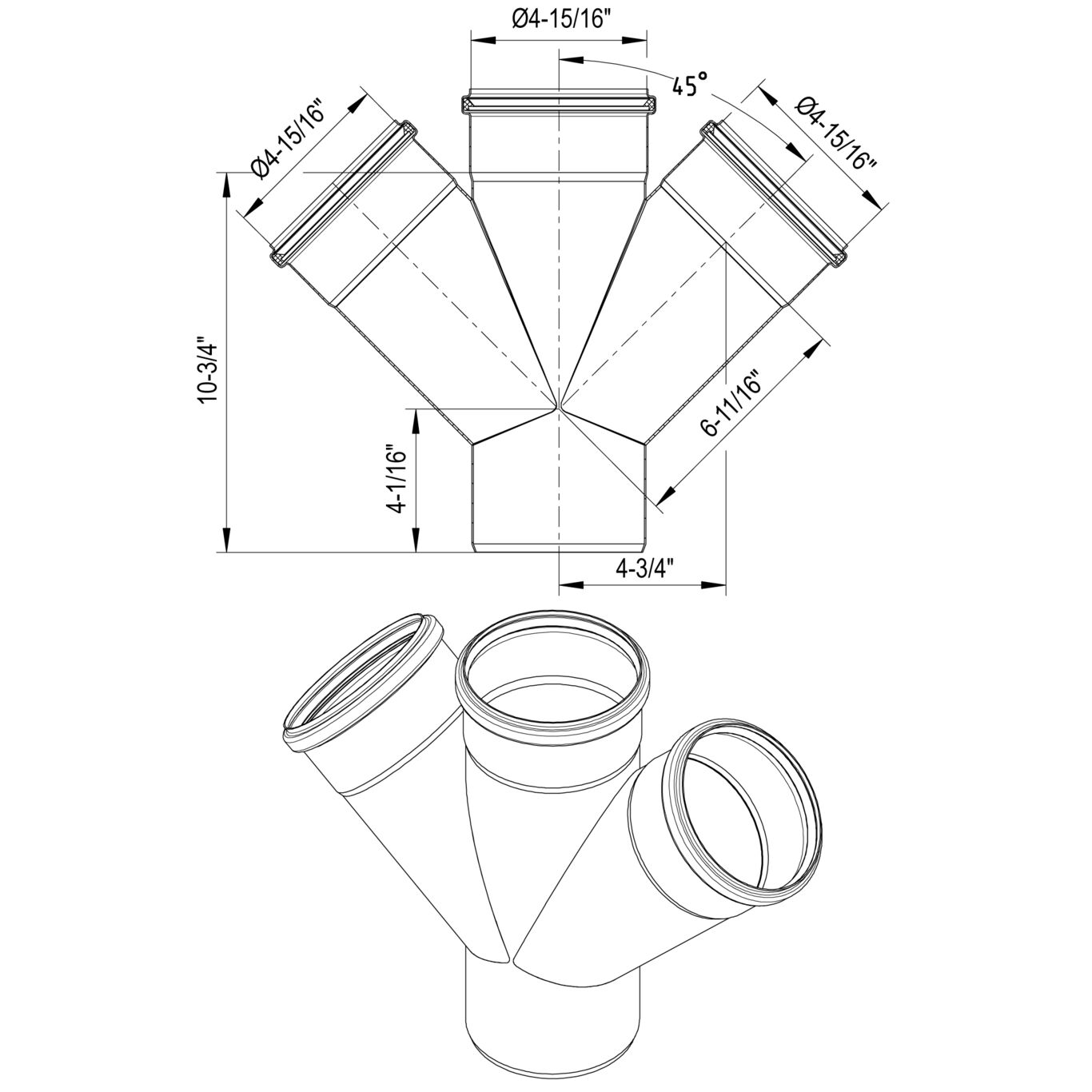

-Pipe diameter: Ø125mm. Branch diameter: Ø125mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 273 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 125 |
| Outlet Diameter (Inch) | 5 |
| Weight (kg) | 2.1 |
| Weight (lbs) | 4.63 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19350
HACCP Food Safety Programme - Australasia
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - LD1716353-PDA RINA -MAC285119XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA PL - Hygienic Certificate - All Products
