DOUBLE BRANCH 45° - (836.110.110 S)
×
![]()
Part Of the Series: Double branch-45-180
Type no.: 836.110.110 S
EAN no.: 5705499402216
VVS no.: 160235410
RSK no.: 1550378
NRF no.: 2172611
LVI no.: 0253660

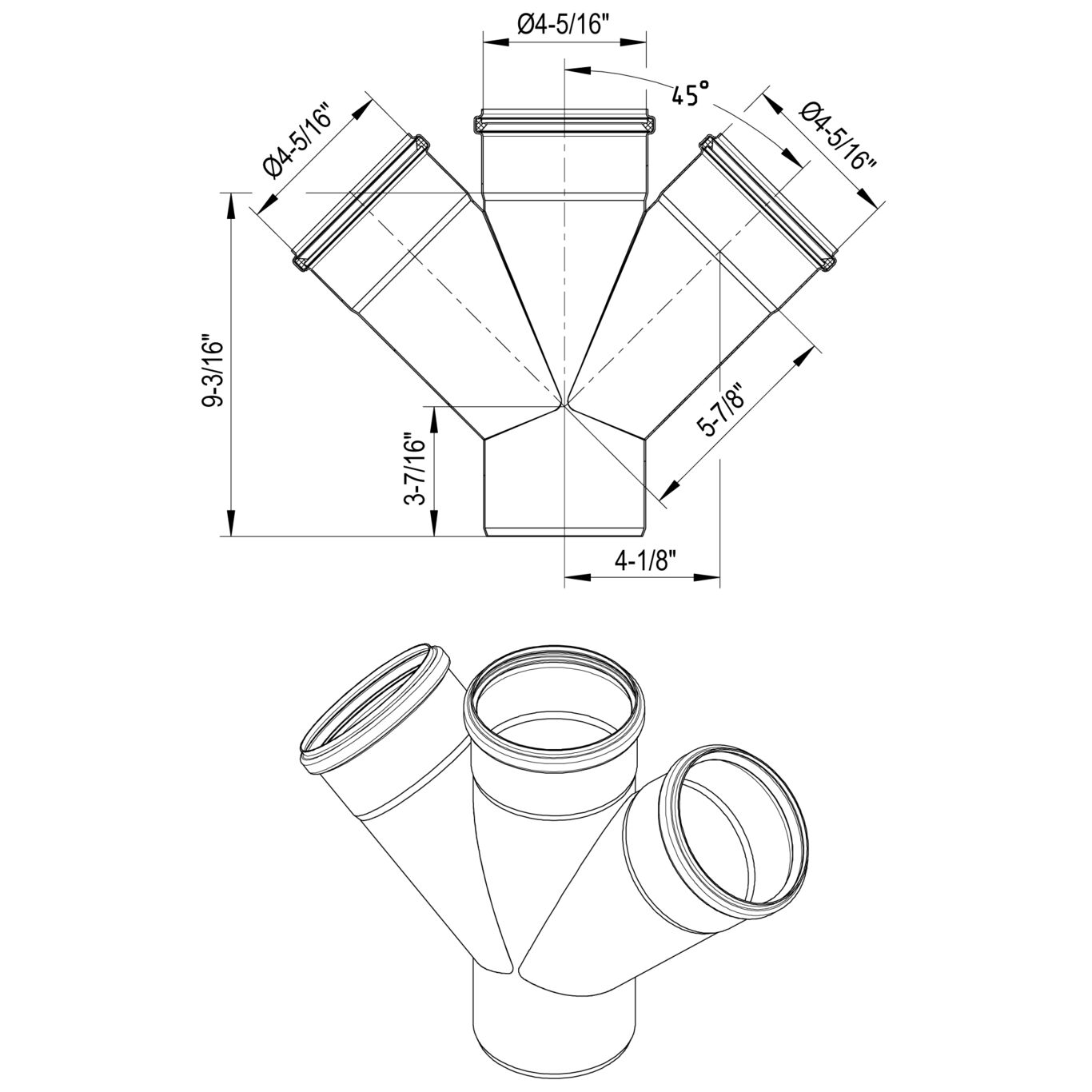

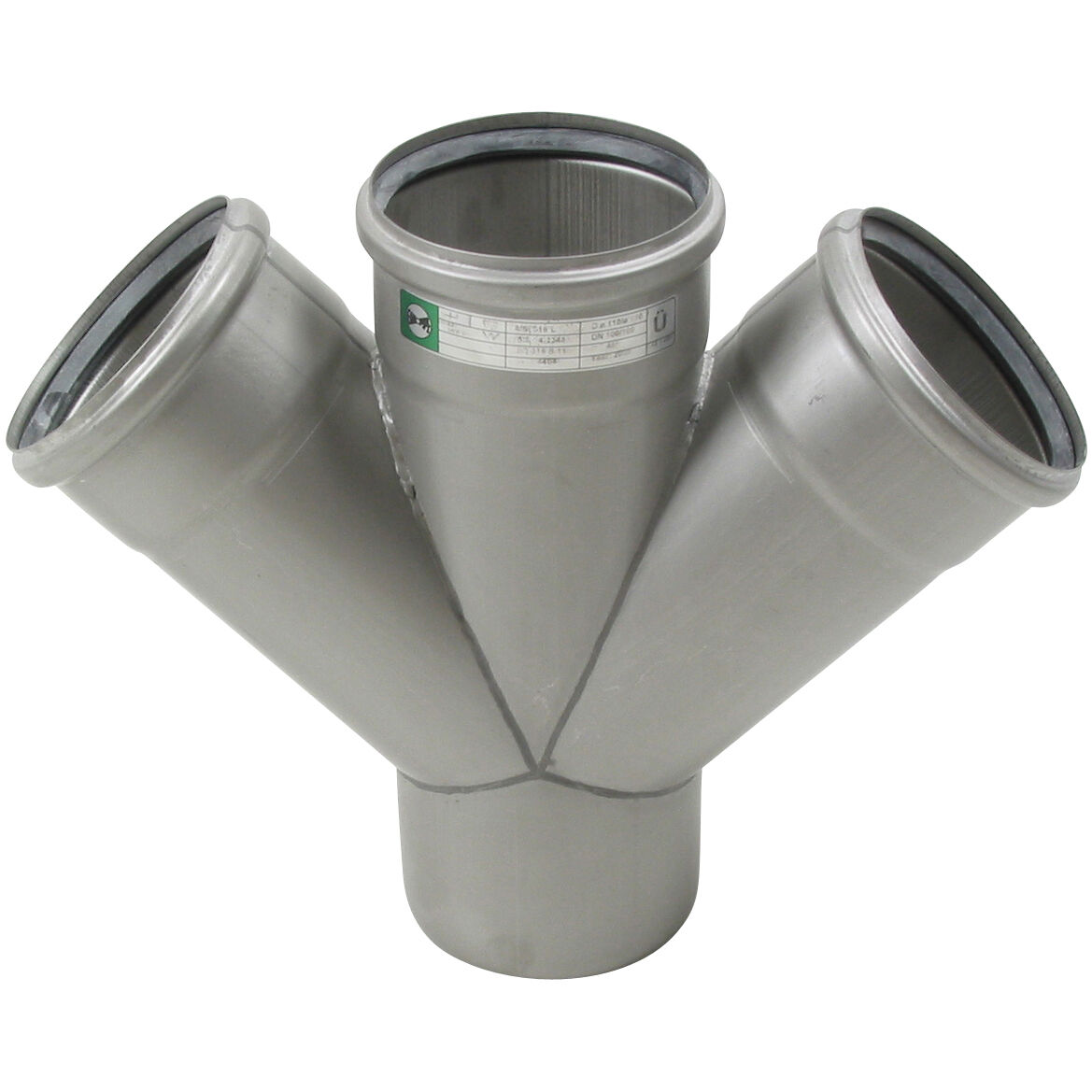

DOUBLE BRANCH 45°
-Pipe diameter: Ø110mm. Branch diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 233 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 2.1 |
| Weight (lbs) | 4.63 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
AUS - WMKT00204 - 24 ABS - LD1716353-PDA MARINE - R4547 NATO CODIFICATION SYSTEM DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings UR - 1055745 Product approval, EuroPipe and Drains Lloyds Register LR22419510TA RINA -MAC285119XG EuroPipe Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products
