DOUBLE BRANCH 45° - (836.050.110 S)
×
![]()
Part Of the Series: Double branch-45-180
Type no.: 836.050.110 S
EAN no.: 5705499402155
VVS no.: 160235406
RSK no.: 1549395
NRF no.: 2172607
LVI no.: 0253658

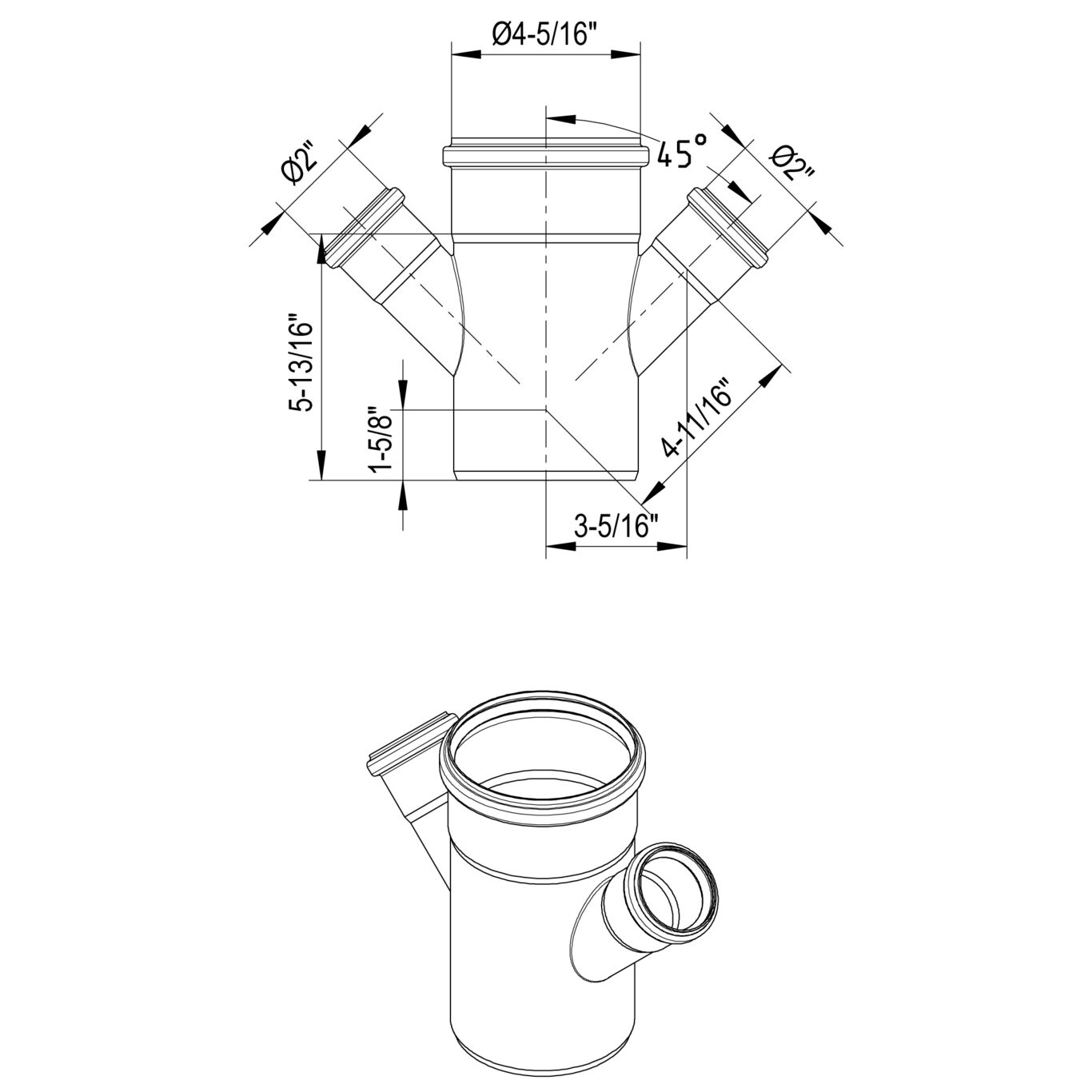

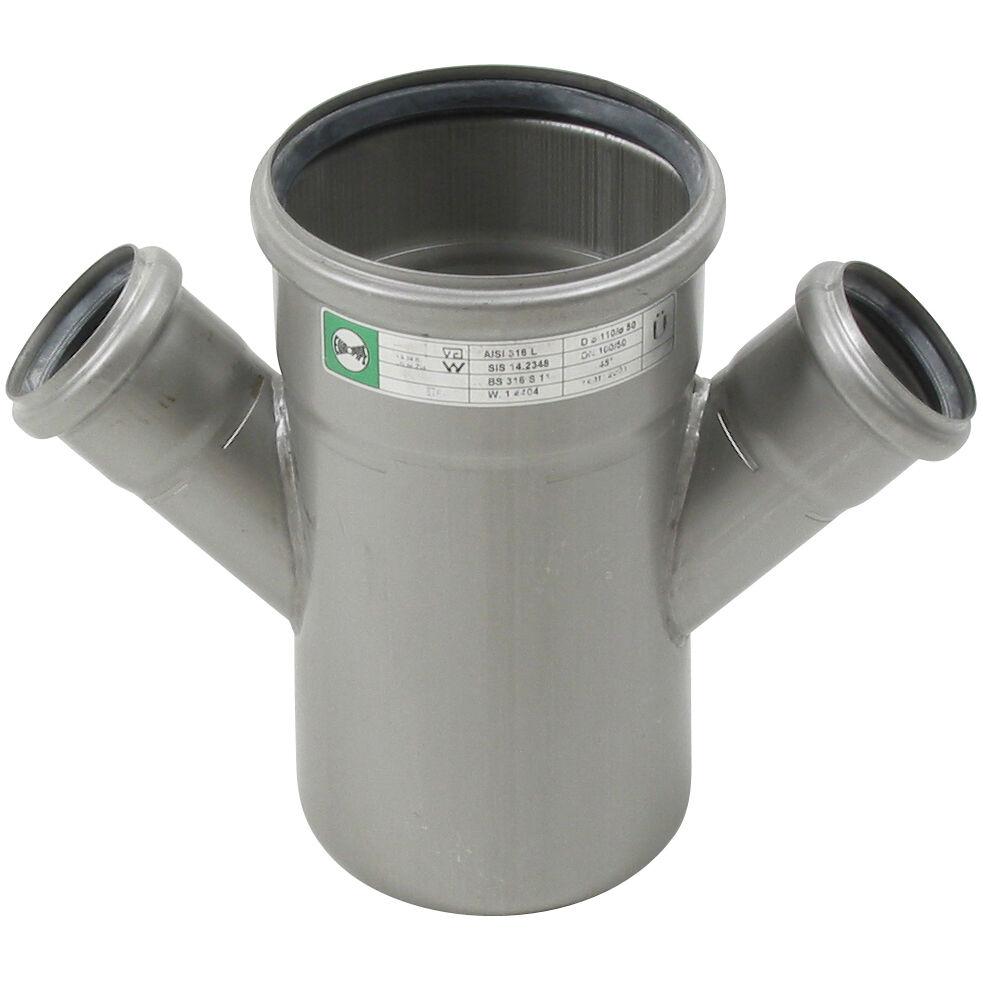

DOUBLE BRANCH 45°
-Pipe diameter: Ø110mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 147 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 0.8 |
| Weight (lbs) | 1.76 |
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Europe
DK - VA 2.12/19349 EuroPipe DS432
