BRANCH 89° - (830.050.075 AS)
×
![]()
Part Of the Series: Branch-89
Type no.: 830.050.075 AS
EAN no.: 5705499408904
NRF no.: 2172562

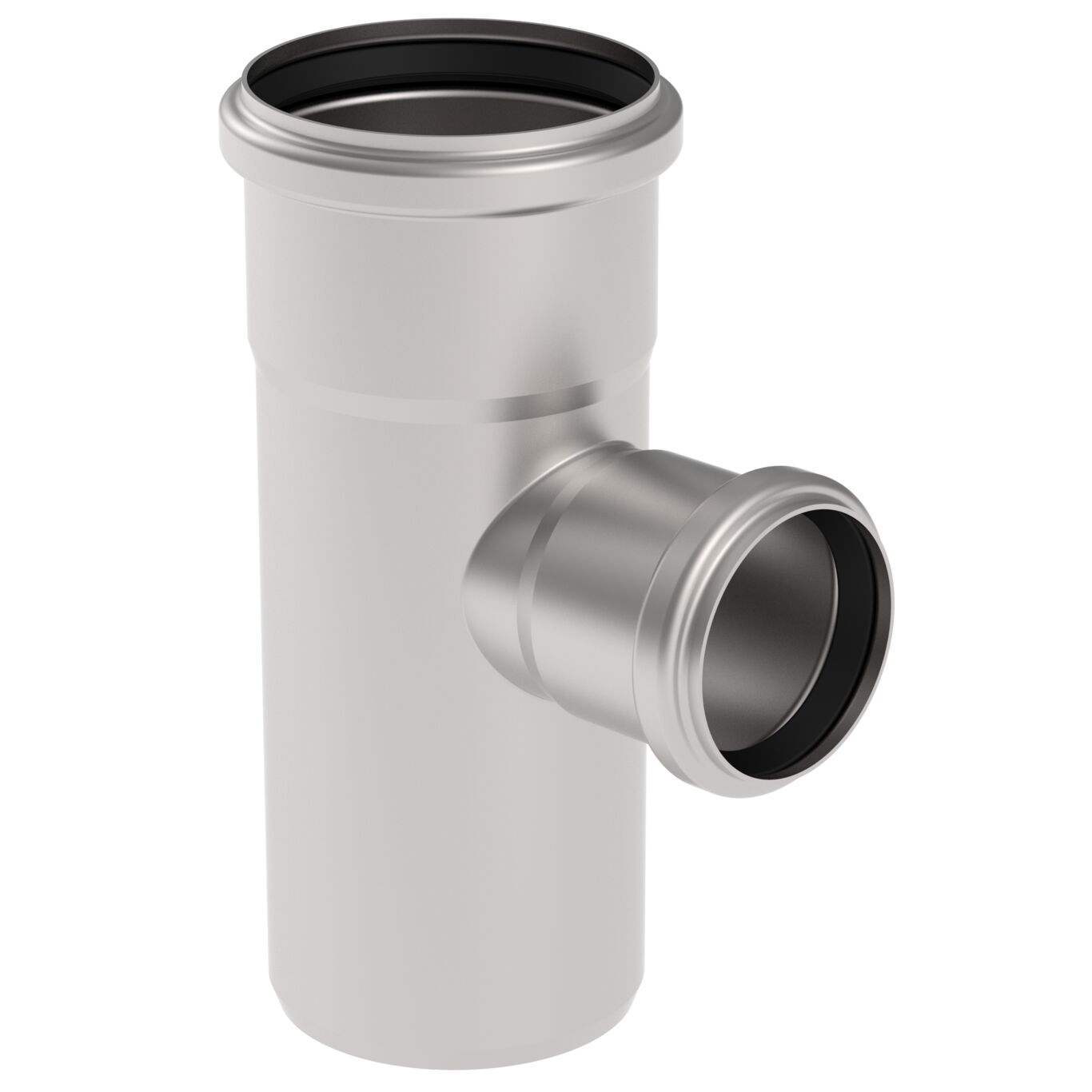

BRANCH 89°

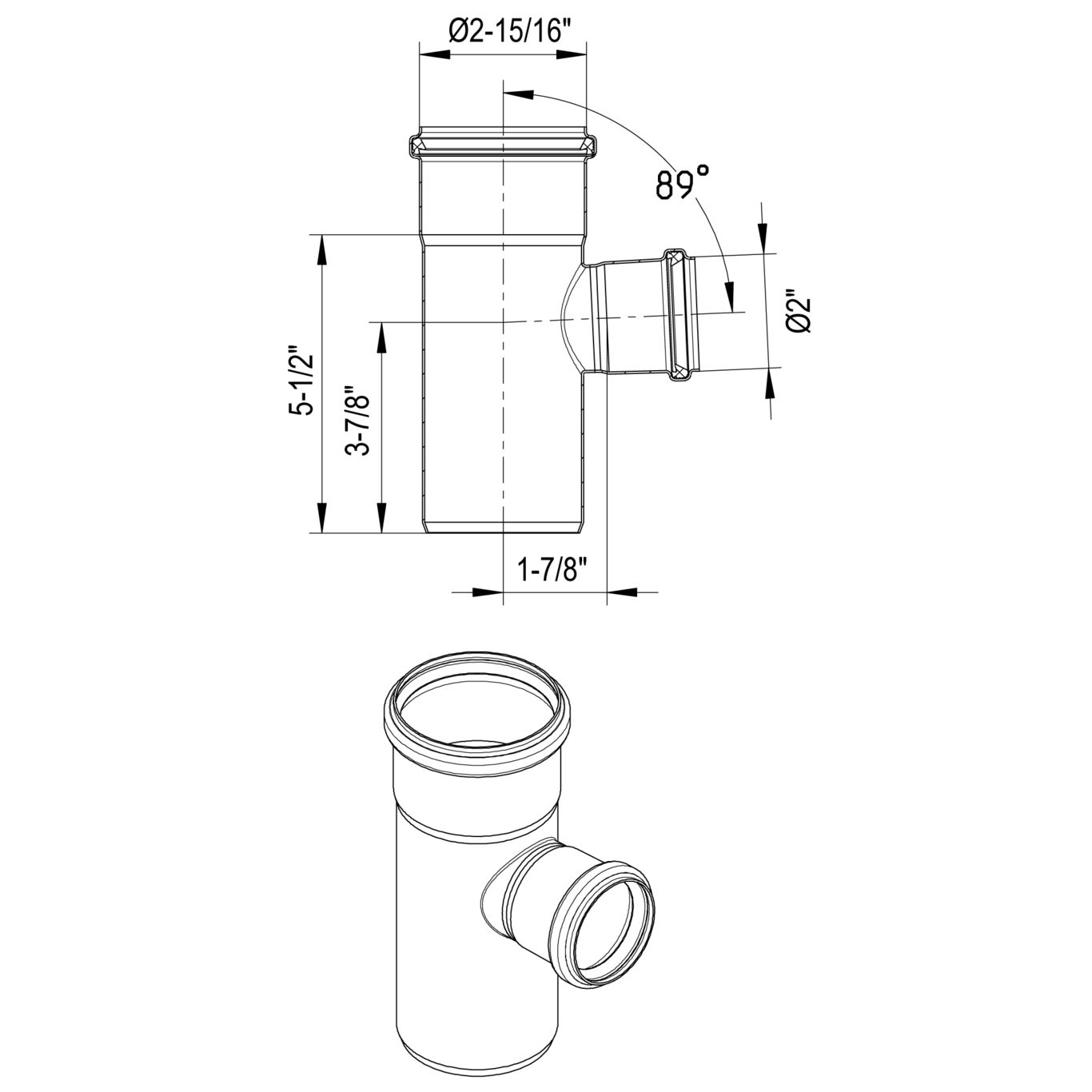

-Pipe diameter: Ø75mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 89 |
| Length (mm) | 139 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Weight (kg) | 0.44 |
| Weight (lbs) | 0.97 |
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Europe
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe RU - 0212322 Pipes-21 PL - Hygienic Certificate - All Products Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA
