BRANCH 87.5° - (830.160.160)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.160.160
EAN no.: 5705499401769
VVS no.: 160221160
RSK no.: 1550108
NRF no.: 2170136
LVI no.: 0241965

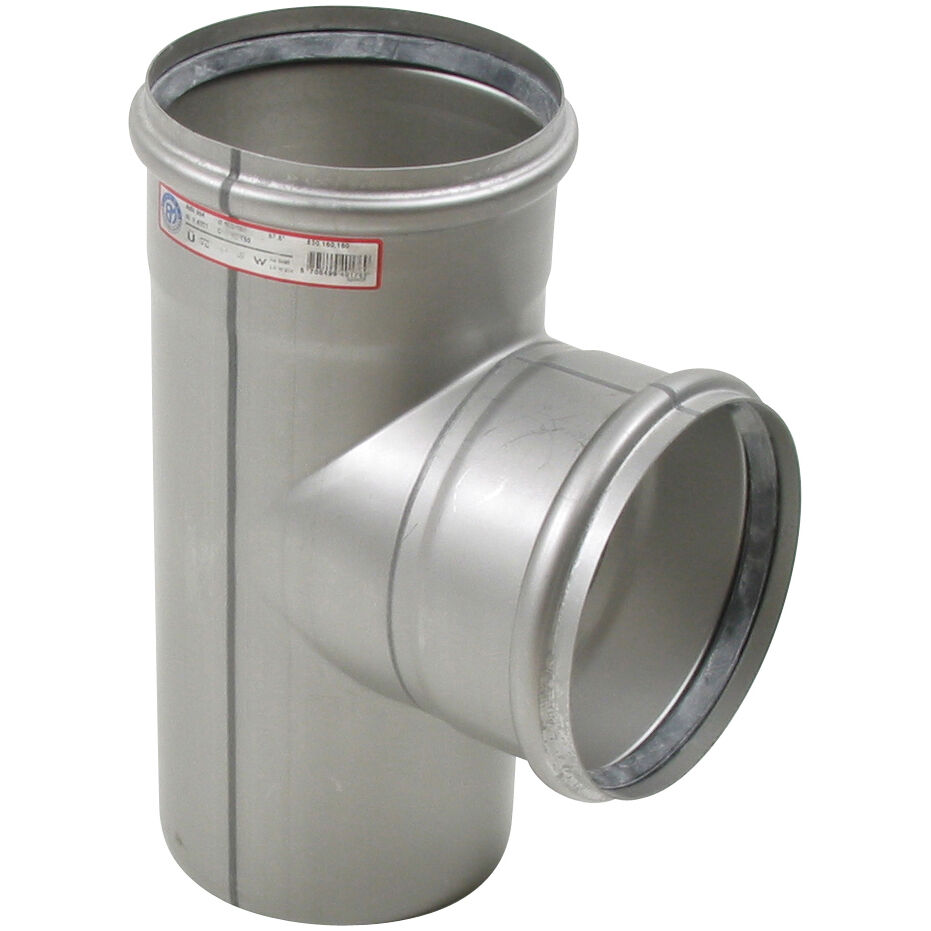

BRANCH 87.5°
-Pipe diameter: Ø160mm. Branch diameter: Ø160mm
-Stainless steel: AISI304/EN1.4301

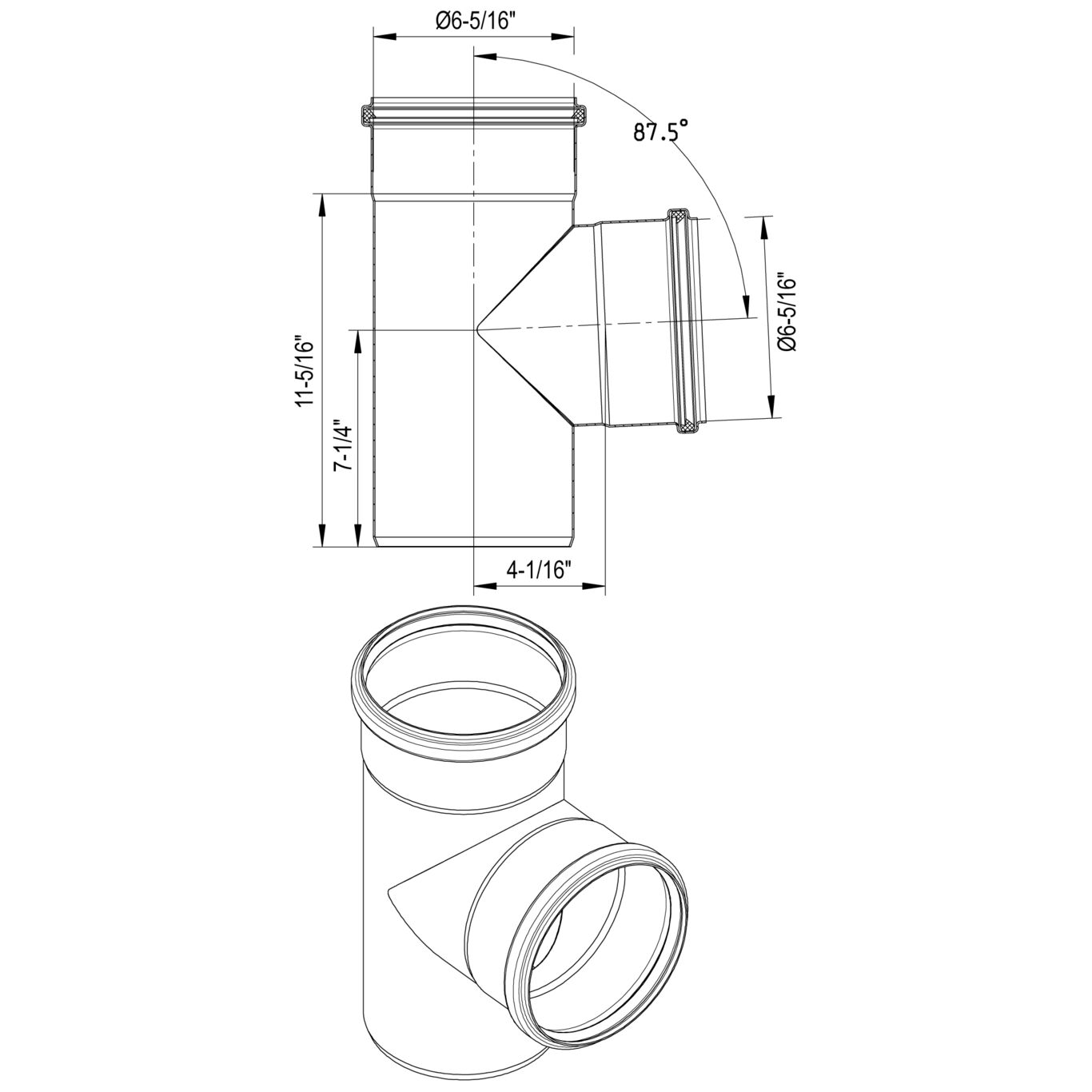

| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 288 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Weight (kg) | 2.4 |
| Weight (lbs) | 5.29 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
HACCP Food Safety Programme - Europe
FR - DTA 14.1/12-1811_V3 EuroPipe
AUS - WMKT00204 - 24
NO - 0692-22 EuroPipe Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains Lloyds Register LR22419510TA RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 ABS - LD1716353-PDA MARINE - R4547 NATO CODIFICATION SYSTEM
